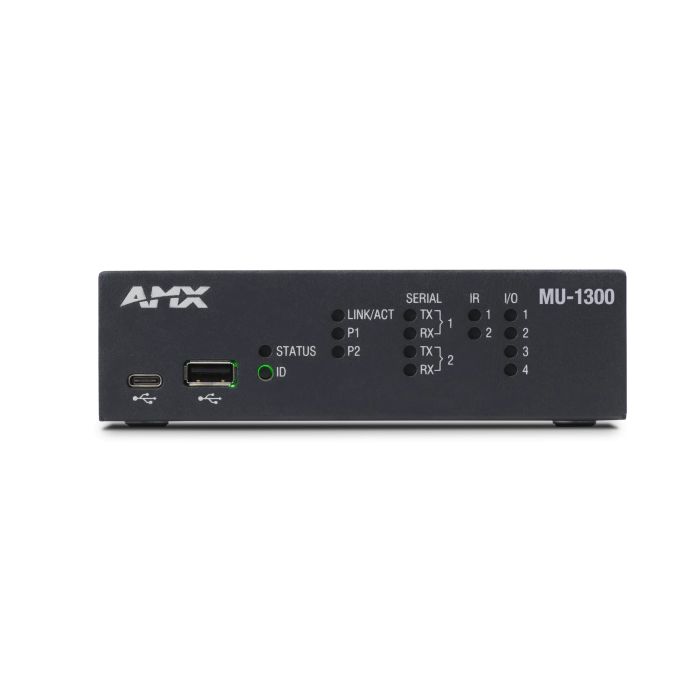

AMX MU-1300 AMX MUSE Controller with 2 Serial, 2 IR, 4 IO
Description
AMX MU-1300 AMX MUSE Controller with 2 Serial, 2 IR, 4 IO
The AMX MU-1300 is a compact 1 RU control processor built for live-sound and AV installations where reliable multi-device coordination matters. Its 1/3 rack width form factor slots into tight racks without eating real estate, while delivering the processing muscle and connectivity depth needed to manage complex lighting, amplification, switching, and automation chains in performance and venue environments. This unit bridges multiple communication protocols seamlessly, making it essential for sound engineers and install teams running coordinated device management across serial, IR, and digital I/O networks.
Connectivity & Control Architecture
The MU-1300 provides comprehensive multi-protocol connectivity through dual RS-232/RS-422/RS-485 serial ports, 2 dedicated IR/Serial ports, and 4 digital I/O ports, all terminated with industry-standard mini-Phoenix connectors. A 1 LAN Ethernet port and integrated FLIRC IR receiver enable remote control and network integration, while USB-A host ports support additional periphery expansion when required.
Processing Power & Operational Intelligence
Built on a secure Linux platform, the processor runs 4 GB DDR3 RAM and 8 GB eMMC non-volatile storage to execute sophisticated control scripts and automation routines without sacrificing stability or security. The included status LEDs, programmable script LEDs, and per-port activity indicators provide real-time visibility into system operation and troubleshooting during commissioning and live deployment.
Key Features
- 1 RS-232/RS-422/RS-485 serial port and 1 RS-232-only serial port
- 2 IR/Serial ports for flexible device control
- 4 digital I/O ports for triggering and monitoring
- 1 LAN Ethernet port for network connectivity
- FLIRC integrated IR receiver
- USB-A host ports for expanded connectivity
- 4 GB DDR3 RAM and 8 GB eMMC non-volatile memory
- Mini-Phoenix connectors for all serial, I/O, and IR connections
- 12V DC power input
- Secure Linux-based processing platform
- Status LEDs with programmable script and port activity indicators
- 1 RU, 1/3 rack width form factor (1 11/16" × 5 13/16" × 5 1/8")
The AMX MU-1300 delivers reliable, scalable control processing for professional installations demanding multi-protocol device synchronization and programmable automation in a space-efficient package.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX MU-1300 is a compact 1 RU control processor that orchestrates complex AV and live-sound installations through dual serial ports, IR control, and programmable I/O—essential for venues and touring setups that need coordinated device management across multiple protocols. Designed for installation professionals and sound engineers running permanent or temporary systems, it delivers rock-solid Linux-based processing with real-time status monitoring and script automation to keep your entire rig responding predictably night after night. Choose it when your installation or live-sound rig requires seamless bridging between legacy serial devices, modern networked gear, and manual IR triggers without dedicated staff managing each link.
Who This Is For
Great for
- ✓ installation audio
- ✓ live sound control
- ✓ AV system integration
- ✓ studio automation
Not the best pick for
- – performance
- – practice
Skill level: Professional
Frequently Asked Questions
What protocols and connection types does the MU-1300 support?
The MU-1300 offers dual RS-232/RS-422/RS-485 serial ports, 2 dedicated IR/Serial ports, 4 digital I/O ports, 1 LAN Ethernet port, an integrated FLIRC IR receiver, and USB-A host ports. All serial, I/O, and IR connections use mini-Phoenix connectors for reliable field termination.
Is the MU-1300 suitable for small installations or mobile/touring systems?
Yes. Its compact 1 RU, 1/3 rack-width form factor (1 11/16" × 5 13/16" × 5 1/8") fits efficiently into tight rack spaces and travels well in touring rigs. The secure Linux platform with 4 GB RAM and 8 GB eMMC storage handles sophisticated automation routines without compromise.
Can I monitor what the MU-1300 is doing in real time?
Yes. Status LEDs, programmable script indicators, and per-port activity lights provide real-time visibility into system operation during commissioning and live deployment, making troubleshooting straightforward.
What is the MU-1300 designed to control?
It orchestrates professional AV systems, live-sound rigs, and studio automation by bridging multiple device protocols—serial-controlled processors, IR-based equipment, networked devices, and digital trigger sources—under a single programmable control schema.
