BSS BLUCARD-OUT I/O card
- Brand new in original box
- Full BSS manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- BSSBLUCARDOUT-M
Description

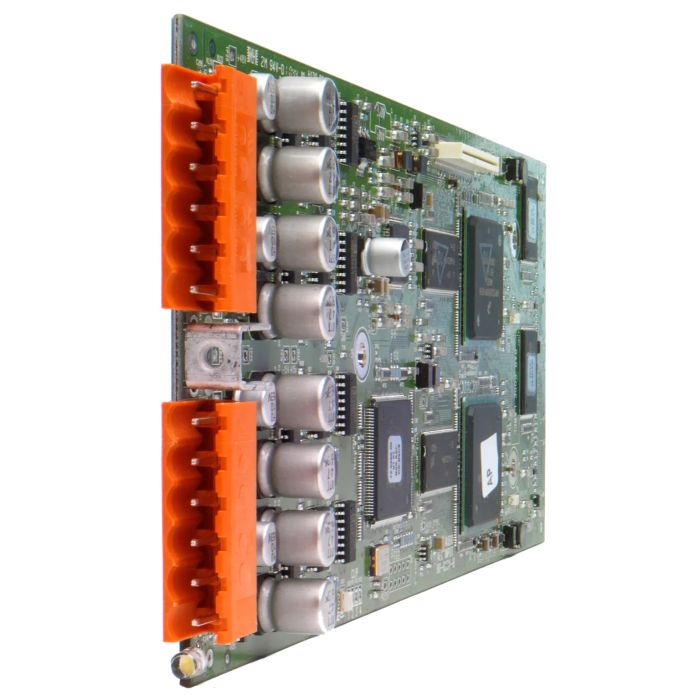

BSS BLUCARD-OUT I/O Card
The BSS BLUCARD-OUT is a dedicated analog output expansion card engineered for Soundweb London BLU series processors. This card slots directly into any of the four available card positions, delivering professional-grade balanced audio outputs with minimal latency and exceptional signal integrity. Built for live sound applications and installed systems where reliable multi-channel audio distribution is essential.
Audio Output Performance
The card delivers up to four channels of balanced/unbalanced audio output via removable Phoenix/Combicon screw connectors, with a maximum output level of +19dBu. Measured performance includes 108dB typical dynamic range, less than 0.01% THD across the audio spectrum, frequency response of 20Hz–20KHz (+0.5dB/−1dB), and crosstalk below −75dB—specifications that keep your signal clean and transparent whether you're routing to monitor mixes, main outputs, or aux sends in a venue environment.
Integration & Compatibility
Designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16 devices, this card integrates seamlessly into BSS's modular ecosystem. Low D/A latency of 0.58ms at 48kHz and 0.29ms at 96kHz means real-time audio distribution without the delay that can wreak havoc on live mixing.
Key Features
- Four channels of balanced/unbalanced analog audio output
- Two Combicon connectors with removable screw terminals
- Maximum output level: +19dBu
- Output impedance: 40 Ohms balanced, 20 Ohms unbalanced
- Frequency response: 20Hz–20KHz (+0.5dB/−1dB)
- THD: Less than 0.01% (20Hz to 20KHz, +10dBu output)
- Dynamic range: 108dB typical, 22Hz–22KHz unweighted
- Crosstalk: Less than −75dB
- D/A latency: 0.58ms at 48kHz, 0.29ms at 96kHz
- Compatible with all Soundweb London BLU series processors
The BLUCARD-OUT offers professional analog audio expansion with the signal quality and integration that BSS systems demand—a reliable foundation for any sound operator's mixing setup.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The BSS BLUCARD-OUT is a four-channel analog output expansion card that slots into any Soundweb London BLU series processor to distribute clean, low-latency audio signals across installed sound systems and live venues. Built for sound engineers and system integrators who need transparent signal routing with minimal delay, it delivers professional-grade balanced outputs with 108dB dynamic range and virtually inaudible distortion. Choose this card when your BLU processor needs reliable multi-channel audio expansion without compromising signal integrity on a gig or in a permanent installation.
Who This Is For
Great for
- ✓ installed audio systems
- ✓ live sound reinforcement
- ✓ system integration
Not the best pick for
- – consumer home audio
- – portable applications
Skill level: Professional
Frequently Asked Questions
Which Soundweb London BLU processors does this card fit?
The BLUCARD-OUT is compatible with all Soundweb London BLU series models, including BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32, and BLU-16. It slots into any of the four available card positions on these devices.
How many outputs does this card provide and what are the connectors?
The card delivers four channels of balanced/unbalanced analog audio output via two Combicon screw connectors with removable terminals. Maximum output level is +19dBu with 40 Ohms output impedance for balanced connections.
What latency should I expect?
D/A latency is 0.58ms at 48kHz and 0.29ms at 96kHz—fast enough for real-time audio distribution and live sound without perceptible delay. Frequency response spans 20Hz–20kHz with less than 0.01% THD, ensuring transparent signal integrity.
Is this card suitable for live sound applications?
Yes, the card is engineered specifically for installed audio systems and live sound reinforcement. Its low latency, high dynamic range (108dB), and crosstalk rejection below −75dB make it ideal for demanding venue and system integration work.
