BSS EC-8BV-BLK-US Ethernet Controller
- Brand new in original box
- Full BSS manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- BSSEC8BV-BLK-M
Description

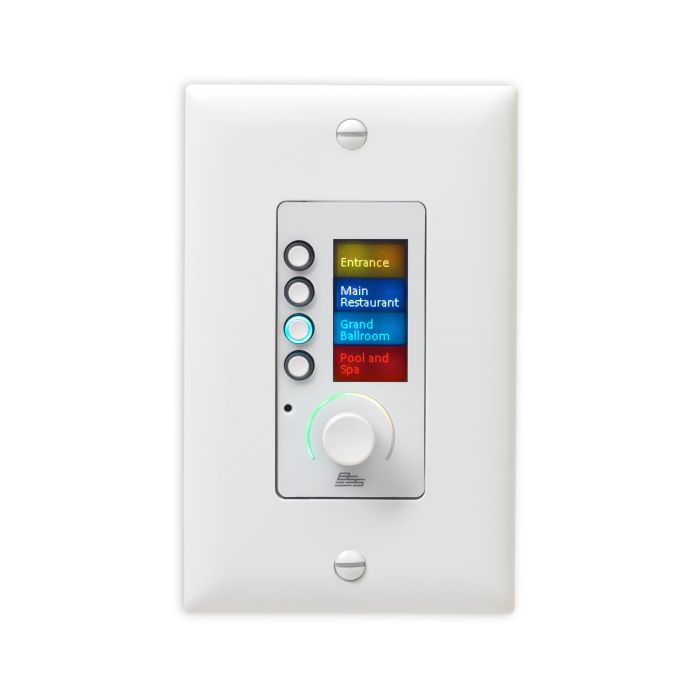

BSS EC-8BV-BLK-US Ethernet Controller
The BSS EC-8BV-BLK-US is a professional networked control surface built for venues, studios, and touring rigs where remote device management and real-time monitoring keep your sound running tight. This dual-gang wall-mount controller fits standard US Decora plates and puts tactile command right where you need it—dual LCD displays and multi-color illuminated controls deliver instant visual feedback and command response in any lighting condition. Designed for the durability and reliability that live sound operators depend on, it combines hands-on hardware control with flexible Ethernet-based connectivity for managing multiple networked audio and AV devices.
Network Integration & Power
A single Ethernet port handles configuration, control, monitoring, and power delivery via PoE, cutting cable runs and simplifying your install. The controller operates on 44–57VDC at 13W maximum consumption, and supports standard Ethernet cable runs up to 328 feet (100 meters) with VW-1 rated, 48VDC cable—ideal for reaching devices across a large venue or installed system without signal degradation.
Control & Display Hardware
Eight tactile buttons, one push/rotary encoder with illuminated ring, and dual 64x128 pixel LCD screens put comprehensive control and status feedback in your hands. All interactive elements feature multi-color backlighting with 8 selectable colors and adjustable intensity, so you read device states clearly on dark stages, in bright rooms, or anywhere in between—critical for keeping tabs on networked gear during live shows and events.
Key Features
- Single Ethernet port for PoE-powered configuration, control, and monitoring
- Power consumption: 300mA max at 48VDC
- Required power: 44–57VDC, 13W (certified PoE power adaptor)
- Maximum network cable length: 328 feet (100 meters)
- Recommended Ethernet cable: VW-1 rated, 48VDC, 13W
- Eight illuminated buttons
- One push/rotary encoder with multi-color backlit ring
- Two 64x128 pixel LCD screens with multi-color backlighting
- 8 different backlight colors with adjustable intensity for buttons, encoder ring, and displays
- Dual-gang US Decora form factor in black
- Operating temperature range: 0° to 45°C (32° to 113°F)
The EC-8BV-BLK-US delivers pro-grade networked control in a compact, wall-mountable chassis built for live venues, fixed installations, and touring operations where Ethernet infrastructure and dependable remote command are non-negotiable.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The BSS EC-8BV-BLK-US is a professional Ethernet-based control surface that mounts into standard US wall plates, managing AV and audio systems remotely across networked infrastructure. Built for live-sound venues, installed systems, and studios requiring reliable multi-device control, it combines eight illuminated buttons, dual LCD displays, and a rotary encoder for intuitive hands-on operation. Choose it when you need rock-solid command over networked gear from a fixed control point—powered entirely over a single Ethernet cable with zero separate power runs.
Who This Is For
Great for
- ✓ AV installations
- ✓ Commercial audio systems
- ✓ Live sound control
- ✓ Studio monitoring systems
Not the best pick for
- – Portable/mobile applications
- – Venues without Ethernet infrastructure
Skill level: Professional
Frequently Asked Questions
What does PoE power mean, and do I need a separate power supply?
PoE (Power over Ethernet) delivers power through the Ethernet cable itself, so a single standard Ethernet run handles all configuration, control, and power in one connection. You'll need a certified PoE power adaptor (44–57VDC, 13W) to inject power into the line, but no separate power cable runs to the controller.
How far can I run the Ethernet cable from my main system?
Standard Ethernet cable runs up to 328 feet (100 meters) are supported, using VW-1 rated cable rated for 48VDC. This allows flexible placement of the controller away from central equipment racks.
Will this mount into a standard wall outlet?
Yes, the controller uses a dual-gang US Decora form factor and fits seamlessly into standard US wall plates, making it ideal for permanent AV and audio installations.
What control options does it offer?
The controller features eight illuminated tactile buttons, one push/rotary encoder with multi-color backlit ring, and two 64x128 pixel LCD screens—all with 8 selectable backlight colors and adjustable intensity for clear status feedback in any lighting condition.
Is this suitable for portable or outdoor use?
No—this is designed for fixed installations with existing Ethernet infrastructure. It requires permanent wall mounting and networked audio/AV systems and is not intended for mobile or portable applications.
