Cinema HBD9320 S/m, 9320
- Brand new in original box
- Full Cinema manufacturer's warranty
- Free shipping in the continental US
In stock
- SKU
- HPD9320
Description

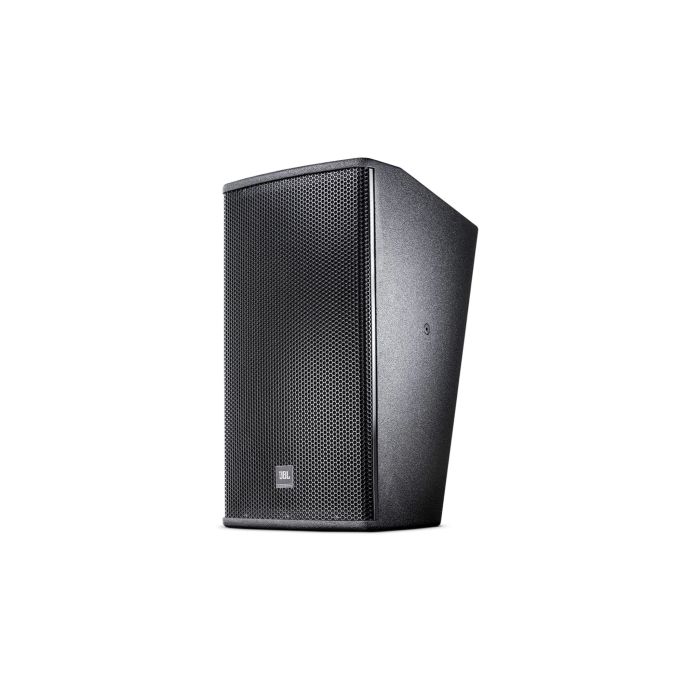

JBL Cinema HBD9320 S/M Surround Speaker
The HBD9320 is a professional cinema surround speaker engineered for controlled, directional sound reproduction in medium to large installations. Its compact footprint and rotatable waveguide make it equally suited to permanent theater deployments or portable touring rigs that demand precision surround coverage without sacrificing punch.
Design & Build Quality
The cabinet is constructed from heavily braced multi-ply birch with a durable DuraFlex™ finish that resists cosmetic wear in demanding environments. Multiple M-10 threaded mounting points provide flexible installation options for wall, ceiling, or rigging applications, while the rotatable waveguide allows vertical or horizontal orientation to match your acoustic geometry.
Audio Performance
This 2-way design pairs a 300mm (12") low-frequency driver with a 2408H-1 38mm (1.5") voice coil compression driver to deliver articulate midrange and extended bass reach. With a frequency response of 35 Hz to 20 kHz, 98 dB SPL sensitivity, and 400 watts continuous power handling, the HBD9320 produces theater-grade output with minimal amplifier demand and controlled 120° × 60° coverage that prevents unwanted reflections in adjacent spaces.
Key Features
- 2-way full-range surround speaker design
- 300mm (12") low-frequency driver
- 2408H-1 38mm (1.5") voice coil compression driver
- Frequency range: 35 Hz to 20 kHz
- Sensitivity: 98 dB SPL, 1W @ 1m
- Power handling: 400 watts continuous pink noise
- Coverage pattern: 120° × 60°
- Rotatable waveguide for vertical or horizontal mounting
- Multi-ply birch enclosure with DuraFlex™ finish
- Multiple M-10 threaded mounting points
- Net weight: 38.5 lbs
The HBD9320 delivers the controlled directivity and efficiency required for professional cinema and live-sound surround applications where precision, reliability, and thermal headroom matter equally.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Cinema HBD9320 S/M is a professional 2-way surround speaker built for live touring and permanent installations where precision directivity and reliable output are non-negotiable. Its 12-inch woofer and compression driver deliver theater-grade punch with extended bass reach and controlled 120° × 60° coverage that prevents bleed into adjacent zones—ideal for touring rigs, festival deployments, and venue installs where you need punch without excessive amplifier demand. Choose it for the compact footprint, rotatable waveguide, and heavy-duty birch construction that stands up to road wear while maintaining sonic clarity night after night.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Touring
Not the best pick for
- – Practice
- – Home Recording
Skill level: Professional
Frequently Asked Questions
What is the HBD9320 designed for?
The HBD9320 is a professional cinema surround speaker built for live-sound touring, permanent theater installations, and mix-critical surround monitoring in large professional facilities. Its controlled 120° × 60° directivity pattern and compact footprint make it ideal for deployments where precision coverage and minimal adjacent-space bleed are critical.
What drivers and frequency response does it have?
The HBD9320 pairs a 300mm (12-inch) low-frequency driver with a 2408H-1 38mm (1.5-inch) voice coil compression driver, delivering frequency response from 35 Hz to 20 kHz with 98 dB SPL sensitivity at 1 watt at 1 meter. It handles 400 watts continuous power and produces theater-grade output with minimal amplifier demand.
How is it mounted and what is its build quality?
The HBD9320 features a heavily braced multi-ply birch enclosure with DuraFlex™ finish for durability in touring and permanent installations. It includes multiple M-10 threaded mounting points for wall, ceiling, or rigging applications, and a rotatable waveguide that allows vertical or horizontal orientation to match your acoustic geometry.
Is the HBD9320 suitable for home studio or small-room use?
No—the HBD9320 is engineered for professional cinema, touring, and large-venue applications where controlled directivity and efficient, high-output surround coverage are the priority. It is not designed for home recording, practice spaces, or intimate mixing environments.
