What cable type and length does the ZC1 require?

The ZC1 connects via two RJ-45 connectors using CAT5 or CAT5E cabling rated VW-1 or higher (nominal 28.6 Ohm/M DCR). Maximum cable runs are 600 feet with 3 controllers, 300 feet with 6 controllers, or 1000 feet when using up to 6 units with parallel wiring via the ZC-BOB adapter.

Can I use multiple ZC1 controllers in one system?

Yes, the ZC1 supports up to 6 controllers in a single installation. DIP switches allow you to identify and configure each unit, and you can extend cable runs and add parallel wiring support using the optional ZC-BOB adapter.

What control options does the ZC1 offer?

The ZC1 features a programmable rotary potentiometer for smooth volume control across zones and DIP switches for quick identification and configuration without complex setup procedures.

What safety and compliance standards does the ZC1 meet?

The ZC1 is UL 60065 and IEC 60065 certified and complies with EN 55013 and E60065 standards, ensuring it meets professional audio installation safety and emissions requirements.

Is the ZC1 suitable for both live and studio use?

Yes, the ZC1 is designed for live venues, studios, and installed systems. Its wall-mounted form factor, responsive controls, and multi-zone scaling make it equally at home in a live-sound environment or a multi-room studio setup.

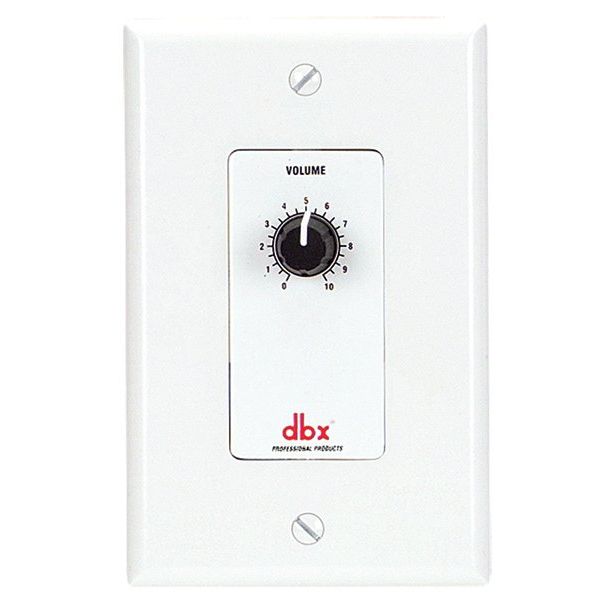

dbx ZC1 Wall-Mounted Zone Controller

The dbx ZC1 puts responsive, intuitive command of your audio environment right at your fingertips, delivering the tactile control that professional installations demand. Its streamlined wall-mounted design integrates seamlessly into live venues, studios, and installed systems, allowing real-time zone management with immediate feedback. Built for sound operators and venue managers who value both functionality and reliability, this controller transforms zone management into a dependable and precise part of your workflow.

Installation & Connectivity

The ZC1 connects via two RJ-45 connectors using CAT5 or CAT5E cable (rated VW-1 or higher, with 28.6 Ohm/M nominal DCR). Maximum cable runs depend on your configuration: up to 600 feet with 3 controllers, 300 feet with 6 controllers, or 1000 feet when using up to 6 units with parallel wiring via the ZC-BOB adapter—giving you flexibility for installations of any scale.

Control & Configuration

A programmable rotary potentiometer provides smooth, responsive volume control across zones, while DIP switches enable quick identification and configuration of multiple controllers without complex setup procedures. This combination ensures straightforward deployment in multi-zone environments while maintaining the precision adjustments venue operators and system technicians rely on.

Key Features

Two RJ-45 connectors for network integration
Programmable rotary potentiometer volume control
DIP switches for controller identification and configuration
Supports up to 6 controllers with parallel wiring via ZC-BOB adapter
Maximum cable length: 600 feet (3 controllers), 300 feet (6 controllers), or 1000 feet (6 with ZC-BOB)
Compatible with CAT5 or CAT5E cabling (28.6 Ohm/M nominal DCR, VW-1 rated or higher)
UL 60065 and IEC 60065 certified
EN 55013 and E60065 compliant
Wall-mounted form factor for integrated installation

The dbx ZC1 combines straightforward connectivity, flexible multi-unit scaling, and reliable performance standards—making it an essential control point for any professional zone-based audio system.

Condition	New
Country of Manufacture	China
