dbx ZC2 Wall-Mounted Zone Controller
Description
dbx ZC2 Wall-Mounted Zone Controller

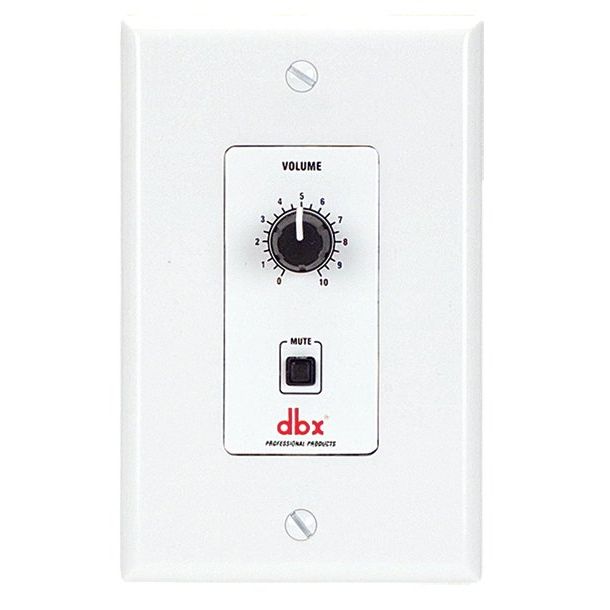

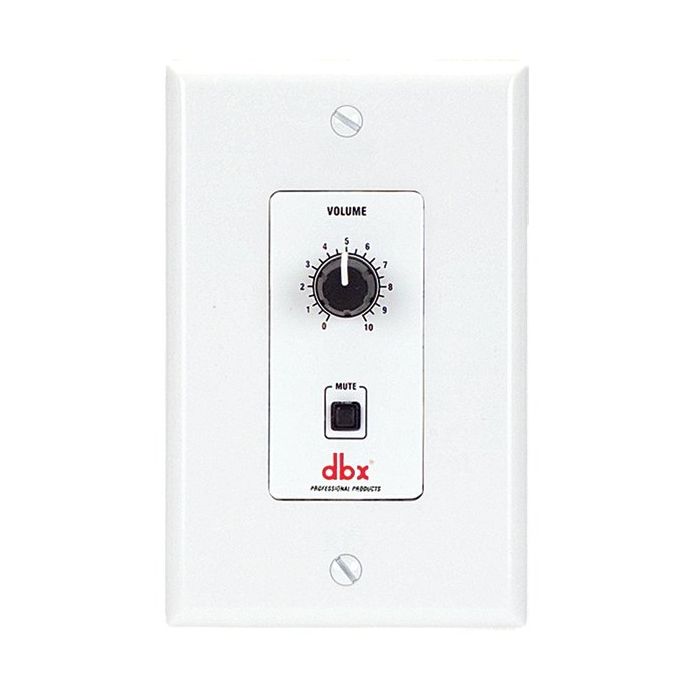

The dbx ZC2 is a compact wall-mounted control interface built for tight integration into multi-zone audio systems. Its slim profile and intuitive front-panel layout put responsive, hands-on management of zone-level parameters right where you need it—eliminating the need to run back to a central rack to adjust levels or mute a zone during live performance or event setup.
Control Interface & Connectivity
The ZC2 features a rotary volume potentiometer and push-button mute control for direct manipulation of audio levels and muting. Two RJ-45 connectors using standard CAT5 cable handle all signal routing, with a maximum cable run rated to 1,000 feet—letting you deploy control points across large venues or installations without signal degradation or complexity.
Installation & System Integration
DIP switches onboard allow straightforward device identification and configuration within multi-zone setups. The ZC2 is fully compatible with dbx DriveRack 260, DriveRack 220i, and ZonePRO devices, integrating directly into established dbx audio management systems for reliable, trouble-free operation in demanding venues and installations.
Key Features
- Rotary volume potentiometer for analog level control
- Push-button mute control
- Two RJ-45 connectors
- CAT5 cable connectivity with standard RJ-45 termination
- Maximum cable run up to 1,000 feet
- DIP switches for device identification and configuration
- Wall-mounted form factor
- Compatible with dbx DriveRack 260
- Compatible with dbx DriveRack 220i
- Compatible with dbx ZonePRO devices
- Package weight: 0.45 lb
- Box dimensions: 6.9 x 5.55 x 3.5 inches
The ZC2 delivers straightforward zone-level control for live and installed systems that demand reliability, extended cable runs, and quick access to critical audio parameters.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The dbx ZC2 is a wall-mounted zone controller that puts hands-on volume and mute control directly where your audience and staff need it—no trips back to the rack. Built for venues, churches, conference rooms, and installed sound systems, it connects via standard CAT5 cable up to 1,000 feet away, making it ideal for multi-zone facilities where you need independent control at different locations. Pair it with dbx DriveRack or ZonePRO systems for rock-solid, professional-grade audio management that just works.
Frequently Asked Questions
What systems is the ZC2 compatible with?
The ZC2 integrates directly with dbx DriveRack 260, DriveRack 220i, and ZonePRO devices. It communicates via CAT5 cabling using standard RJ-45 connectors.
How far away can I mount the ZC2 from my main audio system?
The ZC2 supports cable runs up to 1,000 feet using standard CAT5 cable, making it suitable for large facilities, multi-floor buildings, or distributed venue installations.
What controls does the ZC2 provide?
It offers a rotary volume potentiometer for analog level adjustment and a push-button mute control for direct manipulation of zone audio levels.
Do I need special cables or connectors?
No—the ZC2 uses two standard RJ-45 connectors and regular CAT5 cabling, which are widely available and easy to install in any facility.
How do I set up multiple ZC2 controllers in one system?
Onboard DIP switches allow straightforward device identification and configuration, so you can assign each controller to the correct zone in your multi-zone audio system.
