What cable types and distances does the ZC7 support?

The ZC7 works with CAT5 or CAT5E parallel wiring cable rated at 28.6 Ohm/M nominal DCR, VW-1 rated or higher. You can run up to 1000 feet with six Zone Controllers in parallel configuration, or longer distances with fewer controllers in series arrangements.

What connectivity does the ZC7 provide?

Two RJ-45 connectors enable connection to processing devices via standard networking infrastructure, supporting integration into larger distributed audio systems and conferencing facilities.

Is the ZC7 suitable for portable or live sound applications?

No; the ZC7 is designed for permanent commercial audio installations, multi-zone system control, and networked audio environments. It is not intended for portable live sound or home audio applications.

What safety certifications does the ZC7 hold?

The ZC7 carries UL 60065 safety certification, IEC 60065 international standards compliance, and EN 55013 electromagnetic compatibility certification.

Do I pay sales tax on this order?

Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. Marketplaces collect sales tax as the facilitator in most states, so the same listed price can cost more there. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.

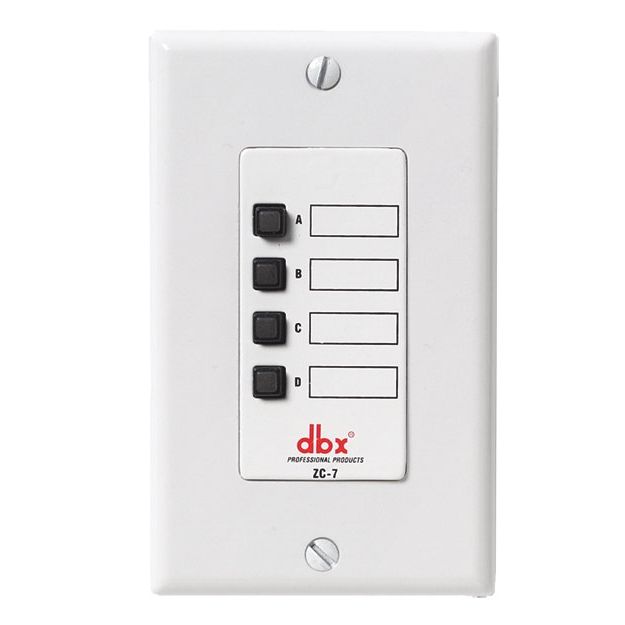

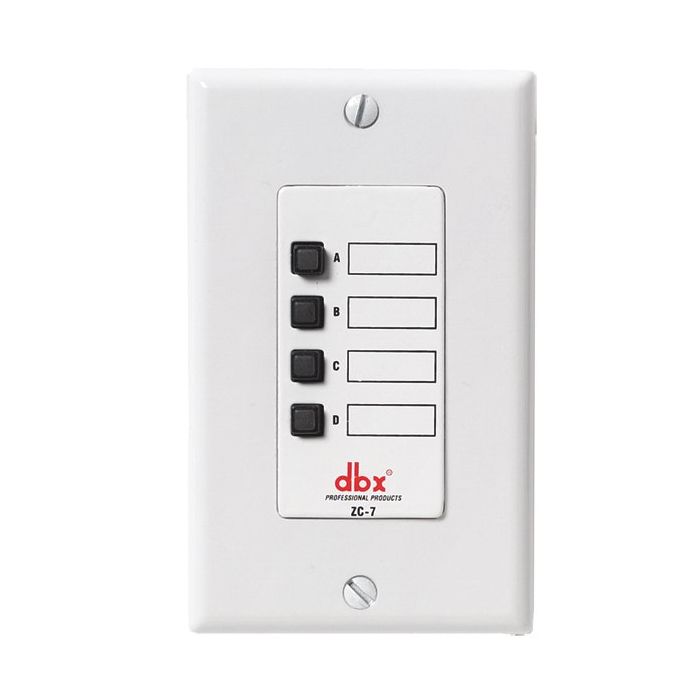

dbx ZC7 Wall Mounted Zone Controller

The dbx ZC7 is a compact wall-mounted control interface built for multi-zone audio system management in live venues, installed installations, and distributed audio rigs. Its straightforward button layout and DIP switch configuration make it intuitive to install and operate within larger networked audio setups. This controller handles zone selection and routing with minimal footprint, making it dependable for venues, conference facilities, and any audio environment that needs reliable zone control without complexity.

Connectivity & Cable Management

Two RJ-45 connectors link to processing devices via standard networking infrastructure. The controller supports CAT5 or CAT5E parallel wiring cable (28.6 Ohm/M nominal DCR, VW-1 rated or higher) with proven cable run lengths: up to 1000 feet for six Zone Controllers in parallel configuration, or longer runs for fewer controllers in series arrangements. Run that cable across the venue with confidence.

Control Interface & Configuration

Four dedicated push-buttons provide direct zone control with integrated label space for custom identification. DIP switches enable device identification and communication protocols with the connected processing unit, allowing flexible assignment within complex system architectures. This combination of physical controls and programmable switching ensures reliable operation across diverse installation scenarios, keeping your zones responsive and stable night after night.

Key Features

Two RJ-45 connectors for processing device integration
Four push-buttons with labeling space for zone identification
DIP switches for device identification and protocol configuration
CAT5/CAT5E compatible with 28.6 Ohm/M nominal DCR rating
Up to 1000 feet parallel wiring distance with six Zone Controllers
Series wiring support with variable cable lengths based on controller quantity
VW-1 rated cable specification for safety compliance
Wall-mounted form factor for space-efficient installation
UL 60065 safety certification
IEC 60065 international standards compliance
EN 55013 electromagnetic compatibility certification

The ZC7 delivers dependable zone control in distributed audio systems where scalability, straightforward configuration, and live reliability matter.

Condition	New
Country of Manufacture	China

Best suited for	commercial audio installation, multi-zone system control, conferencing facilities, networked audio environments
Less specialized for	home audio, portable live sound, personal music production (it will do it; instruments voiced for that style do it more easily)
Skill level	Professional
