dbx ZC8 Wall Mounted Zone Controller
Description
dbx ZC8 Wall-Mounted Zone Controller
The ZC8 mounts flush to any wall with a clean white faceplate, delivering intuitive hands-on control over remote audio zones via simple push-button and rotary selection. Designed for integration with dbx ZonePRO devices, this controller communicates over standard CAT5 cabling at distances up to 1000 feet, making it ideal for live venues, touring rigs, and multi-zone stage setups where immediate local source and volume adjustment keeps your performance locked in.
Network & Installation
Two RJ-45 connectors accept readily available CAT5 or CAT5E cabling, supporting both series wiring (up to 600 ft with three controllers, 300 ft with six) and parallel wiring via optional ZC-BOB (up to 1000 ft with six controllers). Cable must meet 28.6 Ohm/M nominal DCR with VW-1 rating or higher, ensuring reliable signal integrity across extended runs in live and permanent installations.
Control & Configuration
The controller features a programmable push-button up/down volume control and programmable rotary switch for source selection, allowing each zone to be configured independently. DIP switches enable identification and assignment to specific processing devices, so multiple controllers operate flawlessly in the same system without conflict.
Key Features
- Two RJ-45 connectors for CAT5/CAT5E cabling
- Programmable push-button up/down volume control
- Programmable rotary switch source selection
- DIP switches for device identification and assignment

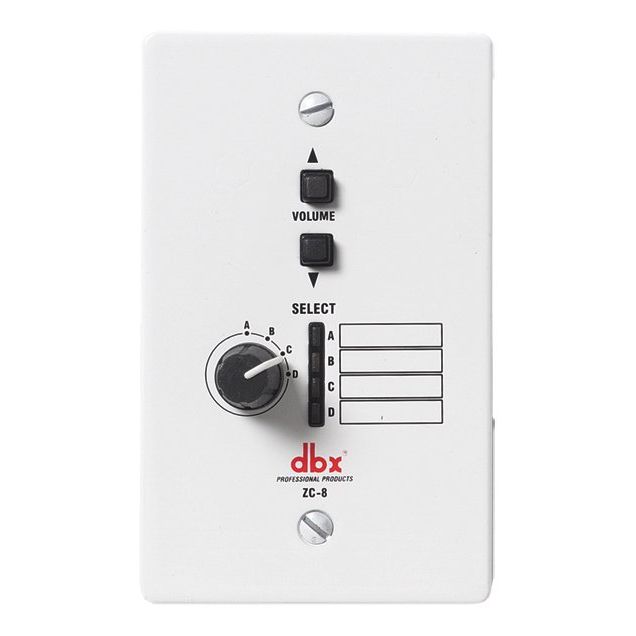

- White faceplate with volume buttons and multi-position selector knob
- Series wiring: 600 ft maximum (3 controllers) or 300 ft (6 controllers)
- Parallel wiring with ZC-BOB: 1000 ft maximum (up to 6 controllers)
- Supports CAT5 or CAT5E cable rated VW-1 or higher
- UL 60065 safety certification
- IEC 60065 safety certification
- EN 55013 compliance
- E60065 certification
The ZC8 delivers reliable zone control for touring and permanent stage audio systems, combining affordable CAT5 infrastructure with dbx processing dependability and straightforward player control.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The dbx ZC8 is a wall-mounted zone controller that gives you hands-on command over multiple audio zones in live venues and distributed systems, communicating with dbx ZonePRO devices over standard CAT5 cabling up to 1000 feet away. Built for touring sound crews and permanent installations, it offers simple push-button volume and rotary source selection with DIP-switch configuration so multiple controllers work seamlessly without interference. Choose it when you need reliable, affordable local control across large venues or multi-room setups without running dedicated analog lines.
Frequently Asked Questions
What devices does the ZC8 control?
The ZC8 integrates with dbx ZonePRO devices and communicates via two RJ-45 connectors over CAT5 or CAT5E cabling. Each controller can be assigned to specific processing devices using DIP switches, allowing multiple controllers to operate in the same system independently.
How far can the ZC8 be installed from the ZonePRO processor?
Maximum distance depends on wiring topology: series wiring supports up to 600 feet with three controllers or 300 feet with six controllers; parallel wiring with an optional ZC-BOB accessory reaches up to 1000 feet with up to six controllers. Cable must meet 28.6 Ohm/M nominal DCR with VW-1 rating or higher.
What controls are available on the ZC8?
The ZC8 features a programmable push-button up/down volume control and a programmable multi-position rotary switch for source selection. Each zone can be configured independently through DIP switches on the back of the unit.
What's included in the box?
The ZC8 includes the wall-mounted controller with a white faceplate, two RJ-45 connectors, and DIP switches for configuration. CAT5/CAT5E cabling and the optional ZC-BOB parallel-wiring adapter are sold separately.
Can I use standard CAT5 Ethernet cable?
Yes, the ZC8 accepts readily available CAT5 or CAT5E cabling rated VW-1 or higher with a nominal DCR of 28.6 Ohm/M. Standard Ethernet cable typically meets these specs, but verify the VW-1 fire rating and resistance specifications before installation.
