What's the difference between this speaker and models like the Bose FreeSpace 3S or Yamaha VXC1W?

The CSS8008 is designed for cost-effective commercial installations with transformer-based 70V/100V distribution, making it simpler to wire across large spaces without a traditional amplifier. It excels in retail and hospitality but is not rated for high-fidelity music or live performance; the Bose and Yamaha models offer higher sound quality and extended frequency response if those are priorities.

Will this work in my office or retail space without extensive wiring?

Yes—the built-in 5W multi-tap transformer connects directly to 100V, 70V, or 25V distributed lines, and the compact 2.9-inch profile fits into standard drop ceilings. Installation is straightforward with an 11.25-inch bolt-mounting pattern and minimal insertion loss (1.5 dB maximum).

What frequency range does it cover, and is it good for speech and background music?

Frequency response is 55 Hz to 16 kHz with the grille, or 100 Hz to 16 kHz with an optional backcan. It's optimized for clear midrange and speech intelligibility, making it ideal for announcements and background music in commercial spaces; it is not designed for extended bass or high-fidelity music reproduction.

How much coverage does the speaker provide in a room?

The 8-inch dual-cone driver delivers 96 dB sensitivity with a 120° conical coverage pattern, providing consistent audio distribution across typical commercial spaces like retail stores, offices, and hospitality venues.

Is this speaker compliant with building codes for commercial installation?

Yes—the CSS8008 meets UL1480, UL2043, NFPA 90, and NFPA 70 standards, and zinc-plated steel backcan options are available for compliance in air handling spaces.

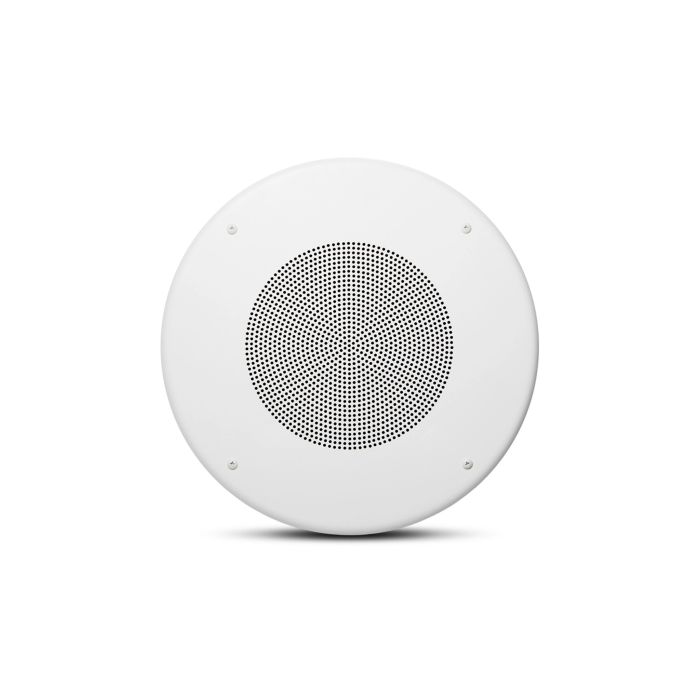

JBL Commercial CSS8008 8" Ceiling Speaker

The CSS8008 is a compact ceiling speaker engineered for live venues, installed sound systems, and performance spaces that need reliable, consistent audio coverage without fuss. Its shallow 2.9-inch profile fits tight ceiling cavities on any tour or permanent install, and the multi-tap transformer handles the voltage flexibility you need in real-world sound systems—100V, 70V, or 25V lines all work straight out of the box.

Coverage & Audio Performance

The 8" dual-cone driver puts out 96 dB sensitivity with a wide 120° conical coverage pattern that spreads sound evenly across typical rooms and venues. Frequency response spans 55 Hz to 16 kHz (standard grille) or 100 Hz to 16 kHz with an optional backcan, giving you intelligible speech and clean music playback in any distributed system without breaking up under live load.

Install & Road Reliability

Built around the integrated 5W multi-tap transformer, the CSS8008 cuts installation time with minimal insertion loss at 1.5 dB maximum. The 11.25-inch bolt pattern and 12.9-inch grille diameter fit standard ceiling breakouts, and optional zinc-plated steel backcans handle UL compliance in air-handling plenums—important for venues and permanent installs where fire safety requirements are non-negotiable.

Key Features

8" dual-cone driver with 15W continuous power handling
96 dB sensitivity
120° conical coverage pattern
5W multi-tap transformer for 100V, 70V, and 25V lines
Frequency range: 55 Hz to 16 kHz (with grille) / 100 Hz to 16 kHz (with backcan)
1-inch diameter voice coil with Kapton coil-former and high-temperature wire
Transformer insertion loss: 1.5 dB maximum
11.25-inch bolt-mounting diameter
2.9-inch depth behind grille
2.8 lbs weight
12.9-inch grille diameter
UL1480, UL2043, NFPA 90 & NFPA 70 compliance with matching backcan

The CSS8008 delivers straightforward wiring, transformer-based line compatibility, and dependable acoustic output for touring rigs and permanent sound systems that can't afford downtime.
