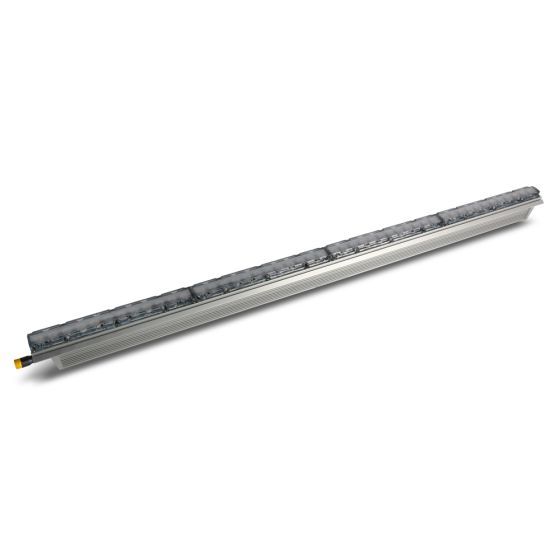

Martin Exterior Linear 1200 RGBW Color Mixing Graze Narrow 10 Degree
The Exterior Linear 1200 Graze is a compact, IP66-rated LED fixture engineered for demanding outdoor architectural lighting applications. Its narrow 12° beam angle and dynamic RGBW color mixing deliver precise, uniform illumination across textured surfaces and linear structures, making it the preferred choice for large-scale graze lighting where output and control matter.
Optical Performance & Control
Equipped with discrete Cree XP-E2 LEDs in Red, Green, Blue, and neutral White, this fixture achieves sophisticated color mixing with 8-bit DMX precision. The narrow 12° beam angle concentrates light output for optimal brightness on distant surfaces, ideal for grazing architectural details with maximum visual impact.
Installation & Power Infrastructure
The integrated universal power supply eliminates external control boxes—the fixture connects directly to line voltage and DMX via a single hybrid connector. Long fixture runs up to 100 feet at 230V are supported, and the hinged mounting bracket accommodates flexible installation angles on walls and linear structures.
Key Features
- Dynamic color mixing with discrete Red, Green, Blue, and neutral White Cree XP-E2 LEDs
- Narrow 12° beam angle for graze lighting applications
- IP66 outdoor-rated housing
- Maximum power consumption: 20 W/ft
- Integrated universal power supply with direct line voltage connection
- Combined power and data hybrid connector for daisy-chain installation
- Supports long fixture runs up to 100 feet at 230V
- DMX control with 8-bit color channels and 0–100% intensity adjustment
- Remote Device Management (RDM) for remote settings and diagnostics
- Smart magnetic tool for local status information
- Hinged mounting bracket for flexible positioning
- Dimensions: 1219 mm L × 72 mm W × 99 mm H; Weight: 6.0 kg (Part Number 90356986)
The Exterior Linear 1200 combines rugged construction, low power draw, and sophisticated control into a fixture that scales seamlessly across large architectural installations without infrastructure overhead.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Martin Exterior Linear 1200 RGBW is a compact, IP66-rated LED graze fixture built for outdoor architectural lighting on buildings, landscapes, and large structures. It delivers narrow 12° beam precision with full RGBW color mixing via DMX control, making it ideal for venue lighting designers and production teams who need reliable, weather-sealed fixtures for long exterior runs. Choose it for its integrated power supply, daisy-chain capability up to 100 feet, and sophisticated color control that transforms architectural details into dynamic visual statements.
Frequently Asked Questions
What is the beam angle and how does it affect the lighting output?
The fixture features a narrow 12° beam angle designed specifically for graze lighting applications. This concentrated beam focuses light output for maximum brightness on distant surfaces and textured architectural details, delivering precise illumination across linear structures.
How does the integrated power supply simplify installation?
The integrated universal power supply eliminates the need for external control boxes. The fixture connects directly to line voltage and DMX data through a single hybrid connector, and supports long daisy-chain runs up to 100 feet at 230V, reducing infrastructure complexity on large installations.
What color mixing capabilities does this fixture have?
The fixture uses discrete Cree XP-E2 LEDs in Red, Green, Blue, and neutral White channels with 8-bit DMX precision. This allows sophisticated full-color mixing and 0–100% intensity adjustment for dynamic color control and smooth transitions.
Is this fixture suitable for outdoor use?
Yes, the fixture is IP66-rated, meaning it is fully sealed against dust and powerful water jets, making it engineered for demanding outdoor architectural lighting applications with reliable long-term weather protection.
What are the power specifications and consumption?
Maximum power consumption is 20 W/ft. The fixture integrates a universal power supply for direct line voltage connection and supports fixture runs up to 100 feet at 230V with a single hybrid connector for both power and DMX data.
