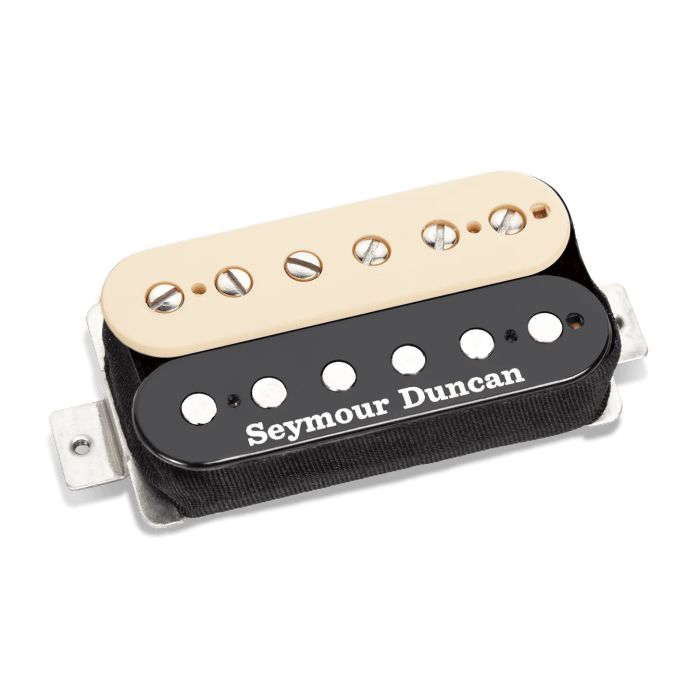

Seymour Duncan 78 Model Neck Zebra Pickup

Seymour Duncan '78 Model Neck Zebra Pickup

The '78 Model Neck delivers the warm, articulate character that defined vintage humbucker tone. This Alnico 2-equipped pickup sits comfortably in the neck position, providing smooth sustain and vocal midrange response without excessive output. The distinctive zebra coil pattern marks this as an authentic Seymour Duncan classic.

Tone & Output Characteristics

Rated at 7.9k ohms DCR, this pickup produces a balanced output that responds naturally to pick dynamics while maintaining clarity across the frequency spectrum. Alnico 2 magnets yield a naturally compressed, singing quality ideal for blues, classic rock, and jazz applications where articulation matters as much as sustain.

Installation & Wiring

This neck-position humbucker features standard 50mm spacing, fitting virtually any humbucker-routed guitar with industry-standard hole placement. The 4-conductor shielded cable enables coil-tapping or series/parallel wiring options for tonal flexibility in the studio or on stage.

Key Features

• DCR: 7.9k ohms — balanced, responsive output
• Magnet: Alnico 2 — warm, natural compression and vocal midrange
• Magnet Type: Passive
• Spacing: Standard 50mm (humbucker)
• Cable: 4-conductor shielded
• Coil Pattern: Zebra — traditional aesthetic with no branding
• Finish: Lightly waxed
• Position: Neck

The '78 Model Neck remains a reliable choice for gigging musicians and players seeking authentic vintage humbucker performance without modern high-output aggression.
