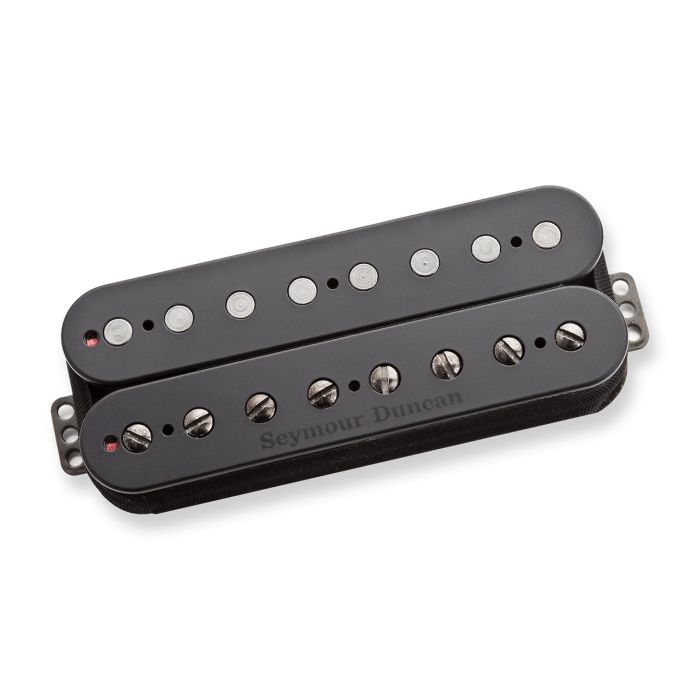

Seymour Duncan 8-String Nazgûl Bridge, Passive Mount, Matte Black Pick

Seymour Duncan 8-String Nazgûl Bridge, Passive Mount, Matte Black Pickup

The Nazgûl 8-String Bridge delivers aggressive, articulate response across extended-range tunings with tight low-end definition and controlled high-frequency clarity. This passive humbucker excels in bridge position applications where clarity and sustain matter equally, making it a trusted choice for metal and progressive players pushing eight-string instruments to their limits.

Tone & Electronics

A 18.76 kΩ DC resistance and 3.85 kHz resonant peak create a focused midrange attack with pronounced string separation—essential for tracking individual voices in extended-range tunings. The 5/9/8 EQ voicing (bass/mid/treble) emphasizes a tight low end while maintaining definition in the mids and presence in the highs, ideal for downtuned, djent-oriented applications.

Design & Build

Vacuum wax potting eliminates microphonic feedback and squeal, a critical feature for high-gain applications and extended-range work. Hand-built in the Santa Barbara factory with a ceramic bar magnet and nickel silver bottom plate, this pickup combines durability with refined magnetic characteristics for transparent, responsive performance.

Key Features

• DC Resistance: 18.76 kΩ
• Resonant Peak: 3.85 kHz
• EQ Profile: 5 Bass / 9 Mid / 8 Treble
• Ceramic bar magnet
• Nickel silver bottom plate
• Four-conductor cable for coil-splitting compatibility
• Vacuum wax potted for squeal-free operation
• Matte black metal cover
• Bridge position configuration
• Hand built in Santa Barbara, CA

The Nazgûl 8-String Bridge combines Seymour Duncan's proven manufacturing standards with a voicing tailored specifically to eight-string dynamics, delivering the aggression and clarity modern extended-range instruments demand.
