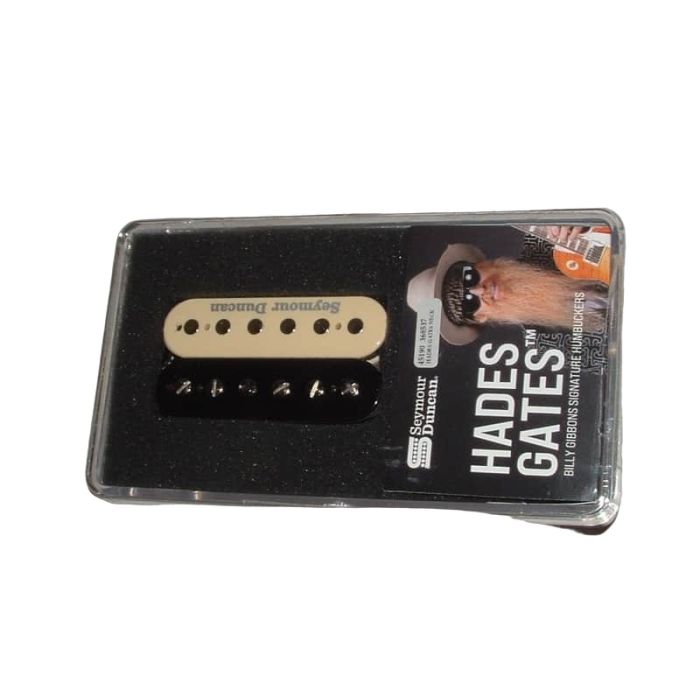

Seymour Duncan Hades Gates Neck Zebra Pickup

Seymour Duncan Hades Gates Neck Zebra Pickup

The Seymour Duncan Hades Gates Neck Zebra delivers articulate, controlled aggression without sacrificing clarity in the neck position. Built with Alnico II magnets and designed specifically for neck-position dynamics, this humbucker excels at cutting through dense mix situations while maintaining tight low-end definition. The zebra coil configuration and 4-conductor wiring offer maximum versatility for both split and series/parallel operation.

Specifications & Construction

This dual-coil humbucker carries a DC resistance of 8.90 kOhm, positioning it in the medium-output range ideal for neck applications. The Alnico II magnet structure provides responsive dynamics and natural breakup characteristics. Short mounting legs ensure flush installation in standard Gibson-style cavities, while the 4-conductor shielded cable enables wiring flexibility across various guitar configurations.

Tone & Performance

Alnico II construction yields a balanced frequency response with articulate highs and defined mids—essential for a neck pickup that maintains separation rather than mud. The medium output preserves note definition and touch sensitivity while delivering enough gain to complement aggressive bridge pickups. This pickup responds well to both clean and overdriven applications, adapting to playing dynamics without losing tonal character.

Key Features

• Type: Humbucker, Dual Coil
• DC Resistance: 8.90 kOhm
• Magnet Material: Alnico II
• Output: Medium
• Connection: 4-Conductor Shielded
• Mounting: Short mounting legs (Gibson-style)
• Coil Configuration: Zebra
• Handmade in Santa Barbara, California

The Hades Gates Neck represents Seymour Duncan's commitment to professional-grade components, combining proven magnet technology with versatile wiring options for players demanding clarity and control in the neck position.
