Is this a true single-coil or humbucker?

It's a true single-coil pickup voiced with boosted output, not a humbucker. It delivers single-coil articulation and clarity while offering more output than a vintage single-coil, bridging the tonal gap between single-coil snap and humbucker level.

What position does this pickup go in?

This is a bridge or lead-position pickup only. It is not designed for neck or middle positions.

What tone should I expect?

Expect a bright, presence-focused voice with a 6.63 kHz resonant peak that emphasizes treble and upper midrange. The EQ rating of 5/5/7 (Bass/Mid/Treble) delivers a lean, cutting character ideal for country, fusion, and lead work where note definition is paramount.

Will this pickup feedback on stage or in the studio?

No. Wax potting formulation, a copper-plated steel bottom plate, and symmetrically staggered pole pieces eliminate microphonic feedback while maintaining classic tonal stability.

What magnet type and DC resistance does it have?

The pickup uses Alnico 2 rod magnets with a 7.8 kΩ DC resistance, delivering the warm harmonic character of Alnico magnets paired with articulate, single-coil-defined output.

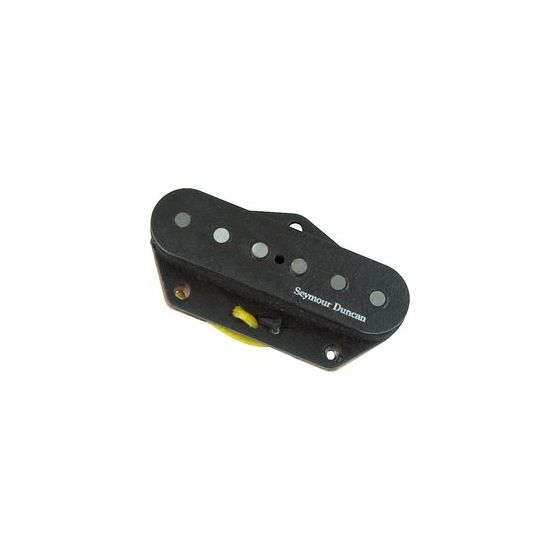

Seymour Duncan Humbucker APTL-3JD Jerry Donahue Model Lead Pickup

The APTL-3JD is a true single-coil pickup engineered for the bridge position, delivering the articulate, cutting response that defined Jerry Donahue's tone on his signature Fender Telecaster Plus models. This pickup bridges the gap between single-coil clarity and humbucker output, offering a distinctive character that cuts through a mix without sacrificing definition or musicality on stage and in the studio.

Tonal Design & Electronics

Built around Alnico 2 rod magnets and optimized for a 6.63 kHz resonant peak, this pickup delivers a presence-focused voice with a bright, articulate top end that sits forward in a live mix. The 7.8 kΩ DC resistance and EQ rating of 5/5/7 (Bass/Mid/Treble) create a lean, cutting character that emphasizes treble and upper midrange clarity—essential for country, fusion, and lead work where every note needs to be heard by your audience and bandmates.

Construction & Specifications

The symmetrically staggered pole pieces are shaped to mirror your fingerboard radius for even string response across the board, ensuring consistent output and feel under your fingers. A copper-plated steel bottom plate, waxed cloth hookup wire, and wax potting formulation eliminate microphonic feedback and deliver stable, road-ready performance that holds up to the demands of regular gigging.

Key Features

True single-coil pickup design with boosted output
Bridge/Lead position only
Alnico 2 rod magnets
Symmetrically staggered pole pieces mirroring fingerboard radius
Standard .187" diameter rod magnets
Copper-plated steel bottom plate
Waxed cloth hookup wire
7.8 kΩ DC resistance
6.63 kHz resonant peak frequency
Wax potting formulation
EQ Rating: 5 Bass / 5 Mid / 7 Treble

The APTL-3JD is a refined, single-coil-voiced bridge pickup for players who demand articulation, control, and the reliability needed to play night after night without compromise.

Condition	New
Country of Manufacture	United States
