Will this pickup fit my humbucker guitar without modification?

Yes. The SSL52-1 uses a standard humbucker footprint, making it a direct drop-in replacement for any humbucker cavity. No routing or body work required.

What tone character should I expect?

You get true single-coil clarity, snap, and note separation with a balanced output. The mixed magnet design (Alnico 2 on treble strings, Alnico 5 on bass strings) resists mud on the low end while preserving brightness and articulation on top, characteristic of vintage single-coil tone.

What styles is this pickup designed for?

The SSL52-1 excels in blues, rock, indie, and country. Its articulate, bright character and note definition make it less suited for metal and djent applications.

What is included in the box?

The pickup ships with a white cover, a single conductor cloth cable for shielding and vintage aesthetics, and mounting hardware for standard humbucker installation.

How does this compare to other single-coil options?

The SSL52-1 offers the clarity and snap of single-coil designs like the Fender Custom Shop 69 and Seymour Duncan SSL-1, but in a humbucker housing so you avoid any guitar modification. It shares tonal DNA with the Lollar Imperial while maintaining balanced, mud-resistant low-end response.

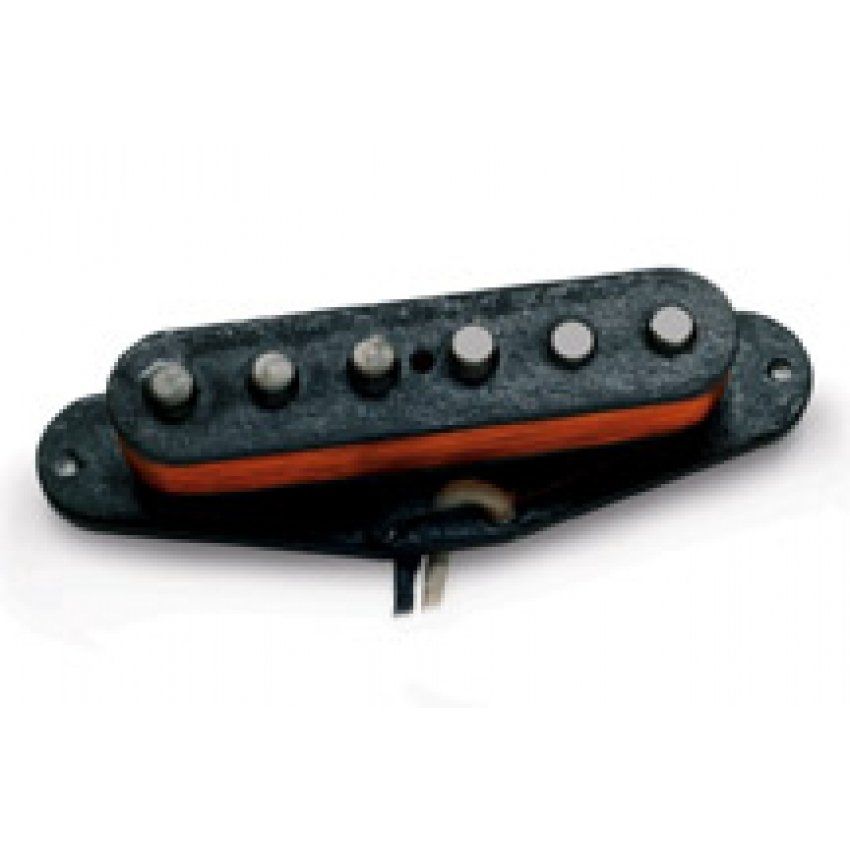

Seymour Duncan Humbucker SSL52-1 Five-Two Pickup

The SSL52-1 Five-Two is a single-coil pickup engineered to deliver authentic single-coil clarity and snap within a humbucker-sized housing. Built for players seeking traditional single-coil character without routing modifications, this pickup bridges the gap between vintage tone and modern convenience with a balanced blend of articulation and definition across the frequency spectrum.

Tone & Response

The SSL52-1 employs a mixed magnet architecture—Alnico 2 magnets on the three high strings and Alnico 5 magnets on the low strings—creating a naturally balanced output that resists mud on the low end while preserving brightness and snap on treble frequencies. With a DC resistance of 6.7 kΩ (Standard/RW/RP) and 6.9 kΩ (Bridge), and a resonant peak of 8.2 kHz, this true single-coil design delivers clarity and note separation characteristic of vintage single-coil tone. On stage, expect responsive articulation that cuts through the mix and holds definition even in thick band settings.

Live Reliability & Installation

The pickup ships with a white cover and uses a single conductor cloth cable for reliable shielding and vintage aesthetics. Its humbucker footprint makes it a drop-in replacement for standard humbucker cavities, eliminating the need for routing while maintaining the dimensional benefits of a compact, professional installation. No downtime for guitar work—swap it in and take it out to play.

Key Features

True single-coil pickup in humbucker-sized housing
Mixed magnet design: Alnico 2 (treble strings) / Alnico 5 (bass strings)
DC Resistance: 6.7 kΩ Standard/RW/RP; 6.9 kΩ Bridge
Resonant Peak: 8.2 kHz Standard/RW/RP; 7.9 kHz Bridge
EQ voicing: Bass 5 / Mid 5 / Treble 6
Single conductor cloth cable
Includes white cover
Dimensions: 3.00" W × 1.50" H × 4.50" D; 0.50 lbs

The SSL52-1 Five-Two delivers single-coil articulation and attack in a format that integrates seamlessly into existing humbucker guitars, making it the practical choice for players chasing vintage tone without committing to permanent guitar modification.

Condition	New
Country of Manufacture	United States
