What is the Pickup Resonance Switch, and how does it affect my tone?

The Pickup Resonance Switch voices single-coil pickups with two voicing options: position '1' shapes them to sound like a vintage humbucker, and position '2' voices them as a high-output humbucker. This tonal shaping is completely transparent and adds no additional coloration or noise.

Will this pedal fit on a crowded pedalboard?

Yes. At just 1.52" × 3.65" × 2.125", the Pickup Booster Mini is one of the most compact boost pedals available and draws only 4.5mA @ 9V, so it integrates easily into tight rigs without power-supply strain.

How much gain does it offer, and how transparent is it?

The pedal delivers up to 25 dB of gain with distortion measured at less than 0.02% at 200mV RMS output and a noise floor of -120 dBV, ensuring your signal remains clean and uncolored even at full gain.

What power options does it support?

The Pickup Booster Mini runs on a regulated 9 to 18V DC adapter with center-negative polarity, giving you flexibility to power it from most pedalboard supplies or a dedicated wall adapter.

Can I use this pedal for non-guitar sources?

Yes. Its transparent gain, low noise floor, and full frequency response (30 Hz to 38 kHz) make it suitable for any line-level source in studio or live settings, including vocals, keyboards, and bass.

Do I pay sales tax on this order?

We collect sales tax only on orders shipped to California. Orders shipped to any other US state are charged $0 sales tax at checkout when you buy direct from our website. Marketplaces such as eBay, Reverb and Amazon collect sales tax in nearly every state as marketplace facilitators no matter who the seller is, so the same item at the same price costs less bought direct. Free US shipping and 30-day returns are included. Some states ask buyers to self-report use tax on out-of-state purchases.

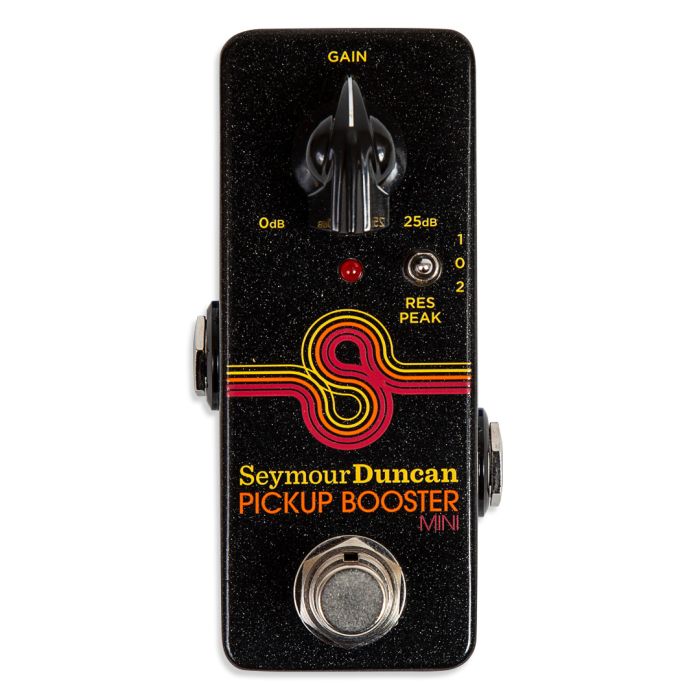

Seymour Duncan Pickup Booster Mini Pedal

The Seymour Duncan Pickup Booster Mini is a compact, Class A discrete boost designed to reshape single-coil and humbucker tone without coloration. Its small footprint makes it ideal for tight pedalboards, while the pickup resonance switch lets you voice single-coil pickups to behave like vintage or high-output humbuckers.

Design & Build Quality

This mini pedal measures just 1.52" × 3.65" × 2.125", making it one of the most space-efficient options for any board. The true bypass circuit ensures your tone remains unaffected when the pedal is off, while the 9 to 18V regulated DC adapter (center negative) powers the unit with minimal current draw—only 4.5mA at 9V when the LED is on.

Audio Performance

The fully discrete Class A circuit delivers up to 25 dB of gain with exceptionally low distortion at < 0.02% at 200mV RMS output and noise floor of -120 dBV (referred to input at maximum gain). Frequency response extends from 30 Hz to 38 kHz (-3dB), capturing the full spectrum of your instrument's natural resonance for reliable onstage clarity and presence.

Key Features

Fully discrete, Class A circuit topology
Gain range: 0 to 25 dB
True bypass switching
Pickup Resonance Switch—voice single coils as vintage humbucker ("1") or high-output humbucker ("2")
Frequency response: -3dB at 30 Hz and 38 kHz
Distortion: < 0.02% at 200mV RMS output
Noise floor: -120 dBV (referred to input at 25dB gain)
Input impedance: 250K Ohms (effect on)
Output impedance: 150 Ohms
Power: 9 to 18V regulated DC adapter (center negative)
Current consumption: 4.5mA @ 9V LED on; 3mA @ 9V LED off
Compact dimensions: 1.52" × 3.65" × 2.125"

The Pickup Booster Mini delivers transparent gain and tonal shaping in a format that fits anywhere on your board without compromise. A workhorse for players who need transparent level control and pickup voicing in the tightest rigs.
