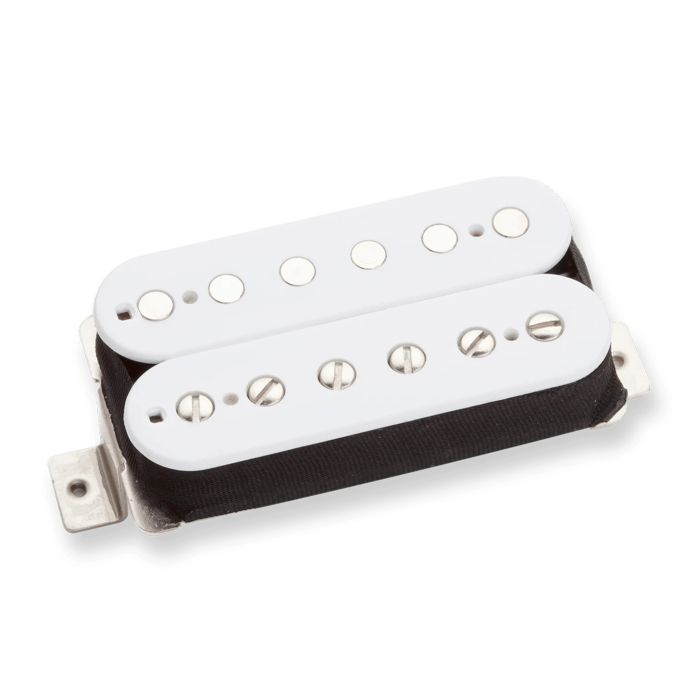

Seymour Duncan SH-1b '59 Model White 4-Conductor Pickup

Seymour Duncan SH-1b '59 Model White 4-Conductor Pickup

The SH-1b '59 Model is a bridge humbucker engineered for players who need articulate, vintage-focused tones that cut through live mix without sacrificing warmth. Built with Alnico V magnets and plain enamel winding, this pickup offers the responsive character that rewards both aggressive pick attack and controlled phrasing. The white cover and long-legged bottom plate make this a no-fuss install choice for guitarists building or upgrading a reliable stage machine.

Tone & Output Characteristics

The 8.13 kΩ DC resistance and 6 kHz resonant peak keep this pickup in the mid-output sweet spot—clear enough to articulate every note in a full band context, hot enough to maintain presence without getting flabby. The EQ profile—6 (Bass) / 3 (Mid) / 8 (Treble)—emphasizes definition in the highs while controlling bass bloom, making it equally at home for cutting lead lines and solid rhythm chop.

Construction & Reliability

Vacuum wax potting eliminates microphonic feedback and squeal, keeping you squeal-free even under high-gain conditions or in rooms prone to feedback issues. The nickel-plated studs, wooden spacer, and black paper tape construction follow Seymour Duncan's proven design approach, while the 4-conductor wiring unlocks flexible coil-splitting and series/parallel voicing options for expanded tonal reach without rewiring.

Key Features

• Alnico V magnet for vintage-focused response
• 8.13 kΩ DC resistance (bridge)
• 6 kHz resonant peak
• EQ profile: 6 Bass / 3 Mid / 8 Treble
• Plain enamel winding
• Nickel-plated studs
• Wooden spacer construction
• Vacuum wax potted for squeal-free operation
• 4-conductor cable for coil-splitting compatibility
• Long-legged bottom plate
• White cover finish
• Includes wiring diagram and mounting screws

This pickup delivers harmonic richness and responsive dynamics typical of a classic '59 design with the modern squeal-free reliability of vacuum potting—a straightforward, road-tested choice for any player needing vintage bridge clarity that holds up night after night.
