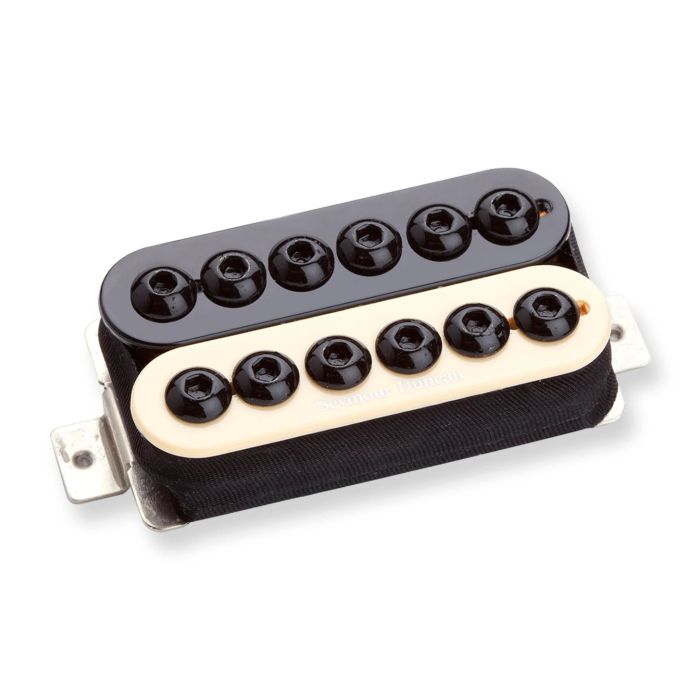

Seymour Duncan SH-8n Invader Reverse Zebra Pickup

Seymour Duncan SH-8n Invader Reverse Zebra Pickup

The SH-8n Invader delivers articulate, controlled aggression in neck position with considerably reduced output compared to its bridge counterpart, making it ideal for players who want definition and clarity without overwhelming sustain. This Reverse Zebra configuration pairs aggressive voicing with tonal versatility, sitting perfectly in split-coil or parallel wiring configurations. Hand-built in Santa Barbara, the SH-8n is engineered for musicians who demand responsiveness and note separation in their neck pickup.

Tone & Electrical Character

A 7.2 kΩ DC resistance with 8 kHz resonant peak delivers punchy midrange and controlled treble articulation. The EQ voicing of 7/8/4 (Bass/Mid/Treble) emphasizes midrange bite while keeping bass tight and treble refined—perfect for clean tones, driven rhythms, and lead work that needs to cut through a live mix.

Design & Construction

Three large ceramic bar magnets paired with oversized metal oxide poles create formidable magnetic pull with precise string response. Vacuum wax potting eliminates microphonic squeal, while wide pole pieces accommodate both humbucker and Trembucker string spacing, offering compatibility across multiple instrument platforms and wiring schemes for maximum gigging flexibility.

Key Features

• DC Resistance: 7.2 kΩ (neck position)
• Resonant Peak: 8 kHz
• EQ: 7 Bass / 8 Mid / 4 Treble
• Three large ceramic bar magnets
• Oversized metal oxide poles
• Nickel silver bottom plate
• Vacuum wax potted construction
• 4-conductor lead wire for multiple wiring options
• Wide pole pieces for humbucker and Trembucker compatibility
• Twelve black oxide cap screws
• Hand built in Santa Barbara, CA
• Reduced output for neck position tonal balance

The SH-8n Invader combines aggressive character with balanced output and dimensional tone—a neck pickup engineered for gigging musicians who refuse to compromise between power and definition on stage.
