Will this pickup fit my guitar?

The SM-1N is designed for semi-hollow and offset guitars with Firebird-style mounting cavities and requires a 3-48 humbucker mounting screw. It will not fit standard single-coil or full-size humbucker routes; verify your guitar's pickup cavity and mounting hardware before ordering.

What genres is this pickup best suited for?

The SM-1N excels in jazz, blues, indie, and studio session work where balanced, articulate tone and vintage character are priorities. Its moderate output and warm, clear response make it less suitable for metal and thrash metal applications.

How does the output compare to a standard humbucker?

At 6.54 kΩ DC resistance, the SM-1N delivers moderate output that preserves note clarity and string separation rather than raw volume. This voicing prioritizes balanced response and harmonic definition over high gain.

What's included with this pickup?

The package includes the SM-1N pickup, a Firebird-style mounting ring, a 3-48 humbucker mounting screw, and a 1-conductor braided shield cable for simplified wiring in tight cavities.

How does the SM-1N compare to other compact neck pickups?

The SM-1N shares the mini humbucker form factor with models like the SM-1B bridge version, Fender Noiseless Neck, and Lollar Imperial, but its hand-wound construction and Alnico V magnet deliver a warmer, more organic sustain profile optimized for vintage character in the neck position.

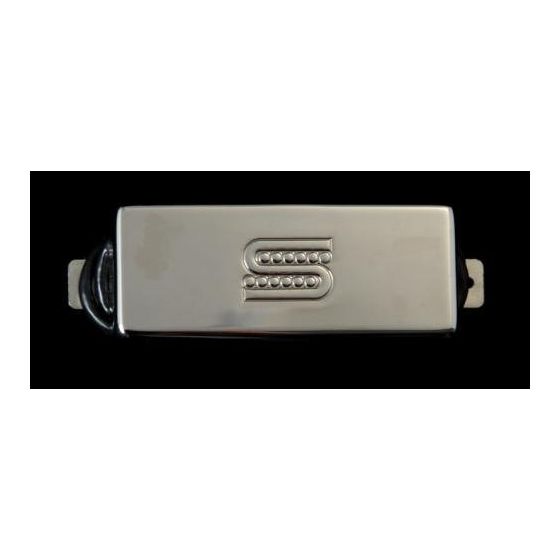

Seymour Duncan SM-1N Vintage Mini Humbucker 1-Conductor Neck Pickup

The SM-1N is a compact, hand-wound neck pickup engineered for players seeking vintage warmth in tight spaces. Its diminutive footprint and Firebird-style mounting make it ideal for semi-hollow and offset guitar designs where standard humbuckers won't fit. This pickup delivers balanced, articulate tones without sacrificing the harmonic depth expected from a true humbucker configuration.

Tone & Frequency Response

The SM-1N combines a warm, rounded low-end with articulate upper midrange clarity. Its 7 kHz resonant peak and measured EQ profile of 5/4/6 (Bass/Mid/Treble) produce a pickup that sits perfectly in the mix—full-bodied in the neck position without muddiness, with enough definition to cut through when needed. The Alnico V bar magnet contributes organic sustain and responsive dynamics across all playing dynamics.

Construction & Specifications

Built by hand in Santa Barbara, CA, this pickup features a DC resistance of 6.54 kΩ, calibrating it for moderate output that preserves note clarity and string separation. The 1-conductor braided shield cable simplifies wiring in tight cavities, while the included Firebird-style mounting ring and 3-48 humbucker mounting screw ensure secure, tool-free installation on compatible instruments.

Key Features

DC Resistance: 6.54 kΩ
Resonant Peak: 7 kHz
Magnet Type: Alnico V Bar
EQ Profile: 5 (Bass) / 4 (Mid) / 6 (Treble)
Cable: 1-Conductor Braided Shield
Mounting: Firebird-style mounting ring
Mounting Hardware: 3-48 humbucker mounting screw
Handmade in Santa Barbara, CA
Mini humbucker form factor for offset and semi-hollow guitars
Neck position voicing

The SM-1N delivers genuine vintage character and balanced response in a format designed for guitars that demand compact pickups without compromise.

Condition	New
Country of Manufacture	United States
