What do the concentric bass and treble controls do?

The concentric controls let you shape both low and high frequencies simultaneously without taking up extra panel space. You adjust bass and treble independently with a single rotary encoder, giving you precise EQ sculpting for dialing in exactly the tone you need for any session or performance.

What is the Slap Switch and how does it work?

The Slap Switch is a push-pull mechanism integrated into the volume control that toggles between two preset EQ voicings on the fly. Two trim pots on the circuit board let you fine-tune each preset, so you can switch between two distinct tonal characters instantly during performance without adjusting knobs.

Does this work with my passive pickups, and what about battery life?

Yes—the STC-2P is engineered specifically for passive pickup systems and preserves their natural character while adding active EQ control. It runs on a single 9V battery with an included clip; an optional 18-volt configuration is available if you need increased headroom and dynamic range.

Will this fit in my guitar's control cavity?

The circuit is compact and fits comfortably in standard control cavities alongside three control knobs (bass, treble, volume, and blend). It requires space for one 9V battery; measure your cavity depth and width against the circuit's 4.00" W × 1.50" H × 9.00" D dimensions to confirm fit before installation.

What comes in the box and do I need to solder?

The STC-2P includes a pre-wired harness with high-quality potentiometers, knurled black dome knobs, and a battery clip ready to install. You will need to solder the harness to your guitar's existing wiring; the trim pots on the circuit board handle preset adjustments, so no extra soldering is required for fine-tuning.

Do I pay sales tax on this order?

We collect sales tax only on orders shipped to California. Orders shipped to any other US state are charged $0 sales tax at checkout when you buy direct from our website. Marketplaces such as eBay, Reverb and Amazon collect sales tax in nearly every state as marketplace facilitators no matter who the seller is, so the same item at the same price costs less bought direct. Free US shipping and 30-day returns are included. Some states ask buyers to self-report use tax on out-of-state purchases.

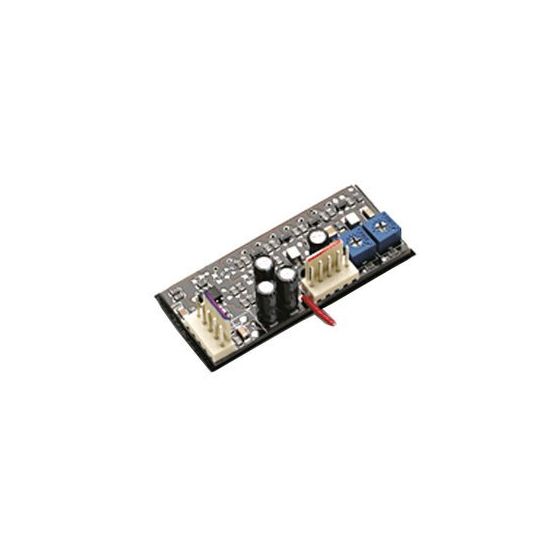

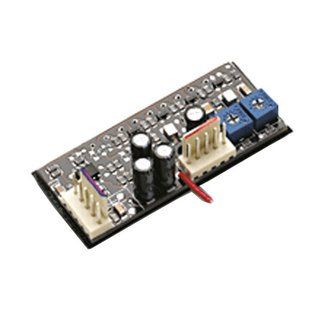

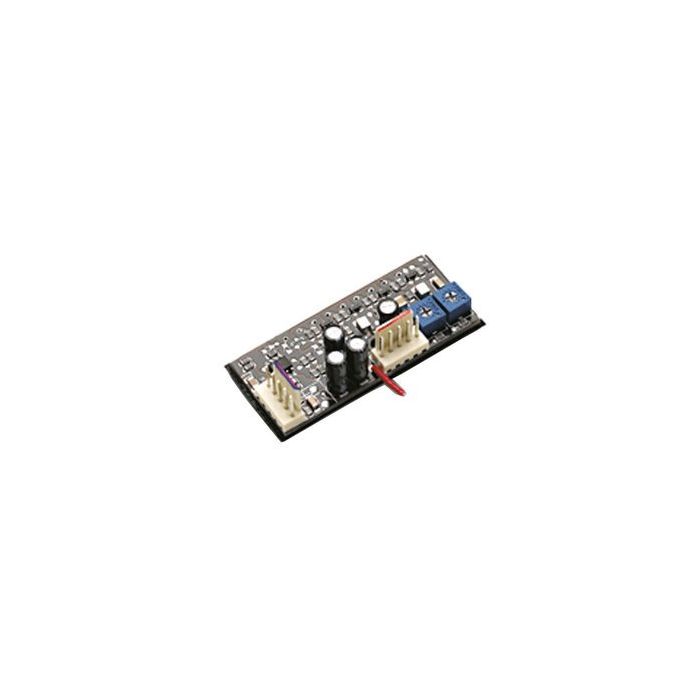

Seymour Duncan STC-2P 2-Band Tone Circuit For Passive Pickups

The STC-2P is a compact, high-headroom active preamp engineered to breathe new life into passive pickup systems without compromising signal integrity. Its intuitive control layout—combining concentric bass and treble controls with dedicated blend and volume knobs—puts precise tonal shaping directly at your fingertips. The proprietary Slap Switch adds an extra dimension of versatility, letting you toggle between two preset EQ voicings on the fly.

Electronics & Control Layout

Built on a pre-wired harness with high-quality potentiometers and knurled black dome knobs, this circuit delivers consistent, noise-free operation across the frequency spectrum. The Slap Switch—a push-pull mechanism integrated into the volume control—works alongside two trim pots on the circuit board for fine-tuned preset adjustments, giving you rapid access to two distinct tonal characters without reaching for a soldering iron.

Power & Installation Requirements

The circuit runs on a single 9V battery and fits comfortably in standard control cavities alongside three control knobs. An optional 18-volt configuration is available for users who need increased headroom and dynamic range. The included battery clip ensures secure, rattle-free power delivery during performance.

Key Features

High headroom, low-noise 2-band active EQ preamp for passive pickups
Concentric bass and treble controls for simultaneous dual-frequency shaping
Master volume control with integrated push-pull Slap Switch
Dedicated blend control for pickup mix management
Pre-wired harness with high-quality potentiometers
Proprietary Slap Switch with two trim pots for preset EQ adjustments
Operates on single 9V battery; compatible with 18V configuration
Includes battery clip and knurled black dome-style control knobs
Requires 3 control knobs and single 9V battery space in control cavity
Weight: 1.20 lbs; Dimensions: 4.00" W × 1.50" H × 9.00" D

The STC-2P gives you serious tonal control on stage without a complete rewire. Install it in your passive-pickup rig and get transparent, articulate EQ shaping that preserves what your pickups naturally deliver—ideal for gigging musicians who need dependable tone tweaking between songs and sets.

Condition	New
Country of Manufacture	United States
