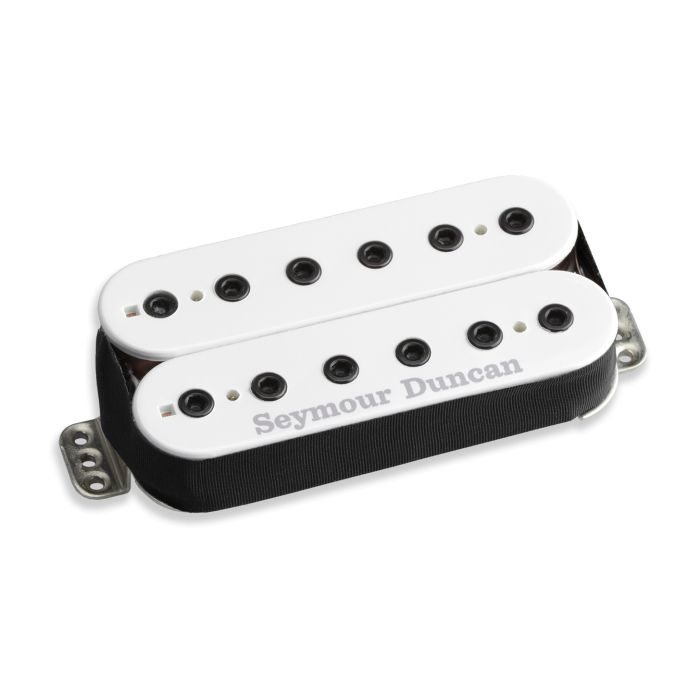

Seymour Duncan TB-10 Full Shred Trembucker White Pickup

Seymour Duncan TB-10 Full Shred Trembucker White Pickup

The TB-10 Full Shred delivers aggressive, articulate punch with tight low-end definition and singing high-end clarity—a bridge pickup built for hard rock and metal rigs that demand precision attack without flabbiness. Hand-built in Santa Barbara, this medium-output humbucker cuts through the mix on stage while staying responsive across the entire frequency spectrum. The Trembucker spacing accommodates wide string-spacing guitars, ensuring balanced pole piece alignment and consistent magnetic coupling for reliable gigging performance.

Tone & Frequency Response

The 5.5 kHz resonant peak and aggressive EQ curve (Bass 4 / Mid 4 / Treble 8) push presence and articulation into the upper midrange, ideal for lead lines and rhythmic definition on a live stage. The Alnico 5 bar magnet and nickel-silver bottom plate contribute to a naturally compressed response with fast transient snap, while the 14.6 kΩ DC resistance maintains clarity without over-saturation even at high gain settings.

Construction & Reliability

Vacuum wax potting eliminates microphonic feedback and ensures stable performance under sustained high-gain applications—essential for dependable live use. The 4-conductor lead wire permits flexible wiring configurations, and the double rows of Allen-screw pole pieces with F-spaced (2 1/16") geometry deliver precise string tracking and balanced output across all six strings.

Key Features

• Alnico 5 bar magnet for dynamic, responsive tone
• Nickel-silver bottom plate for tonal definition
• Double rows of Allen-screw pole pieces with F-spaced (2 1/16") Trembucker spacing
• 14.6 kΩ DC resistance (bridge position)
• 5.5 kHz resonant peak for articulate, cutting presence
• EQ curve: Bass 4 / Mid 4 / Treble 8 — aggressive midrange and treble emphasis
• Medium-output passive humbucker — balanced gain without loss of definition
• 4-conductor lead wire for coil-split and series/parallel wiring options
• Vacuum wax potted construction — eliminates microphonic feedback
• Hand-built in Santa Barbara, California

This Full Shred pickup combines raw aggression with articulate clarity, making it a go-to choice for bridge-position installation in guitars demanding precision at high gain on stage and in the studio.
