What does Trembucker (F-spaced) mean, and will it fit my guitar?

Trembucker pole piece spacing is engineered for guitars with bridge spans of 2 inches or wider. If your guitar has a wider string spacing at the bridge—common on modern Gibsons, PRS models, and other larger-body designs—the F-spacing ensures the poles align properly with each string for balanced output and clarity. Measure your bridge span or check your guitar's specs before ordering.

How does this neck pickup compare to the JB Jr. Neck or DiMarzio Air Norton?

The PA-TB1N emphasizes articulation and harmonic complexity with its patented dual-pole design and over-wound coils, sitting warmer and more balanced than aggressive alternatives. It excels in jazz, funk, and dynamic rock where note separation matters; the JB Jr. and Air Norton are voiced differently for other genres and playing styles. Choose the PA-TB1N if you prioritize clarity and musicality over high-output aggression.

What is the four-conductor hookup cable, and why does it matter?

The four-conductor cable allows you to split the coils into single-coil and humbucker modes, giving you tonal flexibility during performance or recording. This is useful if your guitar supports coil-split wiring; check with your guitar tech or luthier to confirm your guitar can accommodate this feature.

Is this pickup suitable for metal or aggressive genres?

No, the PA-TB1N is not designed for metal or thrash metal. Its warm mids and controlled compression are optimized for jazz, funk, and rock clarity; metal genres typically demand higher output and more aggressive frequency peaks. Consider a higher-output Seymour Duncan model if you play heavier styles.

What skill level do I need to install this pickup?

This pickup is suited for intermediate to advanced players or anyone working with a luthier or guitar tech. Installation involves wiring the four-conductor cable and positioning the pickup in the neck slot; proper height adjustment and shielding are important for optimal tone and noise rejection.

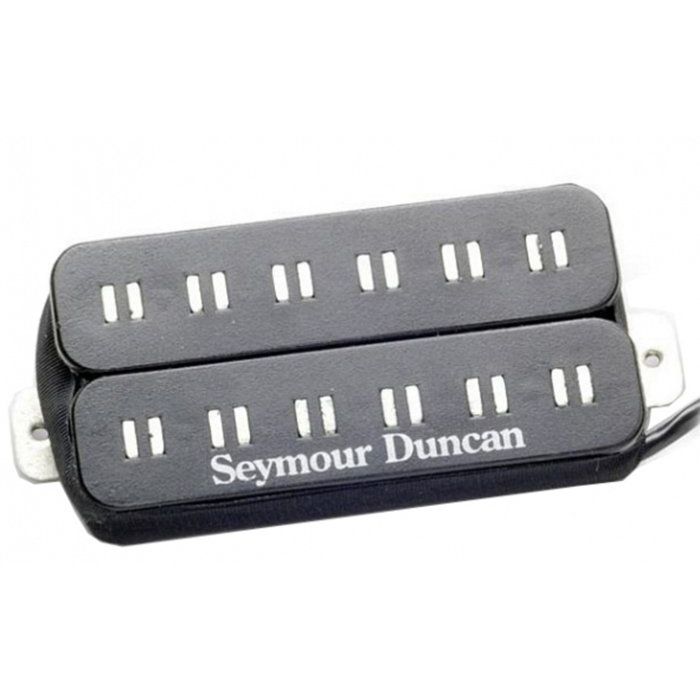

Seymour Duncan Trembucker PA-TB1N Original Parallel Axis Neck Pickup

The PA-TB1N delivers articulate, balanced neck-position voicing with the extended dynamic range that defined Seymour Duncan's original Parallel Axis design. This hand-wound pickup excels in guitars with wider bridge spans, offering clarity and definition without sacrificing warmth in the mids and lows. The patented dual-pole construction sustains notes with controlled compression, making it equally at home in lead passages and chord-driven arrangements.

Tone & Frequency Response

A 7.5k ohm resistance paired with a 6.9 kHz resonant peak produces a neck pickup that balances articulation with musicality. The Alnico 5 bar magnet and over-wound coil design yield a 5 / 4 / 7 EQ profile (Bass / Mid / Treble), anchoring the low end while maintaining articulate upper-midrange definition ideal for jazz, funk, and dynamic rock applications.

Design & Specifications

Built with Trembucker (F-spaced) pole piece spacing—engineered for bridge spans of 2+ inches—this pickup integrates seamlessly into guitars with wider string spacing. The four-conductor hookup cable enables flexible coil-splitting configurations, while hand-assembly in Santa Barbara, CA ensures the build quality and attention to detail expected from Seymour Duncan's craft.

Key Features

Alnico 5 bar magnet construction
Patented dual-pole design with over-wound coils
Trembucker (F-spaced) pole piece spacing for 2+ inch bridge spans
7.5k ohm DC resistance (neck position)
6.9 kHz resonant peak frequency
5 / 4 / 7 EQ profile (Bass / Mid / Treble)
Four-conductor hookup cable for coil-split compatibility
Dimensions: 3.00" W × 1.50" H × 4.00" D
Weight: 0.70 lbs
Hand-made in Santa Barbara, California

The PA-TB1N represents vintage Seymour Duncan engineering—a neck pickup that maintains note separation and harmonic complexity across the frequency spectrum, backed by nearly four decades of pickup design refinement.

Condition	New
Country of Manufacture	United States
