Seymour Duncan TS-1, Triple Shot, TB, Cr

Seymour Duncan TS-1 Triple Shot TB Cr

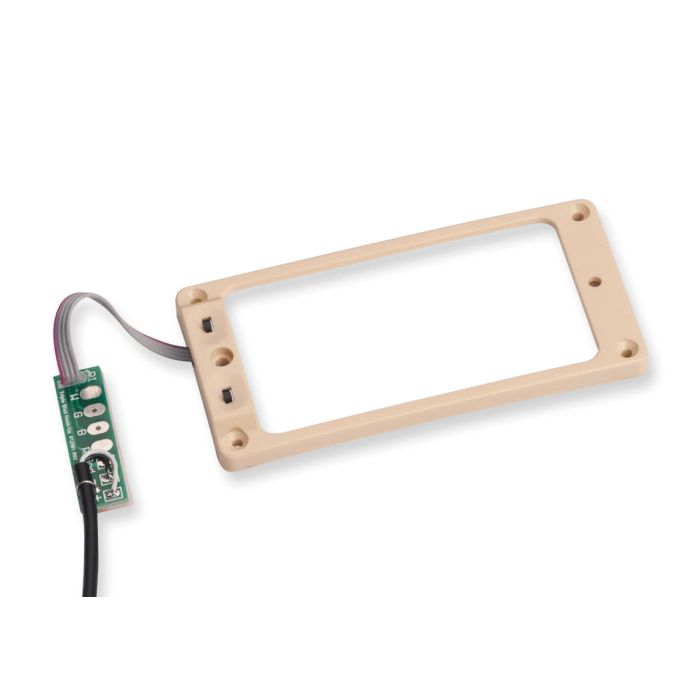

The Seymour Duncan TS-1 Triple Shot is a compact switching interface that installs seamlessly into humbucker and Trembucker pickups, delivering four distinct tonal options from a single pickup position. Its low-profile design keeps pickup height minimal while dual slider switches provide intuitive, on-the-fly access to series, parallel, and split-coil configurations. Built for players who demand versatility without adding bulk to their instrument's electronics cavity.

Design & Installation

This unit's tight footprint—measuring 2.780 x 1.470 inches inside with a 0.200-inch ring height—fits discretely within standard pickup cavities on most guitars. The 3.076-inch pickup mounting hole spacing and 3.20 x 1.513-inch trim ring mounting hole spacing align with conventional humbucker dimensions, making installation straightforward for technicians and experienced builders. A compact 1.353 x 0.402-inch circuit board and 43.5 ft soundboard radius ensure minimal acoustic impact on your instrument's resonance.

Tone & Switching Functionality

Access four distinct sounds—individual coil splits, series operation, and parallel operation—via two small slider switches, each assigned a specific tonal option. The TS-1 works with nearly any four-conductor humbucker and Trembucker, expanding your tonal palette from a single pickup without sacrificing clarity or response. This switching system keeps your signal path clean and responsive on stage, letting you dial in the exact voice you need mid-set. Note that nickel and gold-covered Trembuckers are not compatible with this system.

Key Features

• Four selectable sounds: individual coil splits, series operation, and parallel operation
• Dual slider switches for intuitive on-the-fly switching
• Internal dimensions: 2.780 x 1.470 inches
• External dimensions: 3.54 x 1.78 inches
• Ring height: 0.200 inches; switch casing height: 0.328 inches
• Pickup mounting hole spacing: 3.076 inches on center
• Trim ring mounting hole spacing: 3.20 x 1.513 inches on center
• Compatible with humbucker and Trembucker pickups featuring four-conductor cable
• Not compatible with nickel and gold-covered Trembucker pickups
• Compact circuit board: 1.353 x 0.402 inches
• Soundboard radius: 43.5 feet

The TS-1 Triple Shot delivers professional-grade switching versatility in a form factor that respects your instrument's original character and build integrity.
