AKG APS4 With No Power Supply

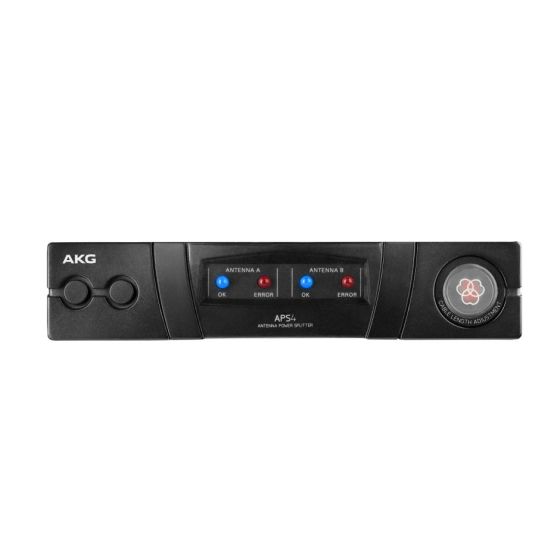

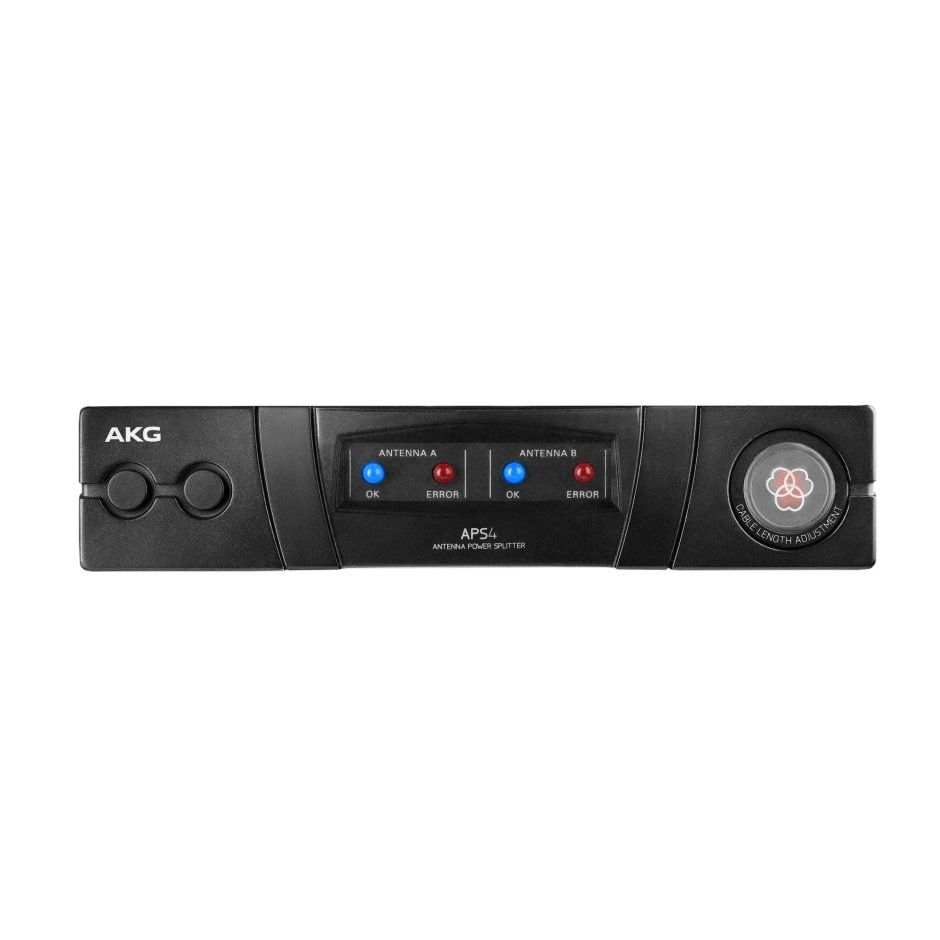

AKG APS4 Active Antenna Power Splitter (No Power Supply)

The AKG APS4 is the backbone infrastructure for gigging musicians and live sound professionals running multi-receiver wireless systems. Built into a rugged half-rack metal housing, this unit consolidates RF signals from multiple antenna sources and distributes them cleanly across up to four receivers without signal loss or interference. For live stages, theater rigs, and broadcast setups where reliable wireless coverage is non-negotiable, the APS4 delivers the solid RF management needed to keep your mics live and your show moving.

Signal Distribution & RF Performance

The APS4 accepts RF input from two independent antenna paths via BNC connectors and distributes that signal across ten RF output BNC sockets, each capable of feeding a separate receiver. Switchable attenuation settings (0, 2, 4, 6, 8, 10, 12, 14 dB) allow precise level matching and prevent overdriving connected receivers, critical when managing multiple units in close proximity. The system operates across the extended 470–952 MHz frequency range, covering UHF wireless microphone bands used worldwide.

Power Management & Expandability

The rear panel antenna inputs supply 10 VDC to power up to three active antenna elements per signal path, eliminating the need for separate antenna power supplies on compatible active antennas. Two additional antenna outputs allow cascading of up to three further APS4 units for large-scale multi-zone installations. Note that this variant ships without its external 12 VDC power supply, which must be sourced separately.

Key Features

• Wide-band UHF active antenna and power splitter for up to 4 receivers
• 2 x BNC RF inputs (50 Ohm), 10 x BNC RF outputs (50 Ohm)
• Frequency range: 470 to 952 MHz
• Switchable attenuation: 0, 2, 4, 6, 8, 10, 12, 14 dB
• 10 VDC supply voltage for powering up to three active antenna elements per path
• Two antenna outputs for cascading up to three additional APS4 units
• Rugged half-rack metal housing
• Requires external 12 VDC / 3500 mA power supply (sold separately)
• Includes rack mount kit (RMU4000), two front-mount antenna cables, and ten BNC cables (MKPS)

The APS4 keeps your wireless rigs stable and transparent on every gig, delivering the professional-grade antenna infrastructure and signal management that live performers depend on to stay connected.
