AKG C5 WL1 Professional Condenser Microphone Head
Description

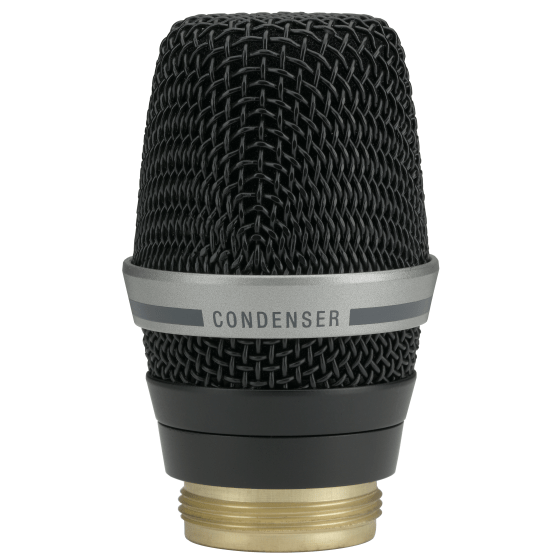

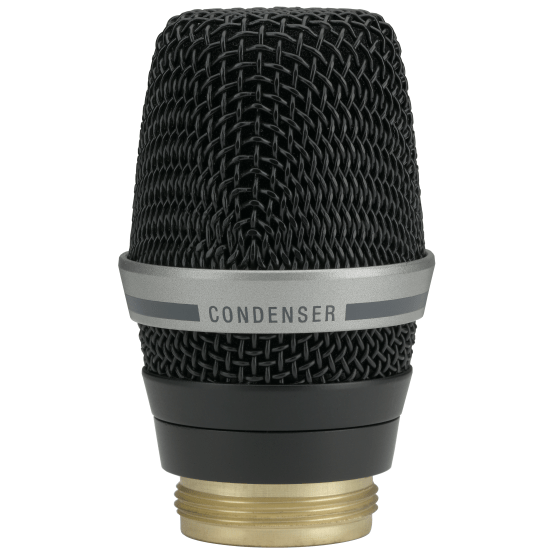

AKG C5 WL1 Professional Condenser Microphone Head
The AKG C5 WL1 is a compact condenser microphone head engineered for wireless vocal applications, delivering a balanced presence and clarity in a lightweight, ergonomic design. Built with a 24-carat gold-plated capsule and integrated shock absorption, this mic maintains professional audio quality while minimizing handling noise—essential for live performance environments. Compatible with major AKG wireless systems, the C5 WL1 bridges the gap between portability and sonic integrity.
Audio Performance & Specifications
On stage, the cardioid polar pattern locks in your vocal signal while rejecting feedback from stage monitors and crowd noise, supported by a frequency response of 65 to 20,000 Hz that captures vocal detail across the full spectrum. The sensitivity of 4 mV/Pa and maximum SPL ratings of 140 dB @ 1% THD and 145 dB @ 3% THD give you serious headroom for dynamic performances and screaming passages, while the 25 dB-A equivalent noise level keeps self-noise out of the way during softer moments.
Design & Wireless Integration
The spring-steel wire-mesh grille and integrated shock absorber system protect the capsule from plosives and handling vibration without dulling your transient attack and articulation. Operating on standard 9 to 52 V phantom power with minimal current draw (3 mA typical), the C5 WL1 connects via balanced XLR output and fits directly onto HT4500 and DHT800 handheld transmitters, integrating seamlessly into DMS800 and WMS4500 wireless systems for plug-and-play reliability night after night.
Key Features
- Condenser microphone with cardioid polar pattern
- 24-carat gold-plated capsule
- Frequency response: 65 to 20,000 Hz
- Sensitivity: 4 mV/Pa
- Maximum SPL: 140 dB @ 1% THD / 145 dB @ 3% THD
- Equivalent noise level: 25 dB-A to DIN 45412
- Balanced XLR (3-pin Male) audio output
- Phantom power requirement: 9 to 52 V to DIN 45596
- Integrated shock absorber system
- Spring-steel wire-mesh grille
- Compatible with HT4500 and DHT800 handheld transmitters
- Works with AKG DMS800 and WMS4500 wireless systems
The C5 WL1 delivers pro-grade audio quality with rock-solid wireless compatibility—built for the demands of touring singers and live performers who need a mic that won't let them down.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The AKG C5 WL1 is a compact condenser microphone head built for wireless vocals on stage, delivering clear, articulate presence with minimal self-noise and rock-solid SPL handling up to 145 dB. Its integrated shock absorption and gold-plated capsule reject handling noise while preserving transient detail—critical for touring performers and worship settings. Drop it onto compatible AKG handheld transmitters and get professional audio quality without breaking the bank or your road case.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Touring
- ✓ Worship
Not the best pick for
- – Studio Sessions
- – Home Recording
Frequently Asked Questions
What AKG wireless systems does the C5 WL1 work with?
The C5 WL1 capsule head mounts directly onto AKG HT4500 and DHT800 handheld transmitters, and integrates with AKG DMS800 and WMS4500 wireless systems. Confirm your transmitter model before purchase.
How much SPL can this microphone handle?
Maximum SPL is 140 dB at 1% THD and 145 dB at 3% THD, providing plenty of headroom for dynamic lead vocals and high-energy live performance without distortion.
What is the equivalent noise level?
The C5 WL1 has an equivalent noise level of 25 dB-A to DIN 45412, keeping self-noise minimal during quiet vocal passages and spoken-word sections.
Does it require phantom power, and how much?
Yes, the C5 WL1 operates on 9 to 52 V phantom power with minimal current draw of 3 mA typical, drawing negligible power from your wireless transmitter battery.
What's the polar pattern and frequency response?
The C5 WL1 uses a cardioid polar pattern to reject off-axis noise, with a frequency response of 65 to 20,000 Hz that captures full vocal detail while maintaining clarity and presence on stage.
