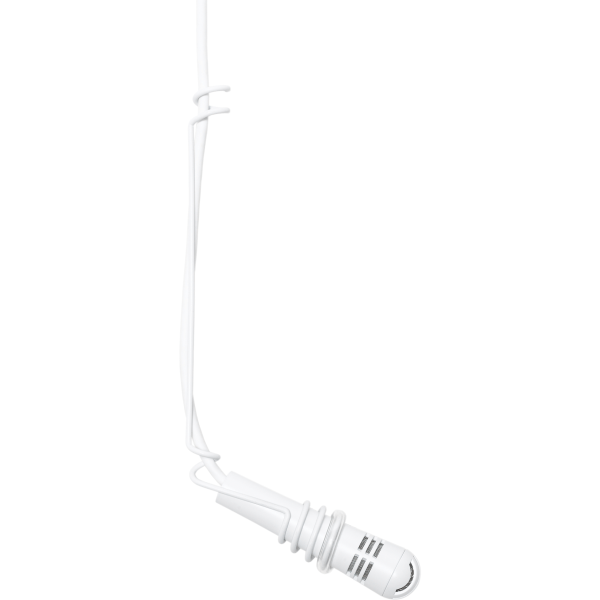

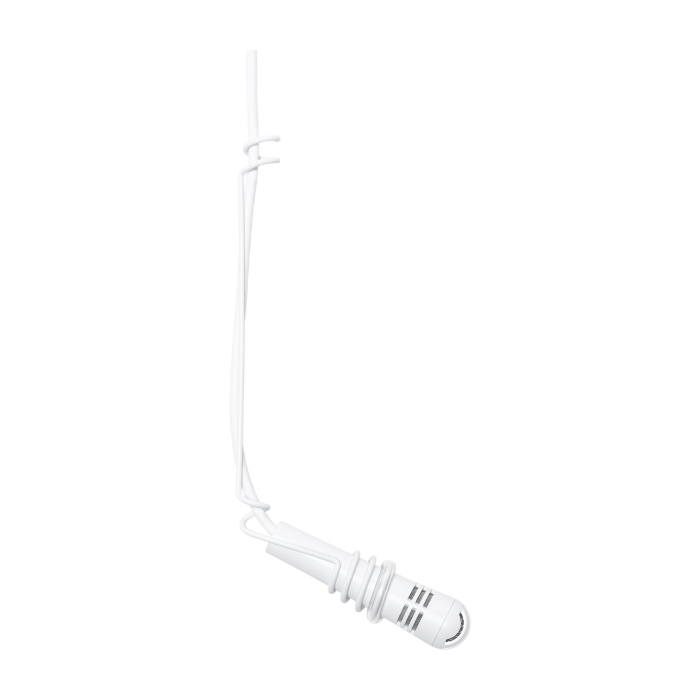

AKG CHM99 WHITE Hanging Cardioid Condenser Microphone

The AKG CHM99 WHITE is a compact hanging condenser mic engineered for overhead and ambient capture in live sound and installed systems. Its diminutive form factor—just 55mm tall with a 13.5mm diameter—makes it nearly invisible in sight lines while delivering professional cardioid rejection and clean audio output. The included spring steel hanging clamp and 10-meter twist-resistant cable allow for quick deployment in any rigging scenario.

Design & Build

Built to hang discreetly above stages, bars, or meeting spaces, this microphone weighs only 0.7 oz and measures 0.5" × 2.1", minimizing visual obstruction while maintaining structural stability. The package includes a windscreen and purpose-built hanging hardware that secures the mic safely and keeps cable routing clean and organized.

Audio Performance

The cardioid pattern with a 125° pickup angle isolates the mic's target source while rejecting off-axis noise—critical for hanging applications where ambient rejection matters. A 73 dB-A signal-to-noise ratio and 21 dB-A equivalent noise level ensure clear, low-noise capture even in moderately loud venues, while the balanced XLR output integrates seamlessly into any professional audio console or mixing setup.

Key Features

Cardioid polar pattern with 125° pickup angle for focused overhead capture
Frequency Response: 70 Hz to 18 kHz
Sensitivity: 18 mV/Pa
Equivalent Noise Level: 21 dB-A
Signal to Noise: 73 dB-A
Dimensions: 55 mm height × 13.5 mm diameter (0.5" × 2.1")
Net Weight: 0.7 oz (approximately 20 g)
Balanced 3-pin XLR Male output
Phantom Power requirement: 9V to 52V supply at 3 mA current draw
Electrical Impedance: 600 Ohms; Recommended Load: 2000 Ohms
Includes 10m (33ft) special twist-resistant cable
Includes spring steel hanging clamp and windscreen

The CHM99 WHITE delivers professional hanging-mic performance in an unobtrusive package, backed by AKG's engineering and a complete accessory kit ready for installation.
