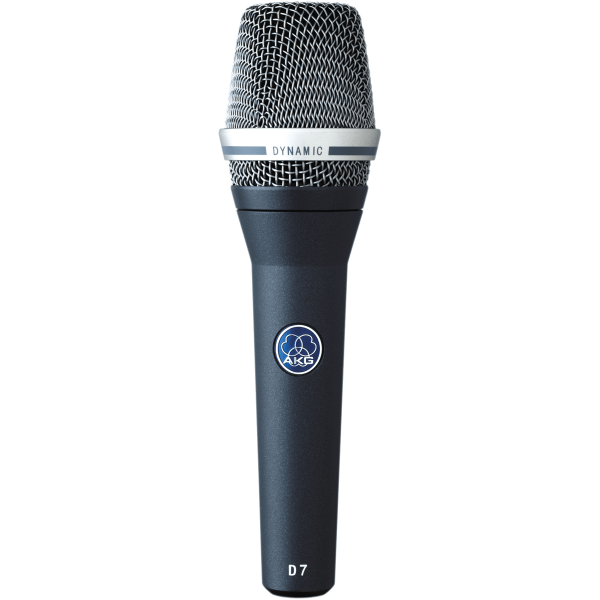

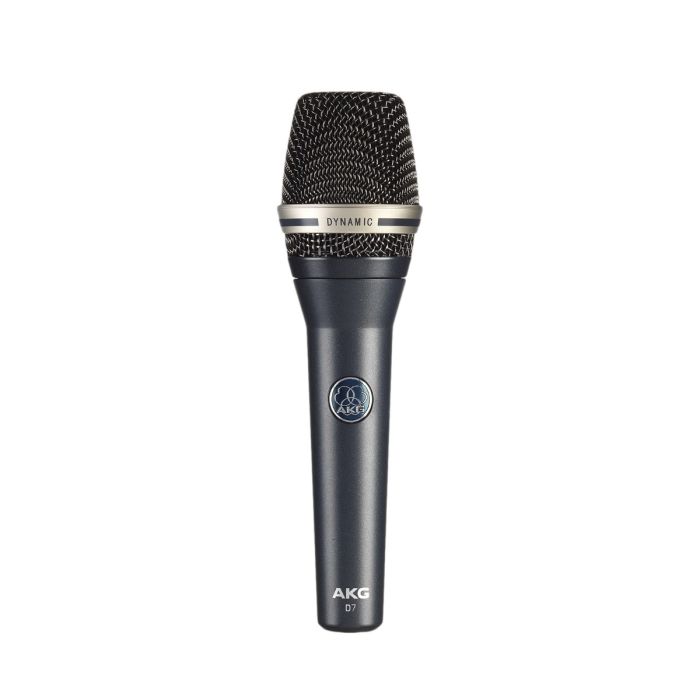

AKG D7 (S) Reference Dynamic Vocal Microphone

AKG D7 (S) Reference Dynamic Vocal Microphone

The AKG D7 balances the crisp transparency of a condenser with the powerful presence of a dynamic microphone, delivering commanding lead vocal clarity without feedback issues. Its compact, lightweight design sits comfortably in hand during extended vocal sessions, while the tight supercardioid pattern and integrated mechanical suspension isolate your voice from stage noise and handling vibration. Built for professional touring and studio work where demanding vocals require both presence and control.

Design & Build

The die-cast metal chassis with dent-resistant wire mesh grille withstands the rigors of live performance, while the patented dual-layer Varimotion diaphragm provides an open, uncolored sound across all frequency ranges. Mechano-pneumatic capsule suspension effectively eliminates handling noise, and a precision metal dust filter ensures the diaphragm stays clean and consistent throughout its working life.

Audio Performance

A frequency response of 70–20,000 Hz captures full vocal presence with exceptional clarity, while the laminated diaphragm material damps critical resonance peaks to deliver high gain before feedback—essential for live vocal work. The integrated hum-compensating coil and 76 dB signal-to-noise ratio ensure the cleanest possible output even in electrically noisy environments.

Key Features

• Patented dual-layer Varimotion diaphragm for crisp, open sound
• Supercardioid polar pattern for tight rejection and high feedback suppression
• Frequency response: 70 to 20,000 Hz
• Sensitivity: 2.6 mV/Pa (−52 dBV)
• Maximum SPL: 147 / 156 dB SPL
• Signal-to-noise ratio (A-weighted): 76 dB
• Equivalent noise level: 18 dB-A (IEC 60268-4)
• Active 80 Hz high-pass filter with mechano-pneumatic suspension
• Balanced 3-pin XLR output with gold-plated pins
• 600 Ohms electrical impedance; 2000+ Ohms recommended load
• Precision metal dust filter for extended diaphragm protection
• Compact dimensions: 185.2 mm × 51 mm; weighs 340 g

Sound engineers and touring vocalists trust the D7 for its transparent vocal reproduction paired with rock-solid feedback control and road-tested durability. On stage or in the truck between gigs, it delivers consistent, commanding presence night after night.
