AKG GN30 E High Performance Modular Gooseneck Module
Description

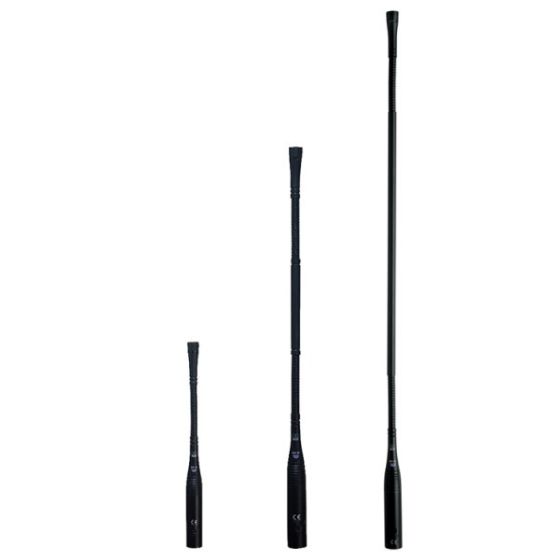

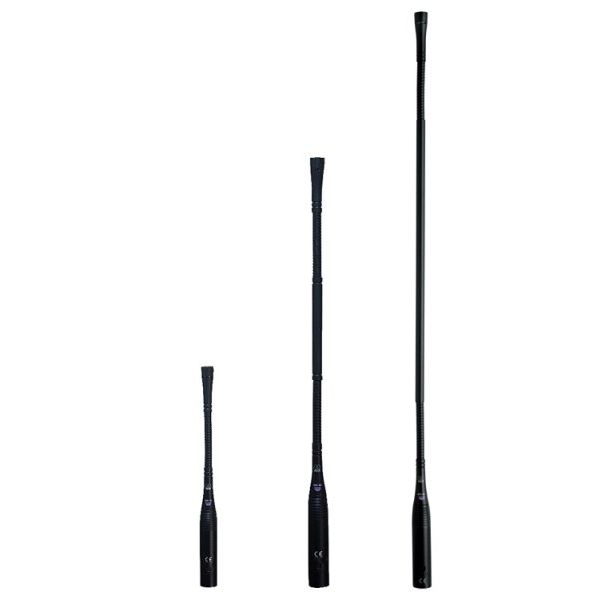

AKG GN30 E High Performance Modular Gooseneck Module
The AKG GN30 E is a flexible gooseneck module engineered for precision microphone positioning on stage and in the studio. Its 30cm length and 20mm diameter give you the articulation needed to dial in clear, detailed capture from guitar amps, drum kits, vocals, and more. Built as part of AKG's modular system, this component integrates seamlessly with compatible capsules to deliver professional-grade performance that holds up to the demands of live gigging and session work.
Design & Build
Constructed in matte dark gray with a durable 30cm gooseneck design, the GN30 E offers the ergonomic flexibility to position the mic exactly where you need it near your sound source. The modular architecture accepts five compatible capsule options—CK31, CK32, CK33, CK47, and CK80—letting you dial in your frequency response and pickup pattern without swapping the whole assembly.
Audio Performance & Connectivity
The module delivers a full 20 to 20,000 Hz frequency bandwidth with an integrated 250Hz bass rolloff switch that cuts proximity effect and stage rumble when you need it. Audio routes through a balanced XLR 3-pin male connector with integrated phantom power adapter, supporting 9V–52V operation and drawing minimal current at 3mA for clean, noise-free transmission through your signal chain.
Key Features
- Length: 30cm (12 inches)
- Diameter: 20mm
- Frequency response: 20 Hz to 20,000 Hz
- Balanced XLR audio output, male 3-pin connector
- Integrated phantom power adapter
- Power supply range: 9V–52V
- Current draw: 3mA
- 250Hz bass rolloff switch
- LED ring indicator with ON/OFF jumper
- Recommended load impedance: 6000 Ohms
- Compatible capsules: CK31, CK32, CK33, CK47, CK80
- Finish: Matte dark gray
The GN30 E delivers the modular flexibility and audio clarity essential for miking your rig on stage or in the room where precision positioning and tonal control make the difference between a good tone and a great one.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG GN30 E is a 30cm modular gooseneck module that lets you dial in exact mic positioning for instruments, vocals, and amps on stage or in rehearsal. Swap between five different capsule options (CK31, CK32, CK33, CK47, CK80) to match your tone and pickup pattern without buying a whole new mic—built-in bass rolloff kills rumble and proximity mud. Balanced XLR output with wide phantom power support (9V–52V) keeps your signal clean and road-ready.
Frequently Asked Questions
What capsules work with the GN30 E?
The GN30 E accepts five compatible capsule options: CK31, CK32, CK33, CK47, and CK80. Each capsule offers different frequency response and pickup patterns, so you can tailor the mic to your specific source without replacing the entire gooseneck module.
Does it require phantom power, and what range does it support?
Yes, the GN30 E requires phantom power and supports a wide range from 9V to 52V, drawing only 3mA for clean operation. This broad compatibility works with most professional preamps, mixers, and audio interfaces.
What does the 250Hz bass rolloff switch do?
The integrated 250Hz bass rolloff switch reduces low-frequency rumble and proximity effect, helping you capture cleaner audio when miking close to instruments or vocals and preventing mud from handling noise and room reflections.
How long is the gooseneck, and what kind of connector does it use?
The GN30 E is 30cm (12 inches) long with a 20mm diameter, providing flexible positioning near sound sources. It outputs via a balanced XLR 3-pin male connector for professional-grade, noise-free audio transmission.
