What does boundary-layer mean, and how does it affect mic placement?

A boundary-layer microphone is designed to mount flush on a flat surface (floor, wall, or ceiling) where its hemispherical polar pattern uses the surface to reject off-axis noise and room reflections. This placement strategy captures direct sound and reduces ambient degradation, making it essential for conference tables, installed sound systems, and ambient recording in rooms with reflective surfaces.

What's the difference between the rising (R) and flat (F) frequency response modes?

The switchable dual frequency response lets you choose between a rising mode (which boosts presence for clearer speech intelligibility in noisy environments) or a flat mode (which maintains a neutral balance for general-purpose recording and ambience capture). Select based on your acoustic environment and whether you need extra speech clarity or a more natural tone.

Can this microphone handle loud sources like drums or amplifiers?

No—the AKG PZM6 D is engineered for speech, conference recording, and ambient capture, not instrument or vocal performance miking. Its 150 dB SPL max is designed for loud speech environments and room-level sound reinforcement, not close-miked instrument or band recording.

What kind of phantom power does it need?

The PZM6 D requires 12–48 V phantom power from your mixing console, interface, or preamp, which is standard on most professional audio gear. The permanently attached cable connects to any balanced XLR input on your equipment.

How noisy is this microphone in a quiet studio or conference room?

The PZM6 D has a low self-noise floor of 20 dB-A, which keeps background hum and electronic noise minimal in quiet environments. This makes it suitable for clean speech and ambient recording where noise floor matters.

Do I pay sales tax on this order?

We collect sales tax only on orders shipped to California. Orders shipped to any other US state are charged $0 sales tax at checkout when you buy direct from our website. On this item that is roughly $41 less out the door than the same listed price at a national retailer or on a marketplace. Marketplaces such as eBay, Reverb and Amazon collect sales tax in nearly every state as marketplace facilitators no matter who the seller is, so the same item at the same price costs less bought direct. Free US shipping and 30-day returns are included. Some states ask buyers to self-report use tax on out-of-state purchases.

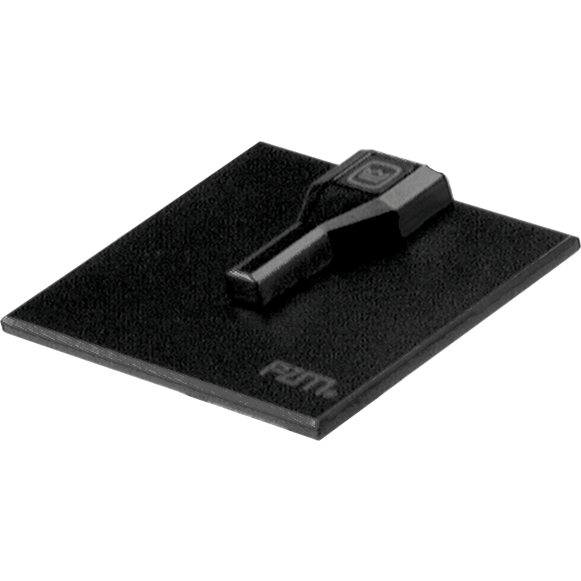

AKG PZM6 D High Performance Hemispherical Boundary Layer Microphone

The AKG PZM6 D is a compact boundary layer microphone engineered for live sound reinforcement, stage monitoring, and ambient capture in performance and venue settings. Its miniature form factor and permanently attached cable make it unobtrusive when mounted on floors, walls, or ceilings, while the switchable dual frequency response adapts the microphone to different acoustic environments and live sound demands.

Design & Build

This electret condenser microphone features a small, lightweight metal housing finished in black, measuring just 76 mm long, 63 mm wide, and 9 mm tall—ideal for discreet placement on stage or in venue spaces. The hemispherical polar pattern activates when the microphone is mounted on a boundary surface, effectively capturing sound while rejecting off-axis noise and room reflections that would otherwise muddy your mix.

Live Sound Performance

The PZM6 D delivers a 20–20,000 Hz frequency response with 7 mV/Pa open circuit sensitivity and achieves a robust 74 dB-A signal-to-noise ratio for reliable stage pickup. Maximum SPL reaches 150 dB SPL at 3% THD, enabling clean capture of loud sources without distortion; the 20 dB A-weighted self-noise floor keeps hum and background noise from clouding your signal in live settings.

Key Features

Electret condenser transducer with hemispherical polar pattern for boundary mounting
Switchable dual frequency response: rising (R) or flat (F) modes
Balanced XLR male 3-pin audio output
Audio frequency bandwidth: 20–20,000 Hz
Open circuit sensitivity: 7 mV/Pa (–43 dB re 1 volt/Pa)
Impedance: 240 ohms, balanced
Signal-to-noise ratio: 74 dB-A
Self-noise: 20 dB equivalent sound pressure level, A-weighted
Maximum sound pressure level: 150 dB SPL at 3% THD
Power requirement: 12–48 V phantom power
Compact dimensions: 76 mm × 63 mm × 9 mm
Miniature permanently attached cable with black metal housing

The PZM6 D remains a reliable choice for live sound and venue installations where a small-footprint boundary microphone must deliver consistent pickup and blend without drawing visual attention to your rig.

Condition	New
Country of Manufacture	China
