AKG WMS470 INSTRUMENT SET BD7 - Professional Wireless Microphone Syste
Share
In stock
- SKU
- 3307H00370
. Description

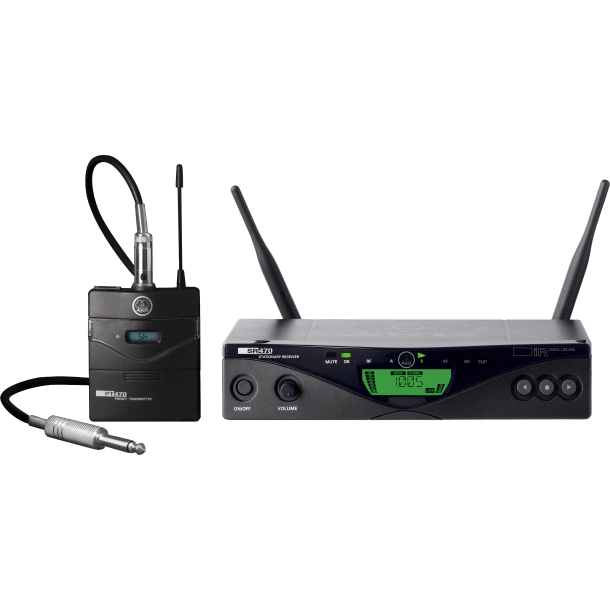

AKG WMS470 Instrument Set BD7 Professional Wireless Microphone System
The AKG WMS470 is a professional-grade wireless system engineered for touring musicians and studio professionals who demand reliability without sonic compromise. This body-pack transmitter system delivers consistent wireless performance across stage or studio environments, letting you move freely while maintaining the natural tone and detail of your instrument. Built on AKG's reputation for legendary engineering, the WMS470 has proven itself as a workhorse on countless tours and sessions worldwide.
Audio Performance & Wireless Architecture
The SR470 receiver operates on a wideband FM modulation platform with a microprocessor-controlled diversity circuit, delivering a signal-to-noise ratio of 120 dB(A) and THD below 0.3% for transparent audio reproduction. Audio bandwidth spans 35 – 20,000 Hz (±3 dB), capturing the full harmonic spectrum of instruments from bass through bright cymbals, while the 6.3 dBV / -100 dBm sensitivity ensures robust signal capture even in challenging RF environments.
System Flexibility & Connectivity
The BD7 band provides 1200 selectable frequencies across 500.1 – 530.5 MHz, supporting up to 20 simultaneous channels within the same band or 48 channels across multiple bands—giving you the flexibility to scale from solo performers to full band setups. Balanced XLR and unbalanced 1/4-inch outputs on the receiver accommodate any mixing console or interface, while the PT470 transmitter accepts standard 3-pin mini-XLR instrument cables and runs up to 14 hours on a single AA battery (alkaline, lithium, or rechargeable Ni-MH).
Key Features
- Frequency Range: Band 7 / 500.1 – 530.5 MHz with 1200 selectable frequencies
- Up to 20 simultaneous channels in single band or 48 channels across multiple bands
- Microprocessor-controlled diversity circuitry on SR470 receiver
- Signal-to-Noise Ratio: 120 dB(A) typical
- Total Harmonic Distortion: < 0.3%
- Audio Bandwidth: 35 – 20,000 Hz (±3 dB)
- Sensitivity: 6.3 dBV / -100 dBm
- Wideband FM modulation for transparent audio transmission
- PT470 transmitter: 10 or 50 mW RF output power; 14-hour battery runtime on single AA cell
- SR470 receiver: 1/2 19-inch 1U rack format; dual audio outputs (XLR balanced + 1/4" unbalanced)
- Includes rack mount kit, universal power supply, antennas, belt clip, and instrument cable
- 3-pin mini-XLR audio input on PT470 transmitter for standard instrument cables
The WMS470 combines AKG's proven wireless architecture with professional-level audio fidelity and operational simplicity, making it a reliable choice for musicians and sound engineers who need a system that delivers night after night.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The AKG WMS470 is a professional wireless instrument system built for touring and gigging musicians who need transparent tone and reliable RF performance without compromise. The body-pack transmitter and receiver deliver a 120 dB signal-to-noise ratio with less than 0.3% distortion, capturing the full harmonic spectrum of your instrument across 35–20,000 Hz while letting you move freely on stage. Choose it for its proven track record on world tours, flexible channel setup (up to 20 simultaneous channels in a single band), and 14-hour battery runtime that gets you through a full gig.
Who This Is For
| Best suited for | Live Performance, Touring, Studio Sessions, Gigging |
|---|---|
| Tonal character | Transparent audio reproduction, full harmonic spectrum capture, low distortion (< 0.3% thd), robust signal in challenging rf, wide bandwidth (35–20,000 hz) |
Frequently Asked Questions
What instruments can I use with the WMS470?
The PT470 transmitter accepts standard 3-pin mini-XLR instrument cables, so it works with any instrument using that connector type—guitar, bass, keyboard, and more. The audio bandwidth spans 35–20,000 Hz, capturing the full harmonic spectrum across a wide range of instruments.
How many channels can I run at the same time?
The BD7 band provides up to 20 simultaneous channels within a single band, or you can expand to 48 channels total by using multiple bands. The system includes 1200 selectable frequencies across 500.1–530.5 MHz for flexible frequency coordination.
How long does the battery last?
The PT470 transmitter runs up to 14 hours on a single AA battery—alkaline, lithium, or rechargeable Ni-MH cells all work. This gives you a full day of gigging or studio sessions on one charge.
What outputs does the receiver have, and will it work with my mixer?
The SR470 receiver provides both balanced XLR and unbalanced 1/4-inch outputs, so it connects to any mixing console, audio interface, or PA system. The 1/2 19-inch 1U rack format fits standard studio and live rigs.
How transparent is the audio, and will I hear signal loss?
The WMS470 delivers less than 0.3% total harmonic distortion with a 120 dB signal-to-noise ratio, ensuring transparent reproduction with virtually no audible coloration or noise. The wideband FM modulation and microprocessor-controlled diversity circuit maintain signal integrity even in challenging RF environments.
