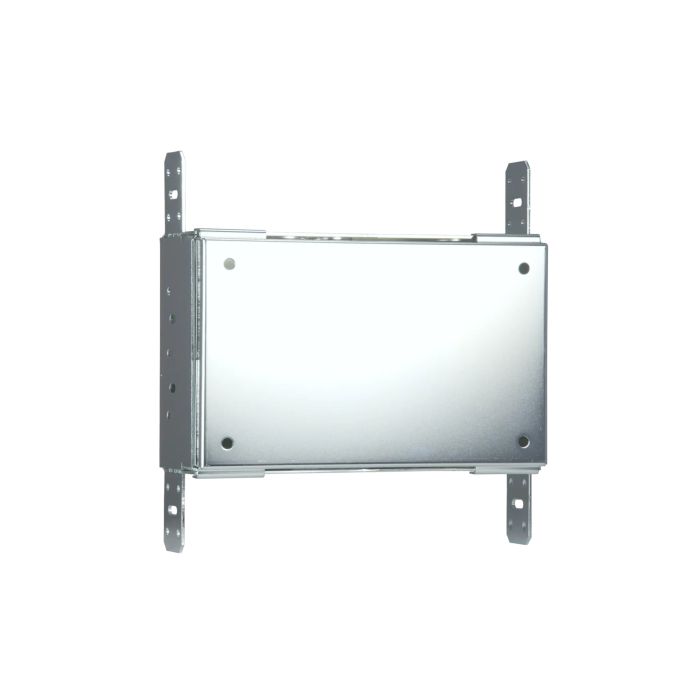

AMX CB-MXSA-07 Rough-in Box for 7" Touch Panels
Description
AMX CB-MXSA-07 Rough-in Box for 7" Touch Panels
The AMX CB-MXSA-07 is a professional-grade rough-in box built for secure, flush-mount installation of control panels during new construction and retrofit work. This enclosure provides a clean, integrated mounting solution that tucks seamlessly into wall cavities, delivering the finished appearance required in modern AV setups for venues, studios, and live-sound installations.
Installation & Compatibility
Designed for direct stud mounting during rough-in phases, this box accommodates AMX Modero X and S Series 7" wall mount touch panels and the AMX Acendo Book scheduling panel. The included wall box, cover, and mounting screws provide everything needed for standard drywall integration, with a minimum clearance requirement of 0.50 inches between the box and outer wall surface to ensure proper panel seating.
Dimensions & Physical Specifications
The enclosure measures 2.38" × 6.81" × 4.32" (6.05 cm × 17.30 cm × 10.97 cm) with cover installed, fitting cleanly into standard wall framing without requiring oversized cavities. This compact footprint keeps wall integration neat and professional while accommodating the wiring and infrastructure needed for reliable control panel deployment on the road or in permanent venues.
Key Features
- Includes wall box, cover plate, and mounting hardware
- Compatible with AMX Modero X Series 7" touch panels
- Compatible with AMX Modero S Series 7" touch panels
- Compatible with AMX Acendo Book scheduling panel
- Designed for direct mounting to wall studs during rough-in phase
- Minimum 0.50" clearance requirement between box and outer wall surface
- Overall dimensions: 2.38" W × 6.81" H × 4.32" D with cover
- Professional-grade construction for commercial AV installations
The CB-MXSA-07 delivers dependable infrastructure for seamless touch panel integration in architectural control systems, backed by AMX's track record for reliable, road-tested AV infrastructure components.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX CB-MXSA-07 is a rough-in box for flush-mounting 7" AMX touch panels during new construction or retrofit projects, designed to integrate seamlessly into wall cavities with minimal visible footprint. This product is for AV installers, sound engineers, and venue/live-sound managers who need a professional, clean mounting solution for control panels in performance spaces, conference rooms, or permanent installations. Choose it for its straightforward stud-mounting design, included hardware, and compatibility with industry-standard AMX Modero and Acendo panels—reliability and clean aesthetics that professionals depend on.
Frequently Asked Questions
What panels does the CB-MXSA-07 work with?
The box is compatible with AMX Modero X Series 7" touch panels, AMX Modero S Series 7" touch panels, and the AMX Acendo Book scheduling panel. It is designed specifically for these 7-inch control interfaces.
What's included in the box?
The kit includes the wall-mounted rough-in box, a cover plate, and all necessary mounting screws for stud installation. No additional hardware is required for standard drywall integration.
How much space do I need in the wall cavity?
The enclosure measures 2.38" W × 6.81" H × 4.32" D with cover installed and fits into standard wall framing without requiring oversized cavities. Maintain a minimum of 0.50 inches clearance between the box and the outer wall surface to ensure proper panel seating.
Is this suitable for new construction and retrofits?
Yes, the CB-MXSA-07 is engineered for both new construction rough-in phases and retrofit applications, with direct stud mounting designed for professional AV installations.
