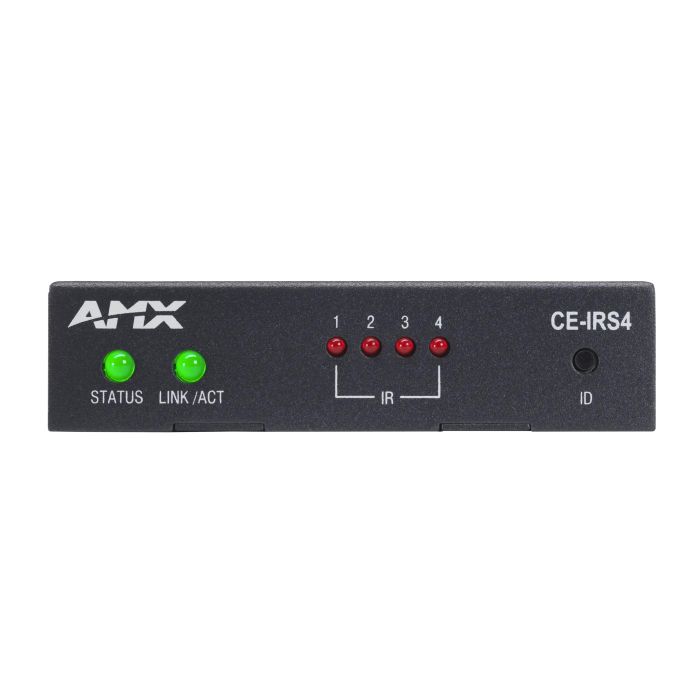

AMX CE-IRS4 Control Extender – 4 IR

The AMX CE-IRS4 is a compact control extender designed to distribute infrared and serial control signals across networked installations. Its diminutive footprint and straightforward terminal connectivity make it a practical addition to any system requiring signal extension without dedicated wiring runs. Built for integrators and system designers working with AMX control ecosystems, this unit handles the signal distribution workload transparently.

Connectivity & Network Integration

The CE-IRS4 connects via Gigabit Ethernet with PoE support, eliminating the need for separate power infrastructure and simplifying deployment in networked AV environments. IP connectivity support and an integrated web interface enable remote configuration and monitoring, while the open control API allows third-party systems to integrate seamlessly with existing AMX architectures.

Physical Design & Specifications

Measuring just 1" H × 4 1/16" W × 4 3/32" D, the unit occupies minimal rack or wall space. Four IR/S ports with 8-pin 3.5mm screw terminals provide reliable, secure connections for infrared and serial control signal extension. The device is rated for indoor use only with an operating temperature range of 0°C to 40°C (32°F to 104°F).

Key Features

Four IR/S ports for infrared and serial control signal extension
PoE (Power over Ethernet) powered — no separate power required
Gigabit Ethernet port with PoE support
IP connectivity for networked control environments
8-pin 3.5mm screw terminal connections for IR/Serial ports
Integrated web interface for device configuration
Open control API for third-party integration
Compact dimensions: 1" H × 4 1/16" W × 4 3/32" D
Operating temperature range: 0°C to 40°C (32°F to 104°F)
Designed for indoor use

The CE-IRS4 delivers straightforward IR and serial control distribution in a space-efficient package, backed by AMX's ecosystem integration capabilities.
