AMX DGX-AIE Enova DGX Audio Insert / Extract Board
Description

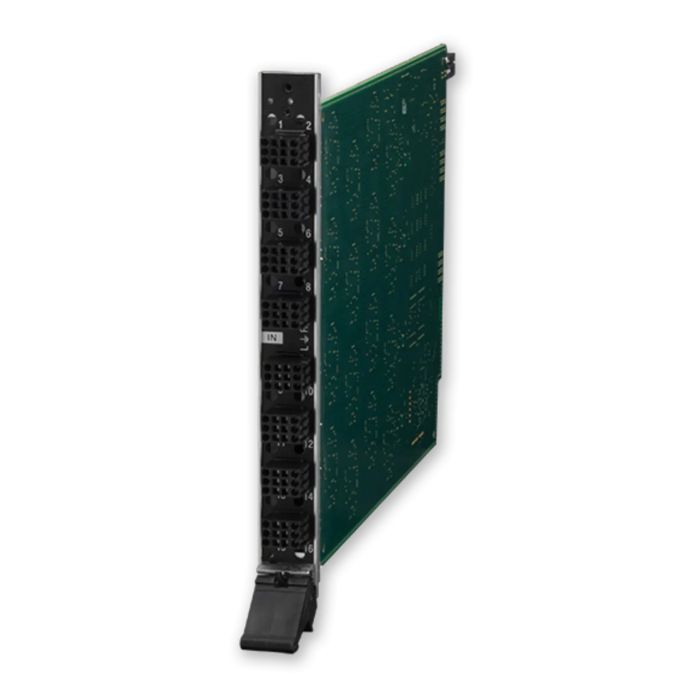

AMX DGX-AIE Enova DGX Audio Insert / Extract Board
The DGX-AIE is a professional-grade audio interface card built for routing analog stereo audio into and out of Enova DGX digital media systems. This compact, modular board installs directly into compatible Enova DGX enclosures to handle audio insertion and extraction with the reliability needed in installed venues, control rooms, and integrated AV environments where sound routing is mission-critical.
Audio Performance & Connectivity
The board delivers clean audio extraction with less than 0.04% THD+N and a signal-to-noise ratio exceeding 95 dB, holding up in professional sound reinforcement and playback applications. Audio connectivity runs through 8 pluggable dual three-position terminal blocks (28–18 AWG rated) for both input and output, supporting up to 16 channels of analog stereo audio per enclosure while enabling 2-channel L-PCM audio extraction for broadcast or recording feeds.
System Integration & Compatibility
The DGX-AIE operates at 24-bit, 48 kHz sample rate and provides insert or extract access to the first 16 video input or output positions. Full compatibility with the Enova DGX 8, 16, 32, and 64 means you can deploy this across AMX's lineup of digital matrix switches and presentation systems without hunting for workarounds.
Key Features
- Analog stereo audio support up to 16 channels per enclosure
- 24-bit, 48 kHz ADC for audio insertion and DAC for audio extraction
- Extracted audio THD+N less than 0.04%
- Signal-to-noise ratio greater than 95 dB
- Line-level analog stereo audio input and output
- 8 pluggable dual three-position terminal blocks (28–18 AWG)
- Compatible with Enova DGX 8, 16, 32, and 64 enclosures
- 2-channel L-PCM audio extraction support
- Access to first 16 video input or output positions
- Modular installation within Enova DGX chassis
The DGX-AIE brings professional audio integration to systems that demand low-distortion, high-resolution analog audio routing in compact, networked installations where uptime and fidelity matter.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX-AIE is a professional audio interface card that inserts and extracts analog stereo audio within Enova DGX digital media systems, delivering pristine, low-distortion performance (THD+N under 0.04%, SNR over 95 dB) for fixed installations, boardrooms, and broadcast facilities. Built for live-sound integrators and AV technicians who need rock-solid, transparent audio routing in permanent installations where reliability and signal integrity are non-negotiable. Choose it for mission-critical venues and command centers where analog audio must pass through networked digital infrastructure without coloration or compromise.
Who This Is For
Great for
- ✓ live sound installation
- ✓ conference/presentation systems
- ✓ fixed AV integration
- ✓ broadcast facilities
Not the best pick for
- – mobile/touring setups
- – consumer home audio
Skill level: Professional
Frequently Asked Questions
What audio formats and sample rates does the DGX-AIE support?
The board operates at 24-bit, 48 kHz for both analog-to-digital insertion (ADC) and digital-to-analog extraction (DAC), supporting 2-channel L-PCM audio extraction and up to 16 channels of analog stereo audio per enclosure.
Which Enova DGX enclosures is this card compatible with?
The DGX-AIE is fully compatible with Enova DGX 8, 16, 32, and 64 enclosures and provides insert or extract access to the first 16 video input or output positions.
What are the audio performance specifications?
Extracted audio delivers less than 0.04% THD+N and a signal-to-noise ratio exceeding 95 dB, ensuring high-fidelity, low-distortion performance suitable for critical listening and professional broadcast applications.
How does the DGX-AIE connect to analog audio sources and destinations?
The board features 8 pluggable dual three-position terminal blocks (rated 28–18 AWG) that provide line-level analog stereo input and output, allowing straightforward wiring of analog audio into and out of the Enova DGX system.
Is this card suitable for mobile or touring sound systems?
No; the DGX-AIE is designed specifically for fixed installations, command centers, conference systems, and integrated AV environments, not for mobile or touring setups.
