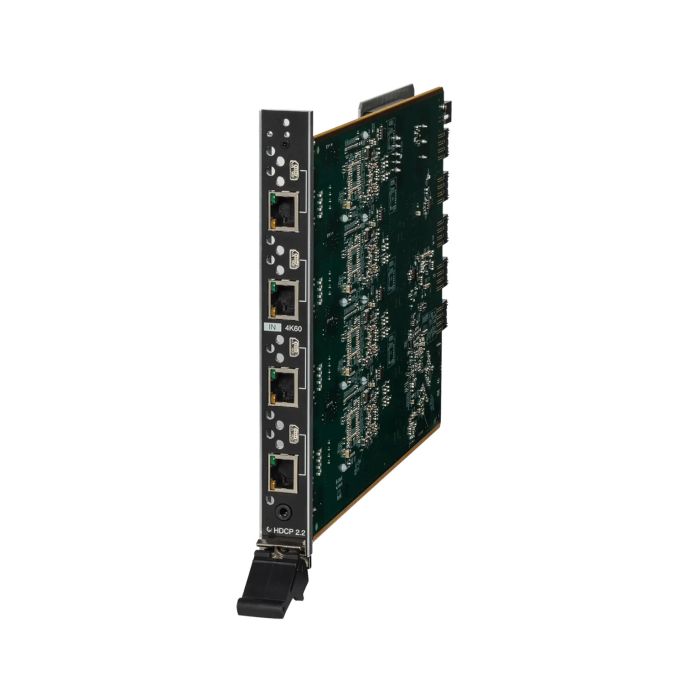

AMX DGX-I-DXL-4K60 Enova DGX DXLink 4K60 Twisted Pair Input Board
Description
AMX DGX-I-DXL-4K60 Enova DGX DXLink 4K60 Twisted Pair Input Board
This DXLink 4K60 input board is a professional-grade signal processor built for venues and installations that demand pristine 4K video distribution over standard twisted pair cabling without extra amplifiers or converters. The board integrates seamlessly into Enova DGX matrix systems, handling video, audio, control, USB, and Ethernet signals across extended cable runs, keeping your signal chain clean and your infrastructure reliable for touring, permanent install, and everything in between.
Video & Transmission Capability
The board delivers full 4K60 4:4:4 video support with HDR10 and 36-bit Deep Color, meeting HDMI 2.0 and HDCP 2.2 compliance standards. Its HDBaseT-standard architecture transmits video, bidirectional control, USB 2.0, and Ethernet over a single Cat6, Cat6A, or Cat7 cable, with shielded Cat6A and Cat7 cables reaching 328 feet (100 meters) at all resolutions—ideal for large venues, multi-room deployments, and situations where you need to run signal from a front-of-house location or remote camera position without signal degradation.
Integration & System Compatibility
Four independent input channels per board receive signals from DXLink Twisted Pair Transmitters, with integrated DXLink Power delivery to reduce external power requirements for remote transmitters. This board is compatible with all Enova DGX enclosures—the 800, 1600, 3200, and 6400 models—making it scalable from smaller venues and live-sound rigs to full-scale conference systems and broadcast facilities.
Key Features
- Four DXLink twisted pair input connections per board
- Full 4K60 4:4:4 video resolution with HDR10 support
- HDMI 2.0 and HDCP 2.2 compliance
- 36-bit Deep Color support
- HDBaseT standard compliant
- Bidirectional control signaling over twisted pair
- USB 2.0 and Ethernet pass-through capabilities
- DXLink Power integrated for transmitter operation
- Cat6A/Cat7 cable support up to 328 feet (100 m)
- Cat6 cable support up to 262 feet (80 m)
- Compatible with Enova DGX 800, 1600, 3200, and 6400 enclosures
This input board consolidates multiple signal types into a single twisted pair infrastructure, eliminating cable clutter while maintaining uncompressed 4K quality across live venues, mobile rigs, corporate installations, and any environment where dependable signal delivery matters.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX-I-DXL-4K60 is a professional DXLink 4K60 input board that routes pristine 4K video, audio, control, USB, and Ethernet signals over standard twisted pair cabling for large-scale live venues and installed AV systems. Built for touring operations and permanent installations, it handles uncompressed 4K60 4:4:4 with HDR10 across cable runs up to 328 feet, eliminating the need for external amplifiers or converters and reducing cable clutter on stage and in cable runs. This board integrates into any Enova DGX matrix enclosure (800, 1600, 3200, or 6400), making it the backbone for reliable, scalable signal distribution in theaters, performance venues, and multi-room facilities.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Install Audio
Skill level: Professional
Frequently Asked Questions
What cable types and distances does this board support?
The board supports Cat6, Cat6A, and Cat7 twisted pair cabling. Shielded Cat6A and Cat7 cables reach up to 328 feet (100 meters) at all resolutions, while standard Cat6 reaches 262 feet (80 meters). All signals—video, audio, control, USB, and Ethernet—travel over a single cable run.
Which Enova DGX enclosures is this board compatible with?
This input board works with all Enova DGX enclosure models: the 800, 1600, 3200, and 6400. The four independent input channels per board allow flexible scaling depending on your system size and signal-routing requirements.
What video specifications and standards does it support?
The board delivers 4K60 4:4:4 video resolution with HDR10 support, 36-bit Deep Color, and full HDMI 2.0 and HDCP 2.2 compliance. It uses HDBaseT-standard architecture to transmit video, bidirectional control, USB 2.0, and Ethernet over twisted pair without external amplification.
Does this board include integrated power for remote transmitters?
Yes, the board features integrated DXLink Power delivery to transmitters, reducing the need for external power supplies at remote locations and simplifying installation across extended cable runs.
