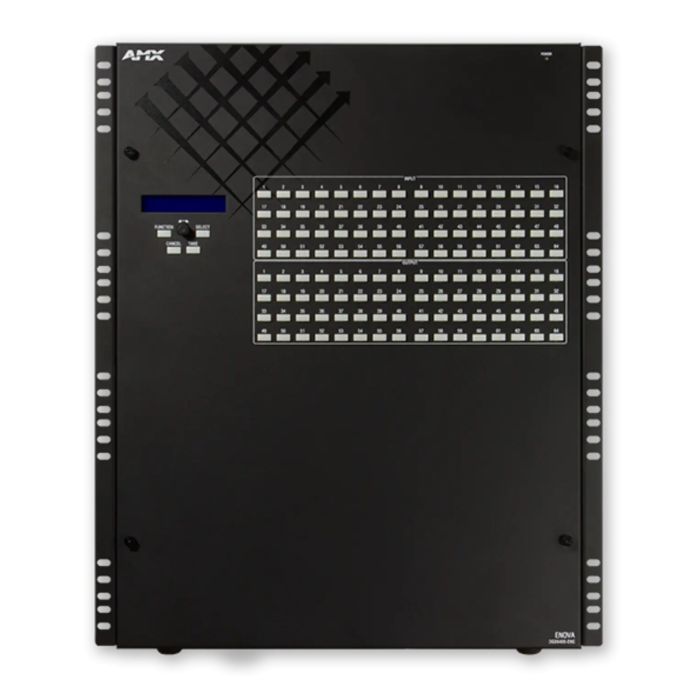

AMX DGX6400-ENC Enova DGX 6400 Enclosure
Description
AMX DGX6400-ENC Enova DGX 6400 Enclosure
The DGX6400-ENC is a professional-grade digital media switcher and AV control system built for large-scale live venues, broadcast facilities, and installed sound/AV environments. This rackmount enclosure houses a powerful switching matrix capable of managing complex video and audio routing across multiple simultaneous inputs and outputs—essential for venues handling complex productions, corporate events, and multi-room AV systems. Built with redundant power supplies and NetLinx NX integrated control, it delivers reliable signal management that won't let you down during critical events.
Switching Architecture & Capacity
The DGX 6400 supports up to a 64x64 video matrix, with expandable slots for sixteen video input boards and sixteen video output boards—four connections per board. This architecture scales from straightforward single-room setups to enterprise-level complexity across multiple venues or large installed systems. Support for 4K60 4:4:4 and Ultra High Definition (UHD) content ensures your signal chain stays current with modern production standards and future-proofs your infrastructure investment.
Control & Integration
The integrated NetLinx NX controller provides centralized command of all switching and routing functions via single IP addressing for multiple endpoints—critical for touring operations and complex venue setups. Web interface access enables remote monitoring and configuration from front-of-house or a remote location, while optional audio-switching boards add dedicated audio matrix capability for integrated video and audio workflows. Automatic DXLink endpoint setup streamlines deployment in installations with numerous remote endpoints, reducing setup time and potential configuration errors.
Key Features
- Digital media switcher with maximum 64x64 video matrix capability
- Supports 4K60 4:4:4 and Ultra High Definition (UHD) content
- NetLinx NX integrated controller for centralized system control
- Redundant power supplies for continuous operation
- Sixteen video input board slots and sixteen video output board slots
- Four connections per video board
- Web interface for remote monitoring and configuration
- Single IP addressing for multiple DXLink endpoints
- Automatic DXLink endpoint setup and discovery
- Optional audio-switching boards for dedicated audio matrix routing
- Professional rackmount enclosure form factor
The DGX6400-ENC combines high-channel-count switching, reliable redundancy, and modern control protocols into a single enclosure, making it the core component for demanding live and installed AV environments requiring scalable, dependable video and audio distribution.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX DGX6400-ENC is a professional-grade digital media switcher and AV control system built for large-scale broadcast, live event, and enterprise installations that demand complex video and audio routing at 4K60 and UHD quality. It houses a powerful 64x64 video matrix with sixteen expandable input and output board slots, redundant power supplies, and NetLinx NX integrated control for reliable, centralized management across multiple simultaneous feeds. Choose this for venues, broadcast facilities, and installations where mission-critical signal integrity, scalability, and remote monitoring are non-negotiable.
Who This Is For
Great for
- ✓ broadcast
- ✓ live event production
- ✓ large-scale AV installation
- ✓ enterprise video distribution
Not the best pick for
- – home use
- – small studio
- – live music performance
Skill level: Professional
Frequently Asked Questions
What exactly is the DGX6400-ENC, and what does it do?
The DGX6400-ENC is a professional-grade digital media switcher and AV control system housed in a rackmount enclosure. It manages complex video and audio routing across broadcast, live event production, and enterprise installations via a 64x64 video matrix, supporting up to 4K60 4:4:4 and UHD content with centralized control through the integrated NetLinx NX controller.
How many inputs and outputs does it support, and can it grow with my facility?
The DGX 6400 includes sixteen video input board slots and sixteen video output board slots, with four connections per board, allowing you to scale from modest routing needs to enterprise-level complexity. Optional audio-switching boards can be added for dedicated audio matrix capability.
What makes this suitable for broadcast and large-scale live events?
The system delivers redundant power supplies for continuous operation, supports future-proof 4K60 4:4:4 and UHD signal integrity, and features a NetLinx NX integrated controller with web interface access for remote monitoring and configuration across multiple simultaneous feeds. Automatic DXLink endpoint setup streamlines deployment in installations with numerous remote endpoints.
How is this controlled and monitored?
The integrated NetLinx NX controller provides centralized command of all switching and routing functions via single IP addressing for multiple endpoints, with web interface access enabling remote monitoring and configuration from anywhere on the network.
Is this suitable for small studios or live music venues?
No—the DGX6400-ENC is purpose-built for large-scale broadcast, enterprise video distribution, and high-end AV installations. Small studios and live music performance venues typically do not require this level of routing complexity or feature set.
