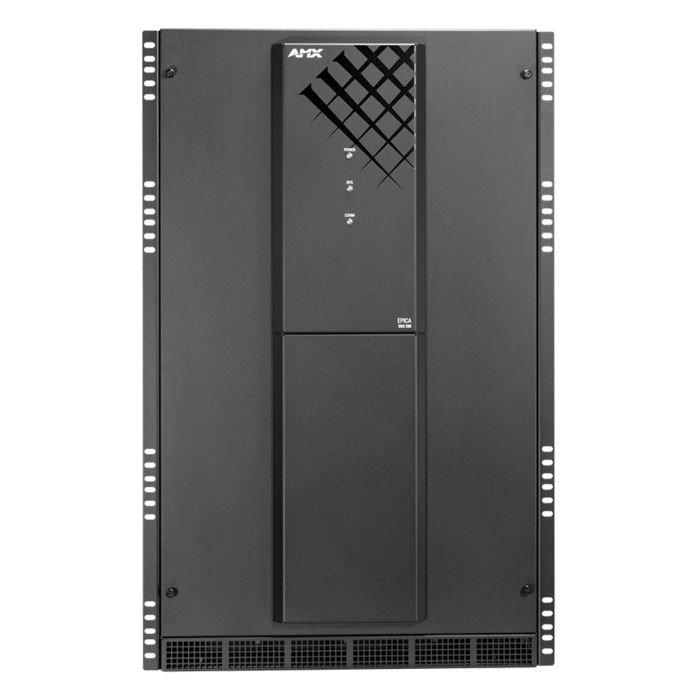

AMX EPICADGX288-ENC Epica DGX 288 Enclosure
Description
AMX EPICADGX288-ENC Epica DGX 288 Enclosure
The Epica DGX 288 is a professional-grade fiber optic matrix routing system engineered for large-scale AV installations demanding uncompressed video and embedded audio distribution. This 17 rack unit enclosure handles the density and performance requirements of broadcast, live event, and high-end commercial environments, delivering transparent signal integrity across extended fiber runs.
Matrix Capacity & Connectivity
Supports up to 288×288 matrix configurations with field-swappable modular fiber boards offering 16 connections per board, enabling custom scaling based on installation requirements. LC fiber module connectors integrate both input and output on the same connector for streamlined panel layouts and reduced physical footprint.
Signal Performance & Reliability
Delivers 10 Gbps bandwidth with support for uncompressed video, HDMI with HDCP, and embedded audio over fiber, accommodating both single mode and multimode fiber (OM3 50/125 mm up to 984 ft / 300 m). The robust design prioritizes dependable operation in touring and permanent installations—field-serviceable fiber modules, fan kits, CPU, and power supplies minimize downtime during setup and extended runs, while the enhanced cooling system with dedicated fan tray handles the thermal demands of busy venues and multiple simultaneous feeds.
Key Features
- 17 rack unit system
- Customizable 288×288 matrix with modular fiber boards (16 connections per board)
- 10 Gbps bandwidth support
- LC fiber module connectors (input and output on same connector)
- Single mode and multimode fiber support
- OM3 multimode reach up to 984 feet (300 meters)
- Uncompressed video with HDMI/HDCP and embedded audio over fiber
- 20 3/4 inch (75.247 cm) depth; 21 3/4 inch (55.245 cm) with extractors
- Approximately 198 lb (89.8 kg) per loaded enclosure
- Field-serviceable fiber modules, fan kits, CPU, and power supplies
- Enhanced cooling system with dedicated fan tray
The Epica DGX 288 combines scalable matrix architecture with robust thermal management and field-replaceable components to meet the demands of mission-critical AV routing applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX Epica DGX 288 is a professional fiber optic matrix routing system built for large-scale broadcast, live event, and touring installations that demand uncompressed video and embedded audio over extended distances. Sound and light technicians running high-end venue systems, festivals, and mobile productions rely on this 17-unit rack enclosure to handle up to 288×288 routing configurations with transparent signal integrity and low-latency performance. Choose it for mission-critical AV routing where reliability, field serviceability, and scalable modular design directly impact your show's uptime and audio/video fidelity.
Who This Is For
Great for
- ✓ broadcast
- ✓ live event production
- ✓ high-end commercial AV installations
- ✓ touring
Not the best pick for
- – home recording
- – small venues
- – budget installations
Skill level: Professional
Frequently Asked Questions
What fiber types does the Epica DGX 288 support, and how far can the signal reach?
The system supports both single-mode and multimode OM3 50/125 mm fiber, with multimode reach extending up to 984 feet (300 meters). Each modular fiber board provides 16 connections, and the LC fiber connectors integrate input and output on the same connector to minimize panel footprint.
How is the Epica DGX 288 sized and what is the physical footprint?
The enclosure is 17 rack units tall, approximately 20 3/4 inches (75.247 cm) deep without extractors and 21 3/4 inches (55.245 cm) with extractors. Loaded weight is approximately 198 pounds (89.8 kg).
What makes this system reliable for mission-critical broadcast and live event use?
The Epica DGX 288 features field-swappable fiber modules, fan kits, CPU, and power supplies, allowing rapid on-site repair without full system replacement. The enhanced cooling system with dedicated fan tray and 10 Gbps bandwidth support ensure uncompressed video and embedded audio delivery with transparent signal integrity across large installations.
Can I customize the matrix size, or is it locked at 288×288?
The system supports customizable configurations up to 288×288 through modular fiber boards, each offering 16 connections. You scale the installation based on your specific routing requirements.
Does this system support HDCP and embedded audio over fiber?
Yes—the Epica DGX 288 handles HDMI with HDCP compliance and embedded audio over fiber at 10 Gbps bandwidth, maintaining full uncompressed video quality across extended fiber runs.
