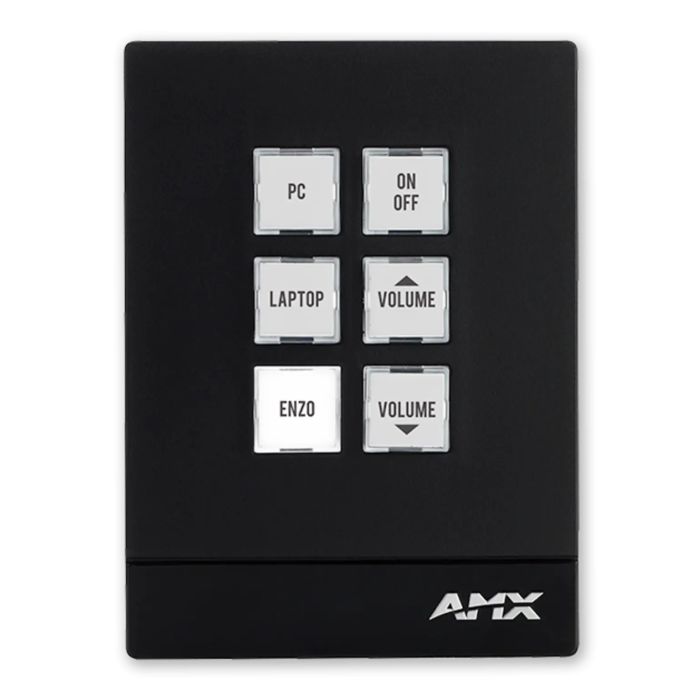

AMX MCP-106L-BL Massio™ 6-Button ControlPad - Black - Landscape
Description
AMX MCP-106L-BL Massio™ 6-Button ControlPad - Black - Landscape
The Massio MCP-106L-BL is a compact, wall-mountable control interface built for live venues, touring installations, and permanent sound system setups. Its landscape orientation and lightweight profile mount cleanly without drawing attention, while its backlit button design stays visible on stage or in any light environment—crucial for operators managing sound during a show.
Integration & Connectivity
Built on NX-series controller technology, this control pad handles serial and infrared communication alongside a dedicated 10/100 Ethernet port for TCP/IP connectivity. The inclusion of TLS/SSH communication support delivers enterprise-grade network security, essential for professional venues and touring rigs that need locked-down, encrypted device control.
Physical Design & Installation
Measuring 3 7/16" × 4 11/16" × 9/16" and weighing just 0.25 lbs, the landscape-format pad installs directly onto standard 1 gang US, UK, or EU back boxes with included mounting hardware. The slim profile keeps it flush to the wall while the six backlit buttons remain fully accessible and responsive during operation.
Key Features
- 6-button design with backlighting
- Landscape orientation (3 7/16" × 4 11/16" × 9/16")
- Weight: 0.25 lbs (0.11 kg)
- Mounts to standard 1 gang US, UK, or EU back boxes
- NX-series controller technology with latest networking features
- Single 10/100 Ethernet port for TCP/IP communication
- Serial and infrared (IR) control port support
- TLS/SSH communication support for network security
- Includes metal mounting bracket and connectors (2-pin and 3-pin female)
- Includes M3.5 × 30MM and #6-32 × 1.25" mounting screws
- Comes with sheet of 70 pre-printed button labels
- Color: Black
The MCP-106L-BL delivers the dependable networked control and professional security standards that live sound operators and install teams rely on, making it an essential control point for modern venue and touring rigs.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX Massio MCP-106L-BL is a compact, wall-mounted control pad with six backlit buttons designed for professional AV installations and networked conference rooms. It connects via Ethernet with enterprise-grade security (TLS/SSH) and supports serial/infrared control, making it reliable for venues and installed systems that demand secure, hands-on command over distributed audio and video gear. Choose it for bulletproof integration into commercial spaces where dependable networked control and encrypted device management matter.
Who This Is For
Great for
- ✓ commercial AV installations
- ✓ networked control systems
- ✓ conference rooms
- ✓ integrated audiovisual environments
Not the best pick for
- – home consumer use
- – portable/mobile applications
Skill level: Professional
Frequently Asked Questions
What surfaces and wall types does the MCP-106L-BL mount to?
The pad mounts directly to standard 1 gang US, UK, or EU electrical back boxes using the included metal mounting bracket and screws (M3.5 × 30mm and #6-32 × 1.25 inch). Its compact landscape footprint (3 7/16 inches wide × 4 11/16 inches tall) fits neatly into standard wall-box openings with minimal protrusion.
How does it connect to networked AV systems?
The MCP-106L-BL features a 10/100 Ethernet port for TCP/IP communication, plus serial and infrared control options. It supports TLS/SSH encryption for secure, enterprise-grade networked control of distributed devices in professional installations.
Can I customize the button labels?
Yes—the pad comes with a sheet of 70 pre-printed button labels, so you can label each of the six buttons to match your specific control workflow.
Is this suitable for portable or rental use?
No—the MCP-106L-BL is designed for permanent wall installation in commercial AV environments, conference rooms, and integrated networked installations. It is not intended for portable or mobile applications.
What connectivity and mounting hardware is included?
Included are the metal mounting bracket, 2-pin and 3-pin female connectors, M3.5 × 30mm and #6-32 × 1.25 inch mounting screws, and a sheet of pre-printed button labels.
