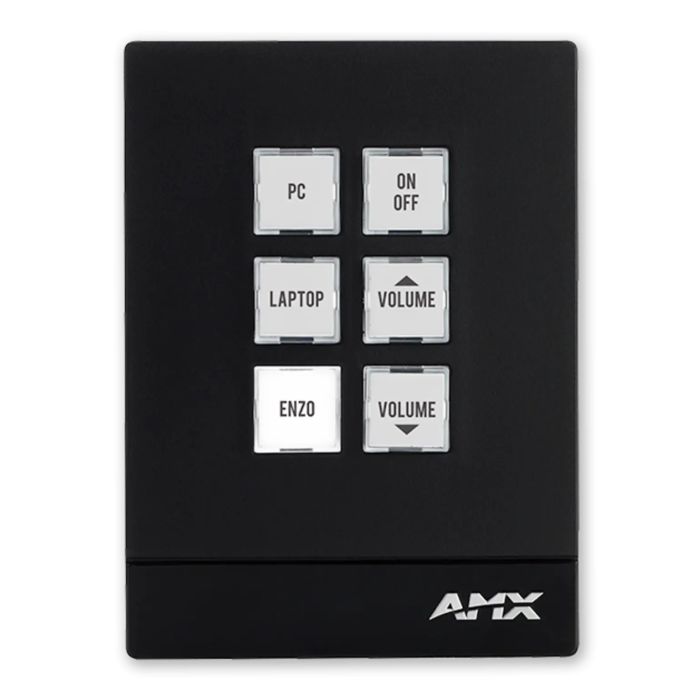

AMX MCP-106P-BL Massio™ 6-Button ControlPad - Black - Portrait
Description
AMX MCP-106P-BL Massio™ 6-Button ControlPad - Black - Portrait
The AMX MCP-106P-BL is a compact, wall-mounted control interface built for live venues, studios, and installed sound systems. Its slim profile and portrait orientation fit seamlessly into standard wall gang boxes, delivering tactile control over your networked AV setup without taking up precious wall real estate. This device puts professional-grade networking and responsive button control directly at your fingertips—ideal for sound techs, venue operators, and system integrators who need reliable, no-nonsense hardware.
Design & Installation
Built for permanent installation in venues and control rooms, the MCP-106P-BL mounts directly onto standard 1-gang US, UK, or EU back boxes using the included metal mounting bracket and hardware. At just 4 11/16″ × 3 7/16″ × 9/16″ and weighing approximately 0.25 lbs, it occupies minimal wall space while maintaining full operational capability and a professional appearance in any environment.
Networking & Control Architecture
Connectivity is handled via a single 10/100 Ethernet port with TCP/IP communication and Auto MDI/MDI-X enabled for plug-and-play network integration. The device leverages AMX's NX-series controller technology, delivering enterprise-grade networking features, modern security protocols, and robust processing power in a compact form factor.
Key Features
- 6 programmable buttons for customizable control functions
- Portrait orientation optimized for vertical wall installations
- Mounts to standard 1-gang US, UK, or EU back boxes
- Single 10/100 Mbps Ethernet port with TCP/IP communication
- Auto MDI/MDI-X enabled for simplified network deployment
- Shares controller technology with AMX NX-series flagship systems
- Advanced networking and security features built-in
- Includes metal mounting bracket, 2-pin and 3-pin female connectors, and mounting screws
- Compact dimensions: 119 mm × 87.5 mm × 13.9 mm
- Black finish integrates discreetly into modern installations
The MCP-106P-BL combines professional-grade networking infrastructure with intuitive tactile control, making it dependable hardware for venues, theaters, studios, and installed systems where reliability and straightforward operation matter.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AMX MCP-106P-BL is a compact, wall-mounted control pad with 6 programmable buttons designed for integrated AV and live-sound systems in venues and performance spaces. Its portrait orientation and slim profile fit standard wall boxes without consuming space, while enterprise-grade Ethernet networking and security features keep your system reliable during shows and events. Choose this for permanent installations where you need tactile, responsive control of lighting, video, or audio routing without cluttering your wall or stage infrastructure.
Frequently Asked Questions
What wall boxes and mounting systems does the MCP-106P-BL work with?
The device mounts directly to standard 1-gang back boxes (US, UK, or EU) using the included metal mounting bracket and hardware. Its compact dimensions (4 11/16″ × 3 7/16″ × 9/16″) fit seamlessly into existing wall infrastructure.
How does it connect to my AV or networked system?
The MCP-106P-BL uses a single 10/100 Mbps Ethernet port with TCP/IP communication and Auto MDI/MDI-X enabled for plug-and-play network integration. It shares controller technology with AMX's NX-series systems and includes enterprise-grade networking and security features.
What can the 6 buttons control?
All 6 buttons are fully programmable, allowing you to customize control functions for your specific system needs—such as lighting, video switching, audio routing, or any other networked AV command your installation requires.
Is this suitable for permanent installation?
Yes, the MCP-106P-BL is built specifically for permanent wall-mounted integration in professional AV and networked environments. Its professional appearance, compact footprint, and enterprise-grade networking make it ideal for fixed installations in venues, studios, and control rooms.
What's included in the package?
The device comes with a metal mounting bracket, 2-pin and 3-pin female connectors, and mounting screws for installation to standard wall back boxes.
