What kind of audio interfaces or consoles does the BLU-100 work with?

The BLU-100 integrates into systems using standard networked audio protocols over Category 5e Ethernet. It connects to consoles, interfaces, and control systems that support its network topology; the architecture supports up to 60 nodes with fault tolerance, making it suitable for large distributed installations.

How far can I run cables from the BLU-100 to other devices?

The unit supports distances up to 100 meters (300 feet) on Category 5e cabling via its RJ45 Ethernet connector, making it ideal for spreading audio across large venues and multi-room installations.

What is the latency, and will it affect live sound or recording?

The BLU-100 operates with 0.23ms latency at 48kHz in normal operation and just 0.08ms pass-through latency, which is imperceptible in live and recording contexts and suitable for real-time applications.

Does each input support phantom power, and can I control gain remotely?

Yes, all 12 analog inputs feature per-channel selectable phantom power and software-configurable gain in 6dB steps up to +48dB, allowing remote control across the network.

Can this device integrate with external control systems like lighting or automation?

Yes, the BLU-100 includes 12 control inputs and 6 logic outputs (0 or +5V unloaded) that enable integration with external control systems and devices for comprehensive venue automation.

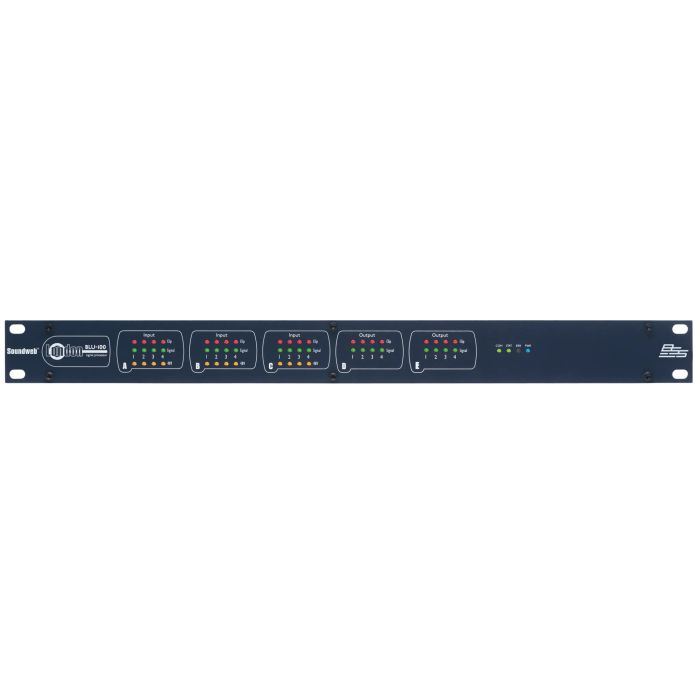

BSS BLU-100 I/O Device

The BSS BLU-100 is a professional networked audio interface designed for systems requiring flexible analog and digital I/O in a compact 1U rack format. This device excels in live sound, installation, and broadcast environments where remote audio routing and low-latency performance are essential. Its robust architecture leverages standard Category 5e cabling to distribute audio across large venue networks without compromising signal integrity.

I/O Configuration & Connectivity

The unit provides 12 analog inputs and 8 analog outputs, each with software-configurable gain in 6dB steps up to +48dB and selectable phantom power per channel. Beyond audio, 12 control inputs and 6 logic outputs enable integration with external control systems and devices, while an RJ45 Ethernet connector supports distances up to 100 meters on Category 5e cable, making it ideal for distributed systems across large installations.

Network Performance & Reliability

The 48-channel digital audio bus operates with exceptionally low latency—only 0.23ms at 48kHz in normal operation and just 0.08ms pass-through latency. The network topology supports up to 60 nodes, providing fault-tolerant redundancy essential for mission-critical applications. Power consumption remains minimal at under 55VA, and the unit operates reliably across standard AC mains (100–240V, 50/60Hz) and temperature ranges of 5–35°C.

Key Features

12 analog inputs with software-configurable gain (6dB steps, up to +48dB) and per-channel phantom power
8 analog outputs with independent control
12 control inputs and 6 logic outputs for external device integration
48-channel low-latency digital audio bus via standard Category 5e cabling
RJ45 Ethernet connectivity; maximum 100m/300ft distance between devices
Ultra-low latency: 0.23ms at 48kHz; pass-through latency 0.08ms at 48kHz
Network architecture supports up to 60 nodes with fault tolerance
Control Input Voltage 0–4.5V; Logic Output Voltage 0 or +5V unloaded (10mA source, 60mA sink)
Compact 1U rack format (1.75" H × 19" W × 9.0" D); 6.4 lbs
Low power consumption under 55VA; operates 5–35°C
Mains voltage 100–240V AC, 50/60Hz compatible

The BLU-100 delivers professional-grade networked audio distribution built for the dependability and performance standards required in demanding live and installed systems.
