Cinema 3733-M/HF

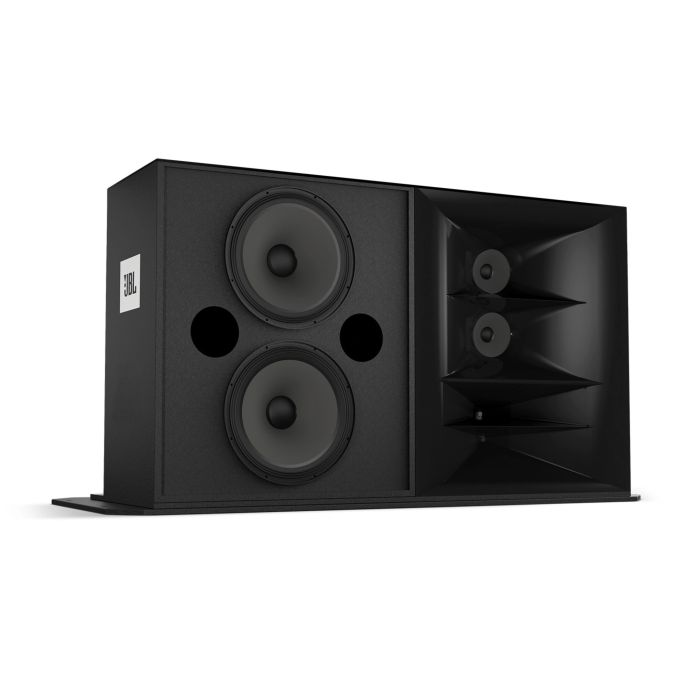

JBL Cinema 3733-M/HF Professional Cinema Speaker System

The Cinema 3733-M/HF is a three-way cinema-grade loudspeaker designed for serious commercial audio installations where articulate dialogue reproduction and dynamic range are non-negotiable. This is a compact yet powerful system engineered for cinema, auditorium, and large-format commercial environments that demand professional reliability and consistent coverage.

Audio Performance & Coverage

This system delivers 104 dB SPL at 2.83V/1m with individual driver sensitivities reaching 114 dB SPL in the high-frequency section, ensuring commanding output across large venues. The 100-degree horizontal coverage angle at -6dB provides consistent sound throughout the listening area, while dual crossover frequencies at 350 Hz and 1.2 kHz enable seamless blending across the three-way design for transparent midrange and articulate highs.

System Design & Construction

Built around dual 165 mm (6.5 in) mid-frequency drivers with 38 mm voice coils paired with a 2415-XP high-frequency compression driver featuring an advanced waveguide design, this loudspeaker excels at reproducing complex program material with clarity and precision. The compact cabinet—measuring 1000 mm × 1648 mm × 450 mm (39.37 in × 64.88 in × 17.75 in) and weighing 71.8 kg (158 lb)—fits standard cinema and commercial mounting while maintaining the acoustic performance required for professional installations.

Key Features

• Frequency Response (±3 dB): 40 Hz – 19 kHz
• Extended Frequency Response (-10 dB): 30 Hz – 20 kHz
• System Input Power Rating: 300 watts
• System Sensitivity: 104 dB SPL @ 2.83V/1m (MF: 108 dB SPL; HF: 114 dB SPL)
• Horizontal Coverage Angle (-6 dB): 100 degrees
• Nominal Impedance: 8 Ohms (MF: 12 Ohms, HF: 8 Ohms)
• Dual 165 mm mid-frequency drivers with 38 mm voice coils
• 2415-XP compression driver with advanced waveguide technology
• Crossover Frequencies: 350 Hz and 1.2 kHz
• Compact cinema-grade enclosure: 1000 × 1648 × 450 mm
• Net Weight: 71.8 kg (158 lb)

The Cinema 3733-M/HF combines proven cinema-audio engineering with manageable dimensions and weight, making it an intelligent choice for installations demanding professional sound with practical real-world deployment.
