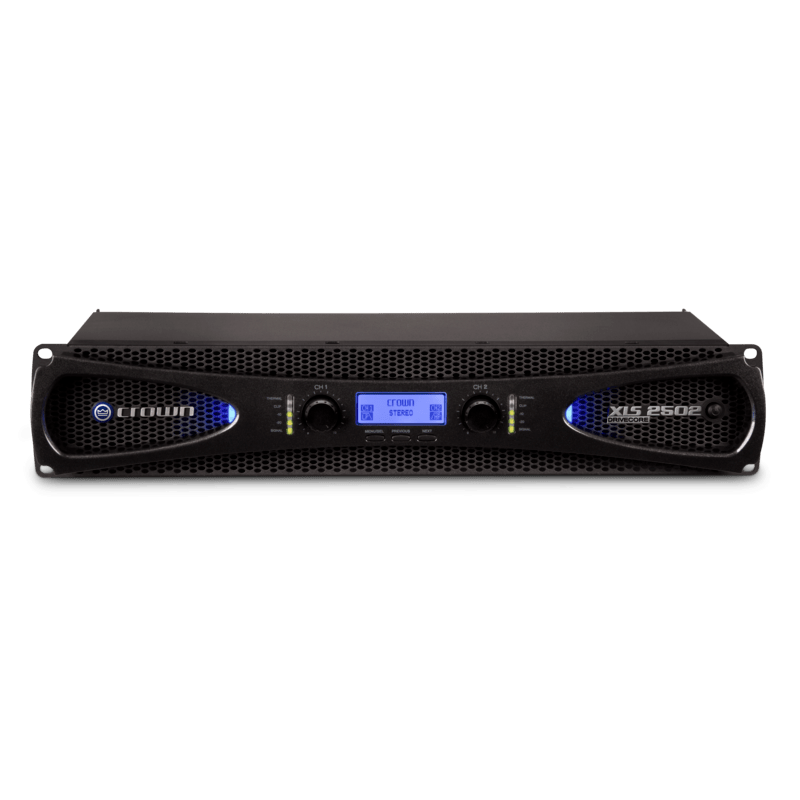

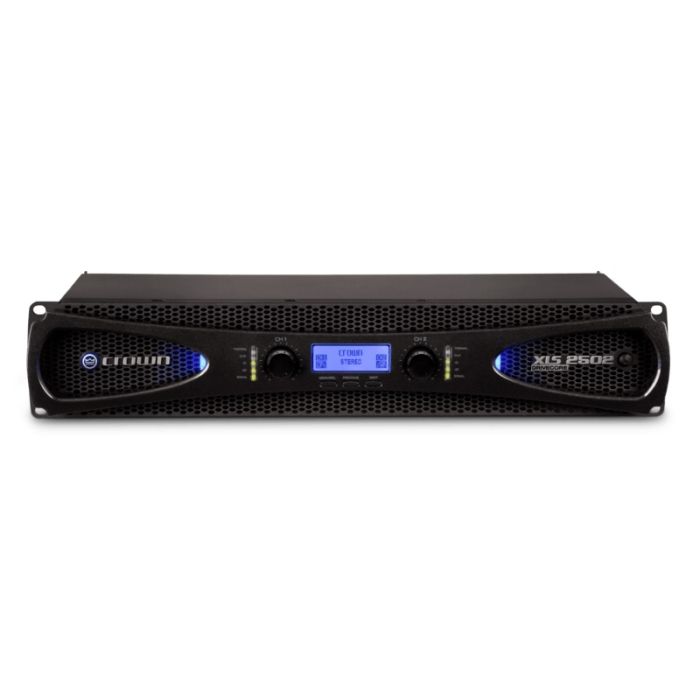

Crown Audio XLS2502 Two-channel 775W Power Amplifier
Out of stock
- SKU
- NXLS2502-0-US
Description
Crown Audio XLS2502 Two-channel 775W Power Amplifier
The XLS2502 is built for the road and the rig—a compact, lightweight powerhouse that fits a standard 2U rack slot and delivers the headroom touring musicians demand. Its Class D DriveCore technology runs cool and efficient, maintaining pristine audio clarity through marathon sets and demanding venue loads. The redesigned front panel features a display three times larger than its predecessor, keeping essential settings visible and adjustable on stage without fumbling.
Power & Efficiency
This amp outputs 440W per channel at 8 ohms, 775W at 4 ohms, and 1200W at 2 ohms, with bridged-mode capability reaching 2400W at 4 ohms for the headroom you need to cut through any room. The ultra-efficient DriveCore topology keeps the 10.8-lb chassis cool under load with forced-air fan cooling, so you can run hard without thermal stress during extended gigs.
Audio Quality & Control
The XLS2502 delivers transparent, tight speaker control with THD below 0.5%, signal-to-noise ratio greater than 103dB, and damping factor exceeding 200—the hallmarks of a professional amp that stays locked in across the 20 Hz to 20 kHz frequency response. The integrated PureBand Crossover System, bandpass filters per channel, and Peakx Limiters give you surgical precision over your rig's tone, protecting drivers while maximizing your system's potential.
Key Features
- 440W per channel at 8 ohms; 775W per channel at 4 ohms; 1200W per channel at 2 ohms
- 2400W bridged mode at 4 ohms; 1550W bridged mode at 8 ohms
- Class D amplifier with Crown DriveCore ultra-efficient technology
- 19" x 3.5" x 10.7" dimensions; 2U rack space; 10.8 lbs
- Frequency response 20 Hz to 20 kHz, +0/-1 dB
- THD < 0.5%; Signal-to-Noise >103dB; Damping Factor > 200; IMD < 0.3%

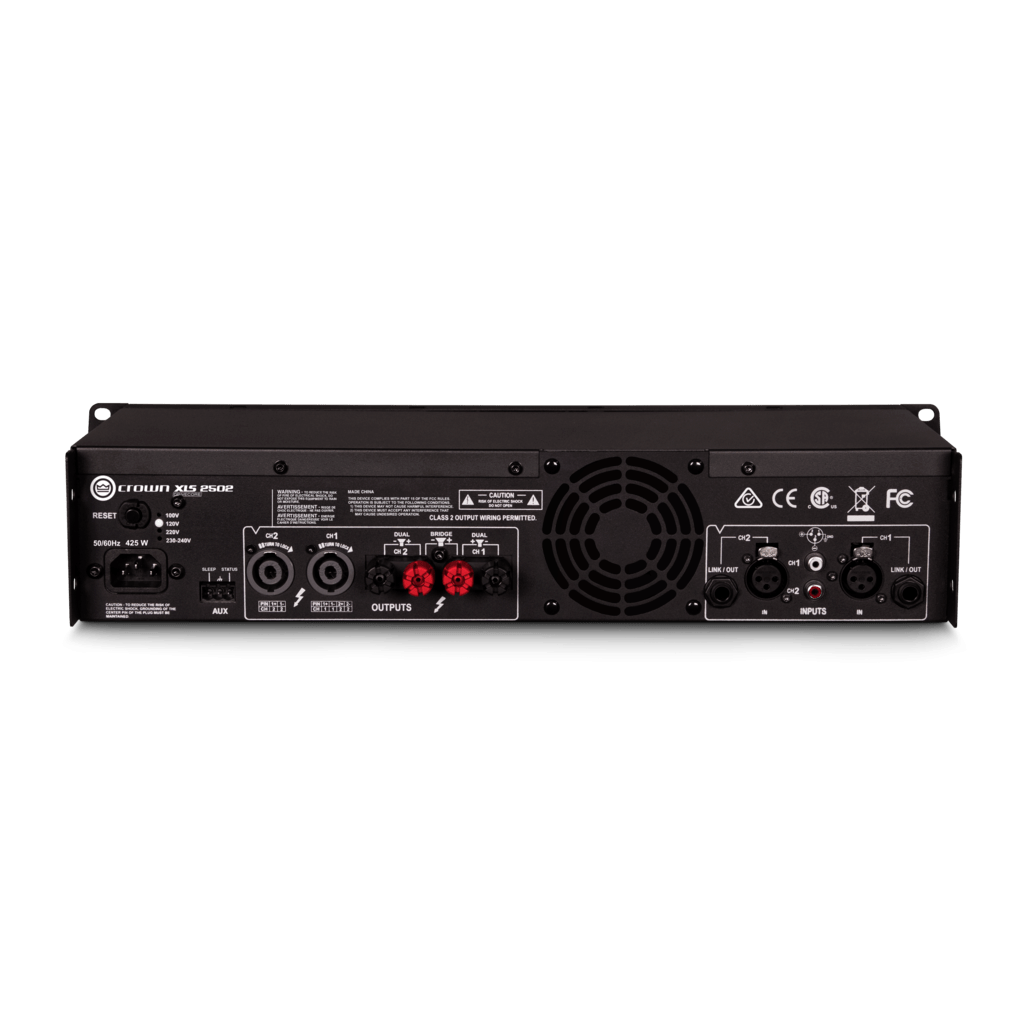

- 2x XLR, 1x stereo RCA, 2x 1/4" inputs; 2x speakON and 2x binding post outputs
- Selectable input sensitivity: 1.4Vrms and .775Vrms options
- Integrated PureBand Crossover System with bandpass filter per channel
- Peakx Limiters for output protection and speaker safety
- Three times larger LCD display for parameter monitoring
- 100V-240V, 50/60 Hz universal power input; efficient forced-air cooling
The XLS2502 pairs serious stage power with a lightweight footprint and professional DSP tools—the ideal platform for touring acts, permanent installations, and players who demand reliability night after night.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The Crown Audio XLS2502 is a compact 2U power amplifier delivering 775W per channel at 4 ohms with Class D efficiency, built for touring and installed sound systems that demand clean, cool operation. Live sound engineers and touring crews choose it for its lightweight 10.8-lb chassis, professional-grade DSP controls including crossover and limiter tools, and reliable speaker management across long nights of operation. The ultra-efficient DriveCore topology eliminates thermal stress, while the redesigned front panel and three-times-larger display make real-time parameter adjustments straightforward during setup and soundcheck.
Frequently Asked Questions
What's the power output at different speaker impedances?
The XLS2502 delivers 440W per channel at 8 ohms, 775W per channel at 4 ohms, and 1200W per channel at 2 ohms. In bridged mode it reaches 2400W at 4 ohms and 1550W at 8 ohms.
Will this amplifier stay cool during long performances or sessions?
Yes. The Class D DriveCore technology is ultra-efficient and generates minimal heat, paired with forced-air fan cooling to eliminate thermal stress during extended operation.
What audio quality and control features does it include?
The amp delivers THD below 0.5%, signal-to-noise ratio greater than 103dB, and damping factor exceeding 200. It includes an integrated PureBand Crossover System, bandpass filters per channel, and Peakx Limiters for professional-grade speaker protection and tuning.
What connections and inputs does the XLS2502 have?
Inputs include 2x XLR, 1x stereo RCA, and 2x 1/4-inch; outputs are 2x speakON and 2x binding posts. Selectable input sensitivity accommodates both microphone and line-level sources.
How does it fit in a standard rack, and how heavy is it?
The XLS2502 occupies a standard 2U rack space with dimensions of 19 inches wide by 3.5 inches tall by 10.7 inches deep, and weighs only 10.8 lbs, making it easy to transport and install.
