Crown DCI2X300 DCI2X300 Analog
Description

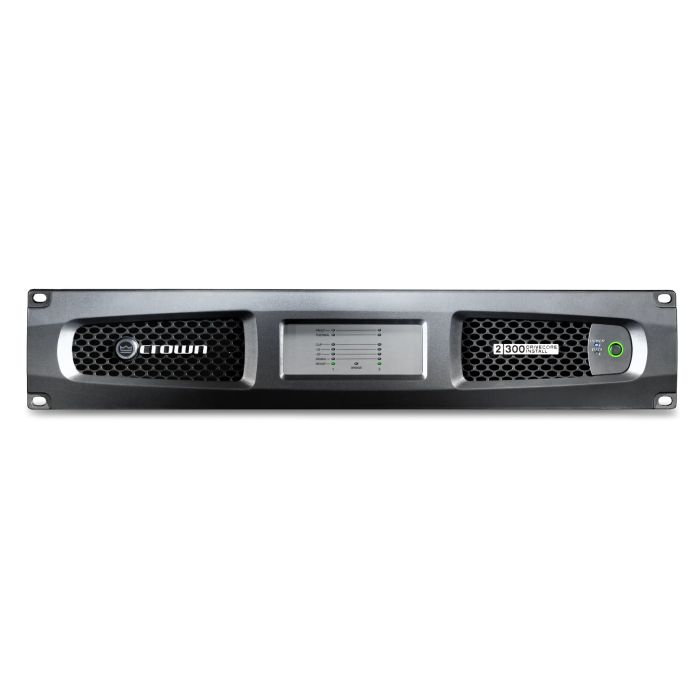

Crown DCI2X300 DCI2X300 Analog Amplifier
The Crown DCI2X300 is a compact 2-channel power amplifier built for live sound engineers and touring operations where reliability and consistent performance are non-negotiable. Its lightweight 2-rack-unit form factor delivers professional-grade amplification without requiring dedicated space, while the Class-D DriveCore topology ensures efficient operation and minimal thermal load—crucial for venues and trucks running long sets.
Power & Amplification
This amp produces 300W per channel at 4 ohms and 8 ohms, with 150W available at 2 ohms and 16 ohms, giving your system flexibility across speaker loads and venue configurations. The Class-D architecture achieves high efficiency while maintaining the output headroom needed for demanding rooms and outdoor rigs, and includes Direct Drive Constant Voltage capability for 70Vrms or 100Vrms distributed systems so you can adapt to different installation types without swapping gear.
Audio Performance & Connectivity
Audio quality is exceptional, with a signal-to-noise ratio exceeding 108 dB (A-weighted) and total harmonic distortion of just 0.35% at full rated power, ensuring clean amplification across the entire 20 Hz–20 kHz spectrum—no coloration or noise floor issues during live runs. The amp accepts both analog and digital inputs with networking monitoring and control, plus programmable general-purpose I/O ports and onboard DSP for integration into larger system architectures, making it straightforward to fit into modern mixed rigs.
Key Features
- 2-channel speaker amplifier, 300W @ 4Ω / 300W @ 8Ω / 150W @ 2Ω / 150W @ 16Ω
- Class-D amplifier with DriveCore technology for efficiency and reliability
- Frequency Response: ±0.25 dB (8Ω, 20 Hz–20 kHz)
- Signal-to-Noise Ratio: >108 dB A-weighted
- Total Harmonic Distortion: 0.35% at full rated power (20 Hz–20 kHz)
- Damping Factor: >1000 (20 Hz–100 Hz)
- Direct Drive Constant Voltage support (70Vrms or 100Vrms)
- Voltage Gain: 34 dB with selectable input impedance (10 kΩ balanced / 5 kΩ unbalanced)
- Universal AC input: 100–240 VAC, 50/60 Hz with advanced PFC power supply
- Auto-standby mode drawing less than 1W after 30 minutes of no audio input
- Programmable general-purpose I/O ports and digital signal processing
- Compact 2-rack-unit form factor
The DCI2X300 combines pro-grade amplification specifications with networked control and low idle power consumption, making it equally reliable in permanent venues and on the road.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The Crown DCI2X300 is a compact 2-channel power amplifier delivering 300W per channel at 4 and 8 ohms, built on Class-D DriveCore topology for efficient, reliable operation on the road or in fixed installations. Its clean 0.35% THD, >108 dB signal-to-noise ratio, and flexible impedance matching make it dependable for touring musicians and sound engineers who need consistent amplification without compromise. Choose it for its road-proven reliability, minimal thermal output, and networked control options that integrate seamlessly into larger touring or venue systems.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Studio Sessions
- ✓ Touring
Skill level: Professional
Frequently Asked Questions
What power do I get at different impedances?
The DCI2X300 delivers 300W per channel at both 4 ohms and 8 ohms, 150W at 2 ohms, and 150W at 16 ohms, giving you flexible matching across various speaker configurations.
Can I use this for distributed 70V or 100V systems?
Yes; the amp includes Direct Drive Constant Voltage capability for both 70Vrms and 100Vrms installed systems, making it suitable for larger venues and permanent installations.
What are the audio specs and connectivity options?
It achieves 0.35% THD at full power, signal-to-noise exceeding 108 dB (A-weighted), and a flat ±0.25 dB response (20 Hz–20 kHz). Connectivity includes analog and digital inputs, programmable general-purpose I/O, onboard DSP, and networking for remote monitoring and control.
How much rack space and power does it need?
The DCI2X300 occupies just 2 rack units and includes an advanced PFC power supply accepting universal 100–240 VAC input; it draws less than 1W in auto-standby mode after 30 minutes of silence, making it efficient for touring and permanent rigs.
Is this amp suitable for touring?
Yes; its lightweight 2RU form factor, Class-D efficiency minimizing heat output, and networked control make it ideal for touring rigs where reliability and compact footprint are essential.
