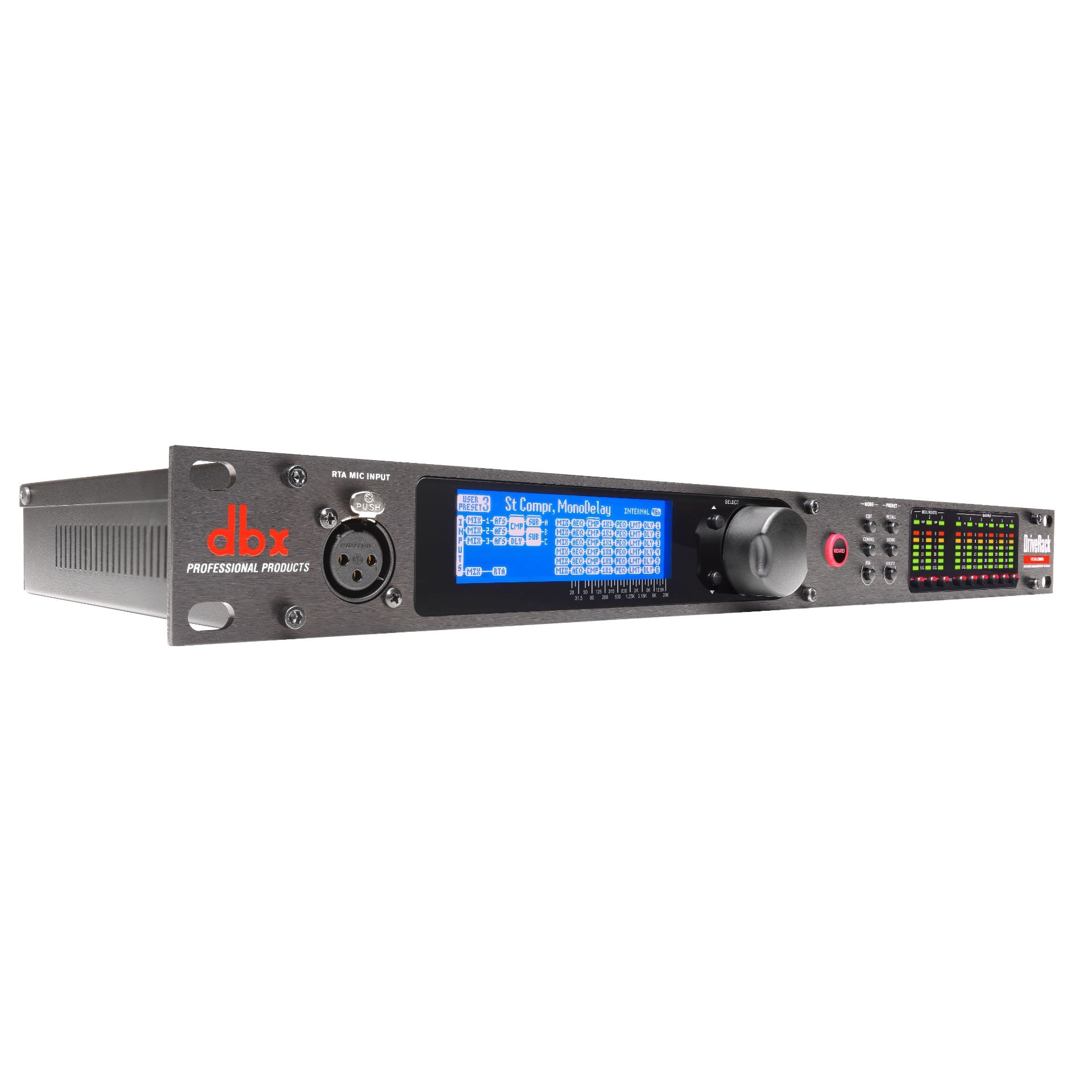

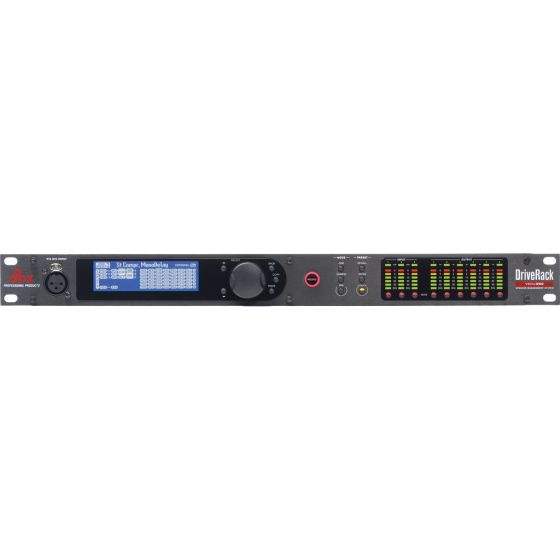

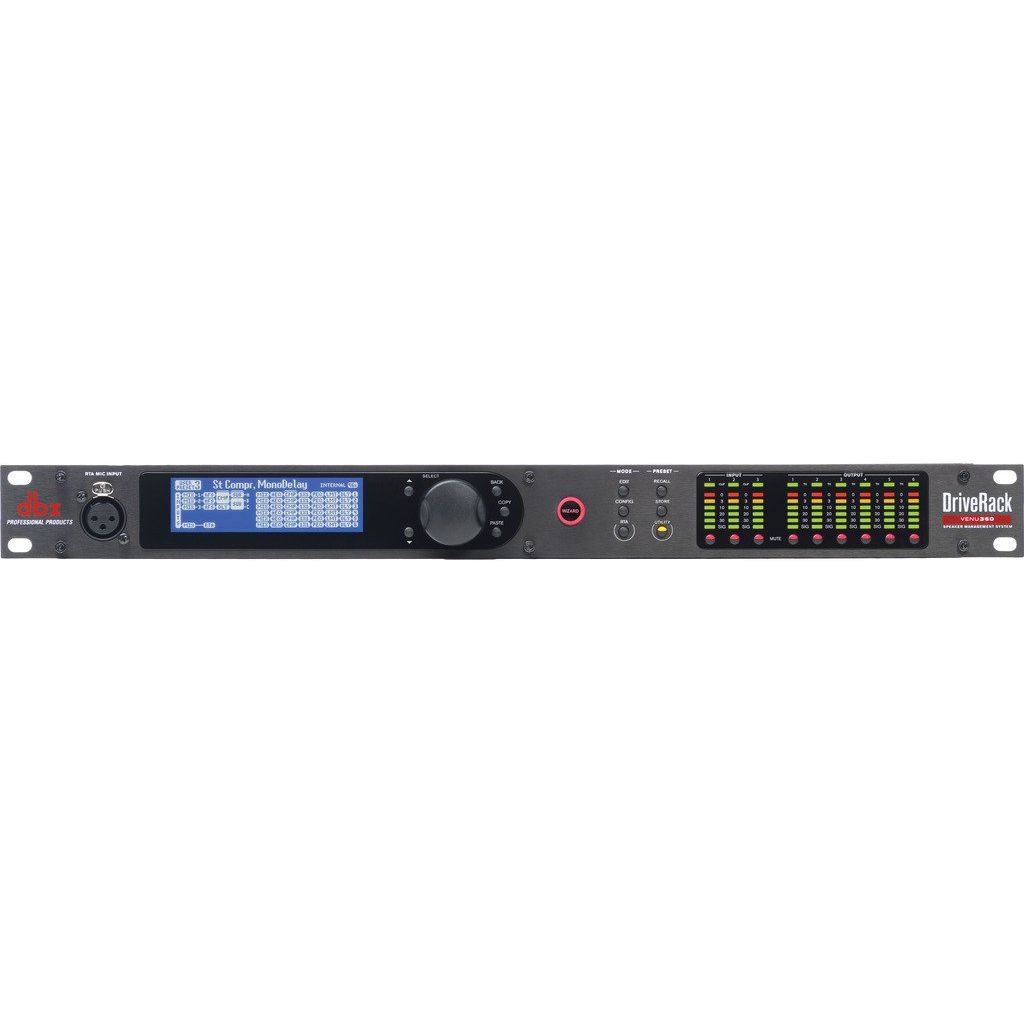

dbx DriveRack VENU360 Complete Loudspeaker Management System

Share
Pin it
Login to earn Guitar Bucks for sharing!
dbx DriveRack VENU360 Complete Loudspeaker Management System

In stock

SKU
DBXVENU360-V
Pay by credit or debit card at checkout
Or check out instantly with
No sales tax on orders shipped outside California Most national retailers and online marketplaces now collect sales tax in nearly every state. Shipping outside California keeps roughly 6–10% in your pocket. Learn more
Members save 5% in the cart. Sign in or create a free account - it takes a minute and the discount is taken off at checkout.
Description

dbx DriveRack VENU360 Complete Loudspeaker Management System

The DriveRack VENU360 is a compact yet powerful loudspeaker management processor that handles the core work of keeping your PA system tight and coherent night after night. Its rackmount form factor delivers professional-grade crossover management, EQ, delay alignment, and system measurement in a single integrated platform—no extensive reconfiguration needed between gigs or venues. Whether you're running a permanent installation, touring regionally, or servicing multiple rooms, this unit keeps your loudspeaker arrays phase-aligned and frequency-balanced without eating up your rack space.

Audio Processing & Performance

32-bit floating-point processing at 48 kHz or 96 kHz sample rates preserves your mix with minimal noise or artifacts. The 24-bit A/D converter with dbx Type IV™ Conversion System captures inputs with 117 dB A-weighted dynamic range, while 2.57 ms latency at 48 kHz (or 2.28 ms at 96 kHz) keeps analog and digital signal chains phase-coherent across your entire system.

System Control & Connectivity

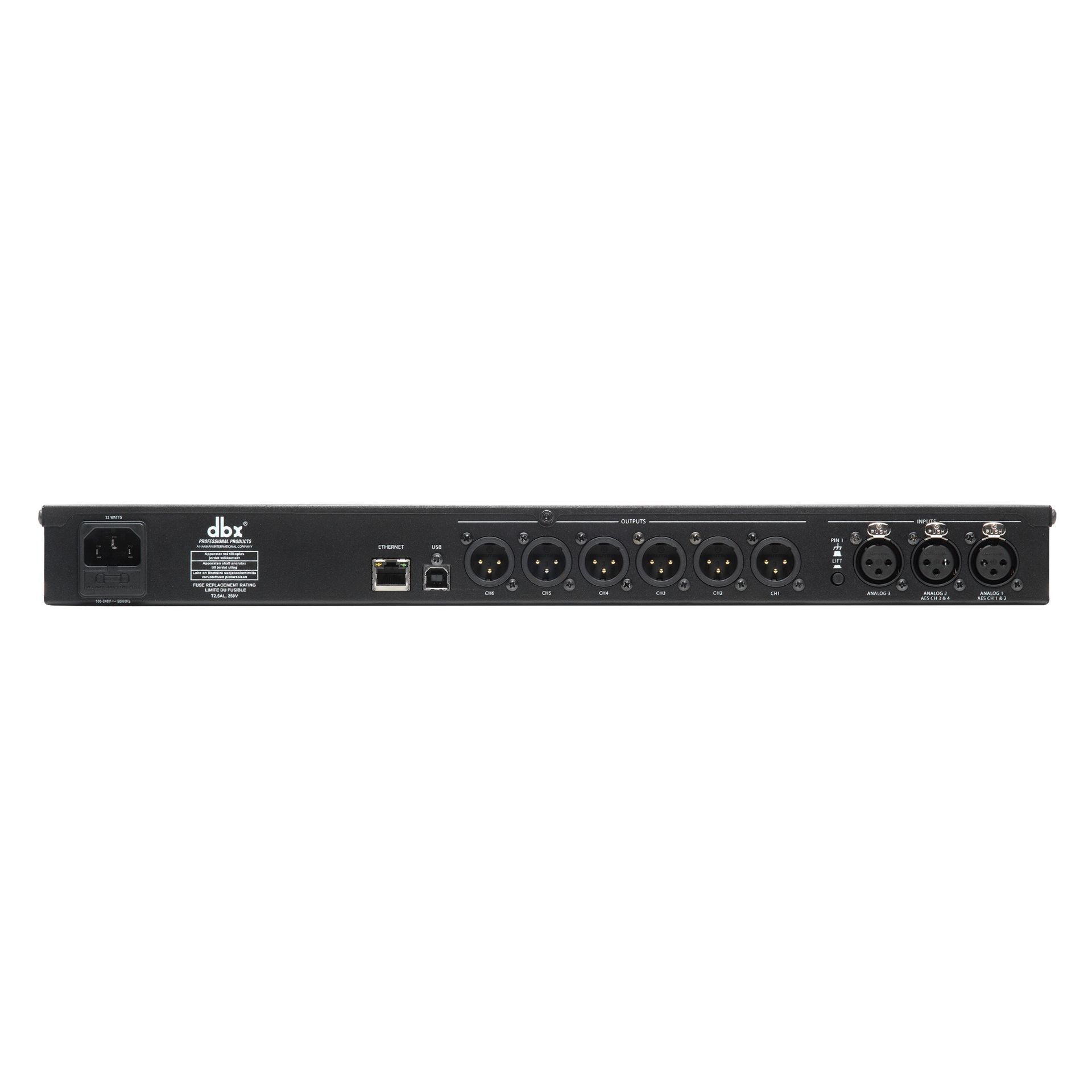

Network-based control via iOS, Android, Mac, and Windows lets you adjust settings from anywhere in the room—soundcheck from the stage, fine-tune from the monitor position, or dial in corrections from the audience. The processor accepts three analog line inputs plus two AES digital inputs on shared connectors, routes audio through six XLR line outputs, and includes a dedicated RTA microphone input for rapid on-the-fly system analysis and tuning.

Key Features

  • 19" rackmount format with 1.75" height and 8.0" depth for standard AV installations
  • Supports full-range through mono 6-way loudspeaker crossover configurations
  • 31-Band Graphic EQ plus 12-Band Parametric EQ with narrow notch capabilities for precise room correction
  • Up to 1000 ms alignment delay per output channel for phase-coherent multi-zone coverage
  • Maximum input level +28 dBu; maximum output level +22 dBu
  • Frequency response 20 Hz – 20 kHz (±0.5 dB) with 114 dB unweighted A/D dynamic range
  • Low power consumption at 18 W with universal 100–240 VAC 50/60 Hz operation
  • RTA mic input for automated system measurement and optimization

The VENU360 combines transparent signal processing with field-proven loudspeaker management, making it essential gear for anyone running a PA system that needs to perform reliably across different rooms and road conditions.

More Information
Condition New
Country of Manufacture China
Reviews
Write Your Own Review
You're reviewing: dbx DriveRack VENU360 Complete Loudspeaker Management System
Your Rating:
loader
Loading...

You submitted your review for moderation.

This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.

At a Glance

The dbx DriveRack VENU360 is a rackmount loudspeaker processor that handles crossover routing, EQ, delay alignment, and RTA measurement for live venues and touring rigs. Built for sound engineers and system techs who need rock-solid, transparent processing with minimal latency—it keeps your PA phase-coherent across multiple zones and handles real-time tuning from mobile devices anywhere in the room. Choose it for bulletproof reliability on the road, installed venues, or any multi-zone coverage where studio-grade signal integrity matters and downtime doesn't fit the budget.

Who This Is For

Best suited for Live Performance, Installed Systems, Touring, Multi-Zone Coverage
Tonal character Transparent processing, phase-coherent, precise room correction, minimal latency, studio-grade signal handling
Less specialized for Home Recording, Practice (it will do it; instruments voiced for that style do it more easily)
Skill level Intermediate / Advanced / Professional

Frequently Asked Questions

What inputs and outputs does the VENU360 have?

The unit provides three analog line inputs plus two AES digital inputs on shared connectors, and six XLR line outputs. It also includes a dedicated RTA microphone input for system measurement and tuning.

Can I control this remotely during a show or installation?

Yes. Network-based control is available via iOS, Android, Mac, and Windows, allowing real-time adjustment and monitoring from anywhere in the venue or installation space.

What kind of room correction and crossover options does it offer?

The VENU360 includes a 31-Band Graphic EQ plus 12-Band Parametric EQ with narrow notch capabilities for precise room correction, and supports full-range through mono 6-way loudspeaker crossover configurations. Up to 1000 ms alignment delay per output channel enables phase-coherent multi-zone coverage.

How much latency does this introduce into my signal chain?

Latency is 2.57 ms at 48 kHz or 2.28 ms at 96 kHz, keeping analog and digital signals phase-coherent across your system.

What is the frequency response and dynamic range?

Frequency response is 20 Hz – 20 kHz (±0.5 dB). The 24-bit A/D converter delivers 117 dB A-weighted dynamic range and 114 dB unweighted, ensuring transparent signal capture.
