What does passive design mean, and why does it matter?

Passive means the PB48 has no active electronics or power supply—it simply routes audio through its jacks and contacts with zero coloration or noise injection. This transparent signal path preserves your tone and clarity on every patch, making it ideal for studios and live systems where audio integrity is non-negotiable.

Can I use both balanced and unbalanced cables with the PB48?

Yes. All 48 jacks are 1/4 inch phone jacks that accept both balanced and unbalanced cables, giving you flexibility to integrate different types of equipment into one patch bay.

What is normalling, and how does it work on this unit?

Normalling sets a default signal path so that when a patch cable is not inserted, audio passes through automatically. The PB48 lets you choose between half-normalled and de-normalled operation on a per-module basis, so you can customize default routing for each section of your rig.

How much rack space does the PB48 need?

The unit occupies only 1.75 inches of rack height and extends 2.6 inches deep, making it suitable for tight or compact installations in studios, touring rigs, or permanent live-sound setups.

Will the contacts stay clean over time?

The jacks use nickel-silver, self-cleaning contacts that resist oxidation and maintain consistent connection integrity even with repeated patching and repatching over years of use.

Do I pay sales tax on this order?

Sales tax is collected only on orders shipped to California; orders shipped to any other US state are not charged sales tax at checkout when you buy direct from our website. At a typical 7% rate that is an estimated $13 less at checkout than the same listed price on a marketplace, which collects sales tax as the facilitator in most states. Buyers remain responsible for any use tax their state applies. Free US shipping and 30-day returns are included.

dbx PB48 48-Point Patch Bay

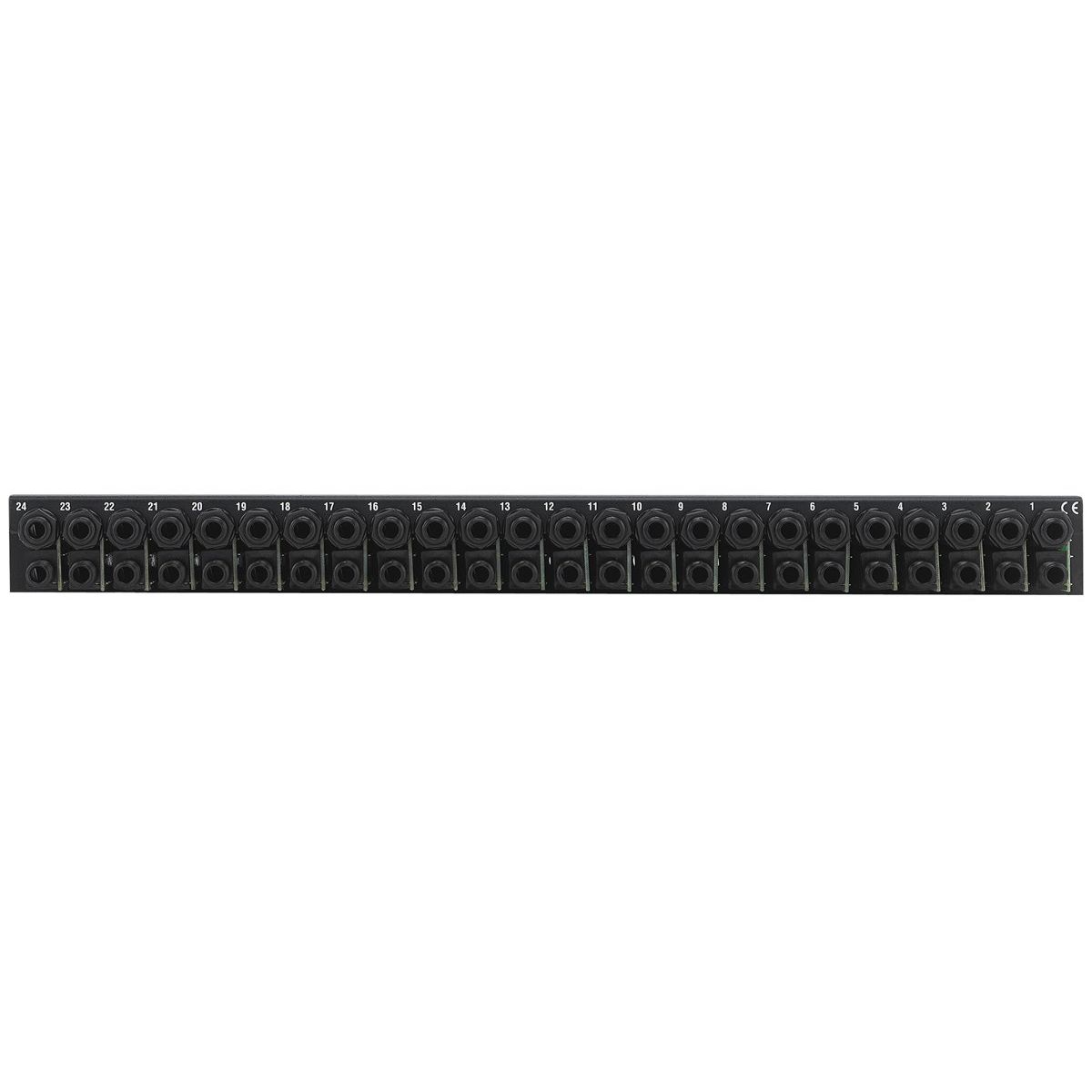

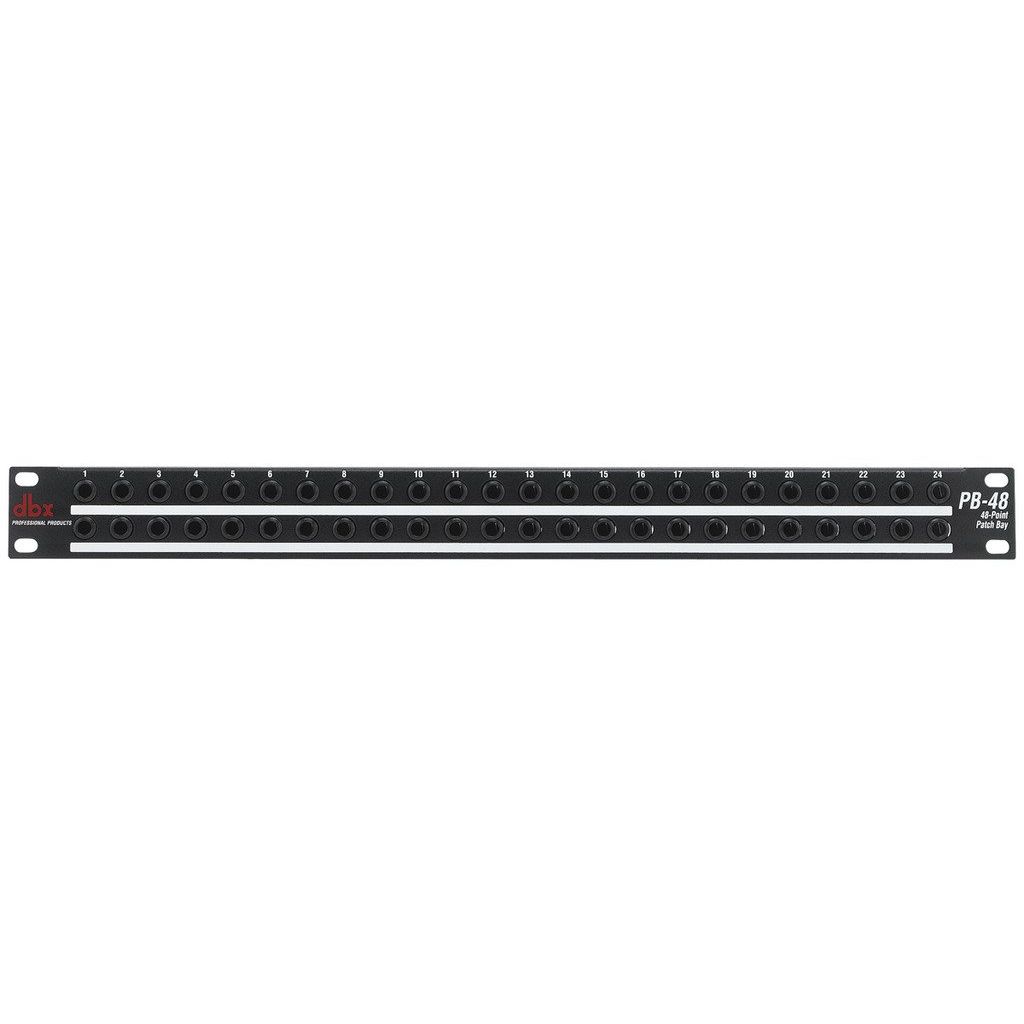

The dbx PB48 is a compact, professional-grade patch bay built for live sound rigs and studios that demand reliable signal routing without bulk or complexity. This passive unit slots seamlessly into a standard 19-inch rack, offering transparent audio paths and the flexibility to reconfigure your signal flow on the fly. Its straightforward design and solid construction make it the kind of workhorse that disappears into the background while handling everything you route through it.

Design & Build Quality

The chassis occupies just 1.75 inches of rack height and extends only 2.6 inches deep, making it ideal for tight installations and mobile rigs. Each of the 48 jacks features nickel-silver, self-cleaning contacts that resist oxidation and ensure consistent connection integrity through endless patching cycles on the road and in the venue.

Normalling Configuration & Connectivity

All 1/4 inch phone jacks accept both balanced and unbalanced cables, and the normalling scheme is user-configurable between half-normalled and de-normalled operation, giving you full control over default signal paths. This passive design requires no power supply, eliminating one more potential failure point from your setup.

Key Features

48 patch points arranged in 2 rows of 24
1/4 inch phone jacks, balanced or unbalanced compatible
Nickel-silver contacts with self-cleaning design
Half-normalled or de-normalled configuration—user selectable
Compact 1.75" H × 19" W × 2.6" D form factor
Standard 19-inch rack mounting
Per-module dimensions 1.4" H × 0.6" W × 2.6" D
Completely passive—no active electronics or power requirements

The PB48 delivers the transparent, no-compromise signal routing that touring systems and professional sound operations depend on, with the durability and ease of use that justify its place in any serious live or studio signal chain.

Condition	New
Country of Manufacture	China

Best suited for	Studio Sessions, Live Performance, Home Recording
Tonal character	Transparent, neutral, passive design, low-noise signal path
Skill level	Intermediate / Advanced / Professional
