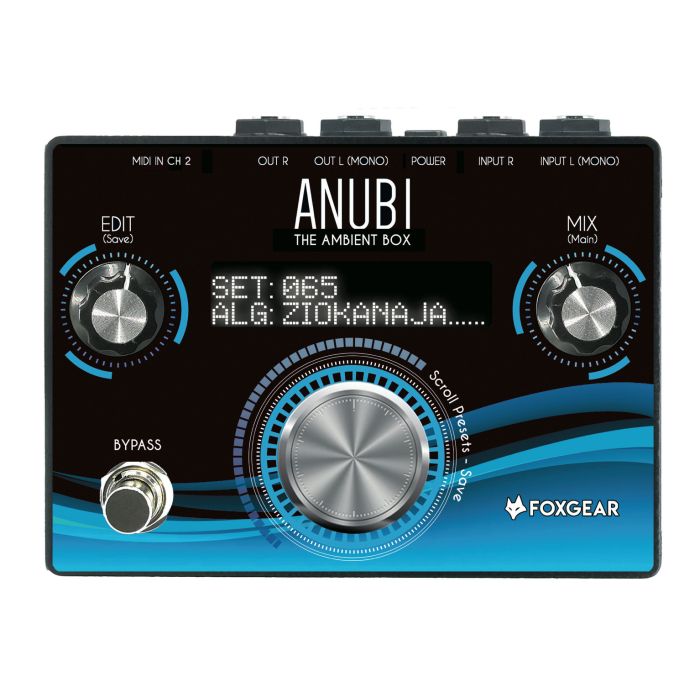

FoxGear Anubi Ambient Box Reverb Delay Chorus Multi-Effects Pedal

FoxGear Anubi Ambient Box Reverb Delay Chorus Multi-Effects Pedal

The Anubi Box is a compact, pedalboard-friendly effects processor that delivers studio-grade reverb, delay, and modulation algorithms in a footprint measuring just 120mm × 90mm × 30mm. Its 100% analog signal path combined with FV-1 digital processing creates lush, dimensional textures without sacrificing transparency. Built for integration into either a pedalboard or amplifier FX loop, this unit handles ambient textures and modulation effects with equal finesse.

Design & Build Quality

The Anubi maintains a minimal form factor at 0.3kg with Class A buffered bypass and relay switching, ensuring tight integration into any signal chain. Housed in a durable enclosure, it accepts standard 9–12VDC power (negative TIP, included supply) and draws under 100mA, making it practical for shared power supplies on larger pedalboards.

Signal Processing & Control

A stereo engine processes both input and output with selectable analog or digital programmable mix, while an LCD display and full MIDI interface enable remote preset and expression control via any MIDI pedalboard or looper. The unit supports up to 16 MIDI programmable channels, allowing seamless integration into complex switching systems.

Key Features

• 16 Algorithms covering Reverb, Delay, Chorus, Phaser, Tremolo, Leslie, Flanger, and combination modes
• 128 Presets Available with 16 MIDI Programmable Channels
• 100% Analog Signal Path with FV-1 Digital Processor
• Stereo Engine for input and output processing
• Class A Buffered Bypass with Relay Switching
• LCD Display for real-time parameter display and editing
• Analog and Digital Programmable Mix with Kill Dry assignable per preset
• MIDI Interface supporting preset selection and expression control (assignable to delay time, levels, speed, pitch shifting)
• Compact dimensions: 120mm W × 90mm L × 30mm H; Weight 0.3kg
• Input/Output: Mono IN (L) / Mono OUT (L) accepting mono input with stereo output capability
• Input Impedance ≤1M Ohm; Output Impedance ≤10K Ohm
• Power: 9–12VDC (negative TIP), consumption <100mA; power supply included

The Anubi Box bridges the gap between pedalboard convenience and processor flexibility, offering deep ambient textures and dynamic modulation control in a format that suits both compact and expanded rigs.
