JBL 8124 4" Full-range Open- Back Ceiling Spk, 6W
Description

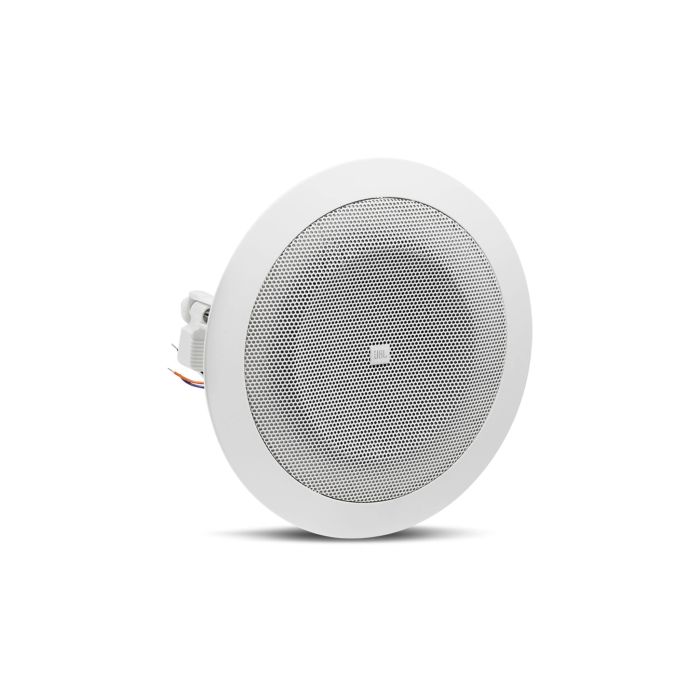

JBL 8124 4" Full-Range Open-Back Ceiling Speaker, 6W
The JBL 8124 is a compact ceiling-mounted speaker built for distributed audio systems in venues, bars, restaurants, and live-sound installations. Its lightweight construction and blind-mount dog-ears enable quick, secure placement in drop ceilings or open structures, while the sculpted grille maintains a finished appearance in any environment. This is professional-grade equipment designed for clarity and consistent coverage across medium-sized spaces without fuss or complicated rigging.
Audio Performance
The 4-inch full-range driver delivers smooth midrange and treble response across a 60 Hz–18 kHz frequency range, handling speech, background music, paging, and light program material with transparency. A 130° conical coverage pattern ensures even sound distribution without dead zones, while 93 dB sensitivity (1W @ 1M) provides usable output with modest amplifier power—no need to drive the amp hard to fill a room.
Installation & Integration
The 8-ohm impedance integrates directly into standard audio systems, with 70V/100V transformer taps rated at 6W, 3W, 1.5W (0.75W at 70V) for flexible system design and reliable long-run coverage. Bare wire termination and dog-ear mounting hardware enable straightforward installation in retrofit or new-construction scenarios, so you get audio coverage up fast without special tools or expertise.
Key Features
- 4-inch full-range driver
- Frequency response: 60 Hz – 18 kHz
- Sensitivity: 93 dB (1 kHz – 8 kHz), 1W, 1M
- 8-ohm impedance
- 70V/100V transformer taps: 6W, 3W, 1.5W (0.75W at 70V)
- 130° conical coverage pattern
- Dimensions: 8.1" diameter × 3.5" depth (206mm × 89mm)
- Weight: 2.5 lb (1.2 kg)
- Open-back design
- Dog-ears for blind-mount installation
- Included sculpted grille
- Bare wire termination
The JBL 8124 combines proven JBL driver engineering with practical installation features, making it a dependable choice for distributed audio systems requiring compact, ceiling-mounted coverage that you can count on night after night.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL 8124 is a compact 4-inch ceiling speaker built for commercial installations, retail spaces, offices, and background music distribution where clear, even coverage matters more than high output. Installers and venue managers choose it for its tool-free dog-ear mounting, flexible 70V/100V transformer taps, and smooth midrange that handles speech and ambient audio without coloration. It's not designed for live concert sound or bass-heavy playback, but delivers reliable, professional-grade clarity in distributed audio systems at a budget-friendly price.
Who This Is For
Great for
- ✓ Commercial installations
- ✓ Background music distribution
- ✓ Paging systems
- ✓ Retail/office ambient audio
Not the best pick for
- – Live concert sound
- – High-SPL environments
- – Bass-heavy music
Skill level: Beginner · Intermediate · Professional
Frequently Asked Questions
What does the 70V/100V transformer mean, and do I need it?
The JBL 8124 includes switchable transformer taps rated at 6W, 3W, 1.5W on 8-ohm circuits, or 0.75W on 70V lines. Use the transformer tap that matches your system's voltage and power requirements; many commercial installations run 70V to minimize wire gauge and power loss over distance.
Is this speaker suitable for outdoor or high-volume environments?
No. The 8124 is designed for indoor commercial and residential installations—retail, offices, background music, and paging. It is not rated for outdoor use, live concerts, high-SPL environments, or bass-heavy music.
How difficult is installation?
Installation is straightforward. The speaker features blind-mount dog-ears that secure directly into drop ceilings or open structures without tools, and bare wire termination connects to standard audio systems. Dimensions are 8.1 inches diameter by 3.5 inches depth, fitting most ceiling cavities.
What kind of audio does this speaker handle best?
The 4-inch full-range driver excels at speech, background music, and paging across its 60 Hz–18 kHz range. Smooth midrange and clear treble ensure intelligible vocals and even coverage without dead zones across medium-sized rooms.
How does the 8124 compare to similar ceiling speakers?
The JBL 8124 competes with models like the Ceiling Acoustics CA-4, Bose FreeSpace 3, and Community D8. The 8124 offers JBL's proven driver engineering, flexible transformer taps, and lightweight open-back design at a lower price point, though final choice depends on your system voltage, aesthetic requirements, and coverage needs.
