JBL 8128 8" Full-range Open- Back Ceiling Spk, 6W
Description

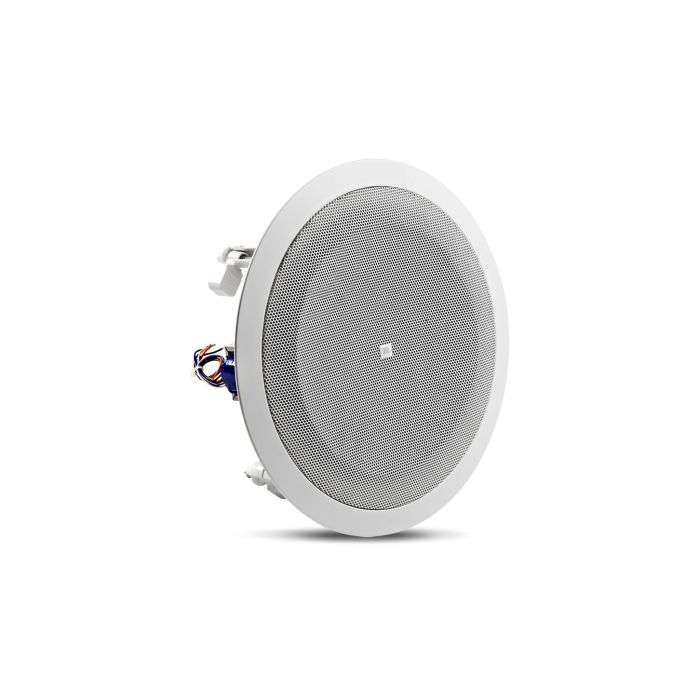

JBL 8128 8" Full-Range Open-Back Ceiling Speaker
The JBL 8128 is a compact, lightweight ceiling speaker built for distributed audio systems where installation simplicity and adaptability are critical. Its open-back design eliminates the need for a mounting enclosure, making it practical for retrofit work in drop ceilings, soffits, and tight architectural spaces where traditional speakers won't work. The sculpted grille and compact 11.3-inch diameter profile blend seamlessly into modern interiors while maintaining consistent coverage across a room.
Audio Performance & Coverage
This full-range driver delivers clear, intelligible output across a 50Hz–16kHz frequency range with a sensitivity rating of 97 dB (1W, 1M), making it efficient for background music, paging, and speech reinforcement in installed systems. The 90° conical coverage pattern ensures even sound distribution in typical ceiling mounting scenarios without hot spots or dead zones.
Installation & Power Flexibility
The JBL 8128 supports both constant-voltage (70V/100V taps at 6W, 3W, 1.5W) and low-impedance operation (8-ohm at 25W capacity), allowing it to integrate into virtually any installed audio system architecture. Bare-wire termination and the lightweight construction (3 lbs) make ceiling mounting straightforward—no additional structural support or dedicated enclosure work required.
Key Features
- 8-inch (200mm) full-range driver
- Frequency response: 50Hz–16kHz
- Sensitivity: 97 dB (1 kHz–8 kHz), 1W, 1M
- 90° conical coverage pattern
- Power capacity: 25W (8-ohm)
- 70V/100V taps: 6W, 3W, 1.5W (0.75W at 70V only)
- 8-ohm impedance
- Open-back design—no enclosure required
- Dimensions: 11.3 in (287mm) diameter × 4.1 in (105mm) depth
- Weight: 3 lb (1.4 kg)
- Bare-wire termination
- Includes sculpted grille
The JBL 8128 combines JBL's proven engineering with practical design that makes ceiling speaker installation fast, reliable, and cost-effective for installed sound and venue applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The JBL 8128 is an 8-inch full-range ceiling speaker built for commercial spaces, retail, hospitality, and paging systems where flexibility and clean aesthetics matter. Its open-back design needs no enclosure, fitting easily into drop ceilings and tight architectural spaces, while the 90° conical pattern delivers consistent, intelligible coverage without dead zones. Choose it for dependable, low-maintenance background audio and announcements in venues, offices, and installations where traditional speakers can't fit.
Who This Is For
Great for
- ✓ Commercial/Install Audio
- ✓ Background Music
- ✓ Paging Systems
- ✓ Retail & Hospitality
Not the best pick for
- – Live Performance
- – Studio Monitoring
- – High-Fidelity Music Playback
Skill level: Beginner · Intermediate · Advanced · Professional
Frequently Asked Questions
Does the JBL 8128 work in any ceiling type?
Yes. The open-back design eliminates the need for a separate enclosure, so it installs directly into drop-ceiling tiles, soffits, and other architectural spaces. Its lightweight 3 lb construction requires no special structural support.
What audio system can I connect it to?
The JBL 8128 supports both constant-voltage (70V/100V at 6W, 3W, or 1.5W taps) and low-impedance (8-ohm) operation at up to 25W, making it compatible with virtually any commercial audio system architecture.
Is this speaker suitable for music playback or DJ use?
No. The JBL 8128 is designed for background music, paging, retail announcements, and hospitality applications. It is not recommended for live performance, studio monitoring, or high-fidelity music playback.
What is the coverage pattern and sound distribution?
The 90° conical coverage pattern ensures even sound distribution across a typical ceiling mounting scenario without hot spots or dead zones. Sensitivity is rated at 97 dB (1W, 1M) for efficient, consistent output.
What's included and how do I connect it?
The speaker includes a sculpted grille and uses bare-wire termination for direct connection to your constant-voltage or low-impedance audio line. No additional adapters or enclosure hardware are required.
