JBL AC15 Ultra Compact 2-Way Loudspeaker with 1 x 5.25 LF White SINGLE
Share
In stock
- SKU
- AC15-WH
Description

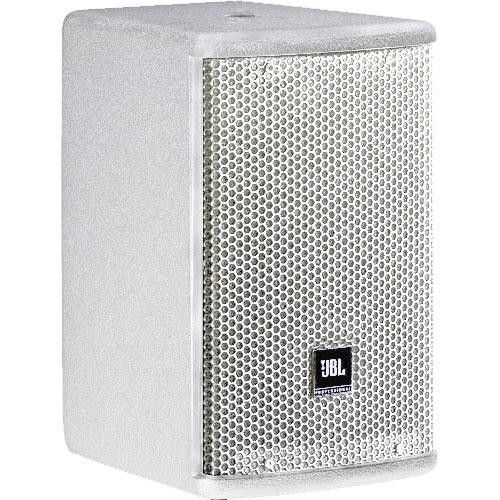

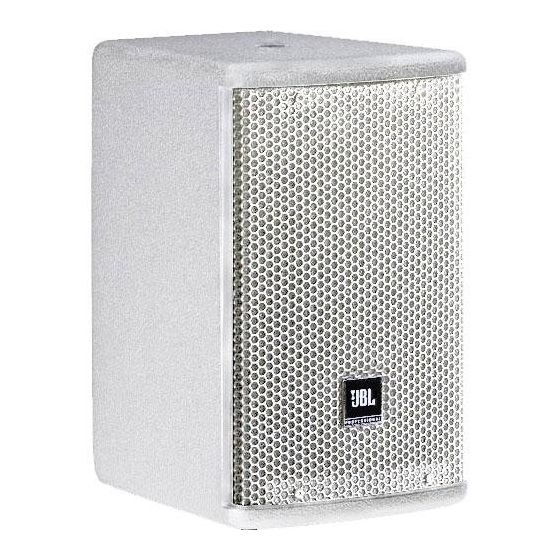

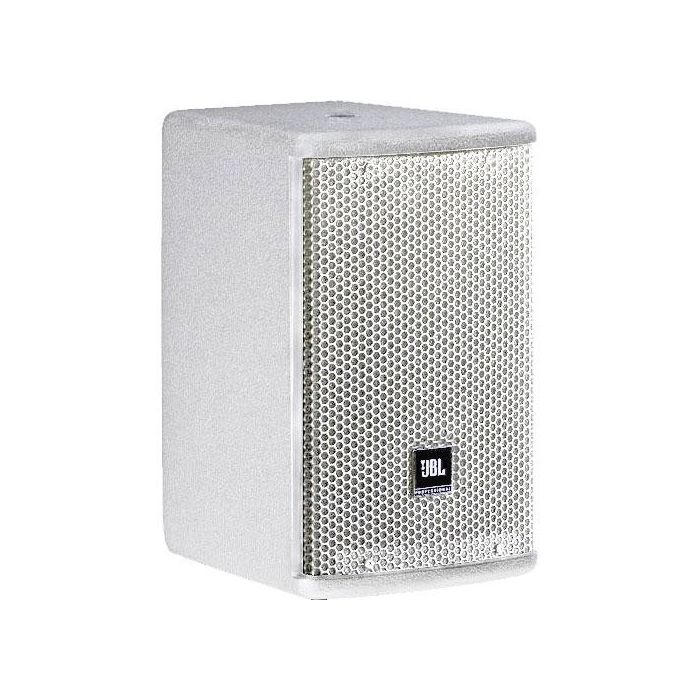

JBL AC15 Ultra Compact 2-Way Loudspeaker with 1 x 5.25 LF White
The JBL AC15 is a genuinely portable 2-way active speaker system engineered for consistent, articulate output in compact installations. Its compact footprint—just 9.5 x 5.9 x 7.0 inches—combined with rugged construction makes it a practical choice for fixed or mobile audio applications where space is constrained but professional performance is required.
Design & Build Quality
The enclosure is constructed from multi-ply hardwood with a durable textured DuraFlex coating, offering genuine resistance to the wear and handling that mobile deployments demand. Dual Neutrik NL4 connectors plus screw terminals provide flexible input options, while built-in attachment points accommodate an optional U-bracket for mounting versatility.
Acoustic Performance & Power Handling
The speaker delivers 86 dB SPL at 1W/1m with a frequency range of 90 Hz to 18 kHz (±3 dB), covering the full spectrum needed for speech and music reinforcement in venues and live settings. Rated continuous power handling of 150W with peak capacity at 600W ensures headroom for dynamic program material, while the 108 dB maximum SPL maintains clean output without distortion for moderate-sized rooms and outdoor setups.
Key Features
- 1" dome tweeter with 90° x 90° coverage pattern
- 5.25" Symmetrical Field Geometry (SFG™) LF transducer with copper-capped pole piece
- Copper-clad aluminum edge-wound 1.5" voice coil
- System sensitivity: 86 dB SPL/1W/1m
- Frequency response: 90 Hz – 18 kHz (±3 dB)
- Power rating: 150W continuous / 300W program / 600W peak
- Maximum SPL: 108 dB (1m)
- 16-ohm impedance
- Dual Neutrik NL4 connectors plus screw terminals
- Compact dimensions: 241.3 x 150.3 x 177.8 mm
- Weight: 4.7 kg (10.5 lb)
- Mil-Std 810 and IPx3 (IEC529) environmental ratings
This single unit delivers professional-grade 2-way performance in a form factor built for touring, backline support, and installed sound work—where dependable output and road-tested durability matter most.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC15 is a compact 2-way active speaker (5.25" woofer, 1" tweeter) built tough for live sound, install work, and gigging in tight spaces. Its rugged hardwood enclosure, articulate midrange, and 108 dB max output handle speech reinforcement and music in moderate venues without breaking down or taking up real estate. Choose it when you need road-ready, professional performance that doesn't demand a truck to move.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Gigging
- ✓ Install Audio
- ✓ Speech Reinforcement
Not the best pick for
- – High-SPL Large Venues
- – Full-Range Studio Monitoring
Skill level: Intermediate · Advanced · Professional
Frequently Asked Questions
What kind of venues and room sizes is the AC15 designed for?
The AC15 is rated for moderate-sized venues and compact installations—speech reinforcement, small gigging spaces, and install audio where full-range large-venue PA systems would be overkill. Its 108 dB maximum SPL provides clean output without distortion in these settings, but it is not designed for high-SPL large venues or full-range studio monitoring.
How portable and durable is this speaker for touring and field use?
At 10.5 lb and 9.5 x 5.9 x 7.0 inches, the AC15 is genuinely portable. It features a multi-ply hardwood enclosure with textured DuraFlex coating for resistance to handling wear, dual Neutrik NL4 connectors, screw terminals, and Mil-Std 810 and IPx3 environmental ratings—all built to survive mobile deployments and repeated setup/teardown.
What inputs and mounting options does it have?
The AC15 offers dual Neutrik NL4 connectors plus screw terminals for flexible input wiring. Built-in attachment points support an optional U-bracket for wall or stand mounting, making it adaptable to fixed installs, mobile rigs, or near-field monitoring positions.
How does the AC15 compare to similar compact active speakers like the EV ZXA1 or QSC K8.2?
The AC15 offers a 5.25" woofer with SFG™ transducer design and a 1" dome tweeter in a sub-11 lb package, with 86 dB sensitivity and 90 Hz low-end reach. It sits alongside the ZXA1 and K8.2 as a rugged, portable choice for live sound and install work, differentiated by its compact footprint and JBL's transducer engineering.
Does the AC15 come with a U-bracket or mounting hardware?
The AC15 has built-in attachment points that accommodate an optional U-bracket for mounting; the bracket is sold separately. Screw terminals and dual Neutrik NL4 connectors provide flexible wiring options for permanent or temporary installations.
