JBL AC16 Ultra Compact 2-Way Loudspeaker with 1 x 6.5 LF White
Share
In stock
- SKU
- AC16-WH
Description

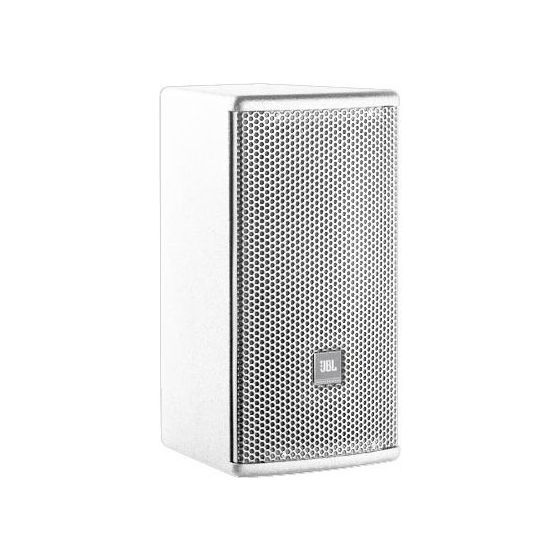

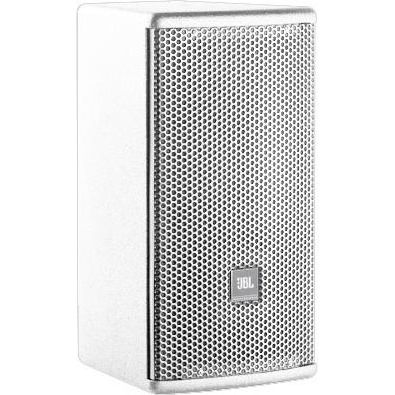

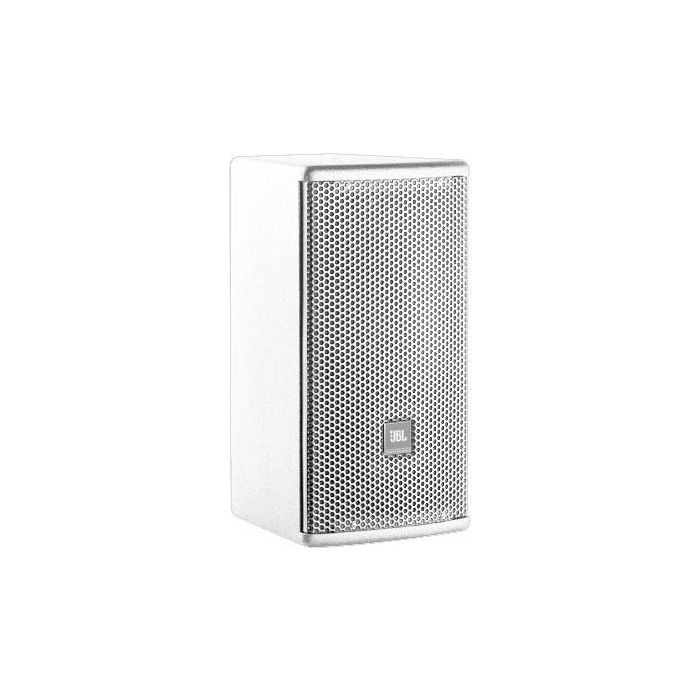

JBL AC16 Ultra Compact 2-Way Loudspeaker with 1 x 6.5" LF (White)
The JBL AC16 delivers professional sound in a surprisingly compact footprint, making it an efficient choice for gigging musicians, live sound rigs, and installation applications where space matters. This genuine unit pairs a 6.5-inch woofer with a 1-inch compression driver tweeter, producing clear highs and punchy lows that perform well above its class. In honest condition with typical signs of use, this speaker retains all the sonic performance and build quality expected from JBL while offering exceptional value for working players and sound engineers.
Live Sound Performance & Coverage
The AC16 operates across a 55 Hz to 20 kHz frequency range (–10 dB), with a tighter ±3 dB response from 65 Hz to 18 kHz for controlled, balanced output on stage or in the studio. Its 90 x 90 coverage pattern and PT Waveguide design ensure consistent sound distribution across the room, while the 16-ohm impedance and 160 W continuous / 320 W program / 640 W peak power handling make it suitable for both passive and powered setups in any configuration.
Portability & Road-Ready Construction
Weighing just 7.2 kg (15.8 lb) with dimensions of 381 x 199.4 x 226.1 mm, the AC16 moves easily between venues without sacrificing rigidity or sonic integrity. Dual Neutrik NL4 connectors plus screw terminals provide flexible wiring options for fast setup and breakdown, and its IPx3 environmental rating per IEC529 offers protection against moisture and dust in varied venue conditions and outdoor gigs.
Key Features
- 1-inch exit compression driver
- 165 mm (6.5 inch) LF transducer
- Frequency range: 55 Hz – 20 kHz (–10 dB)
- Frequency response: 65 Hz – 18 kHz (±3 dB)
- 160 W continuous / 320 W program / 640 W peak power handling
- 16-ohm impedance
- 90 x 90 coverage pattern with PT Waveguide
- Dual Neutrik NL4 connectors plus screw terminals
- Dimensions: 381.0 x 199.4 x 226.1 mm (15.0 x 7.8 x 8.9 in)
- Weight: 7.2 kg (15.8 lb)
- IPx3 environmental rating per IEC529
This versatile, road-tested performer works equally well as a floor monitor on stage, nearfield studio reference, or compact PA speaker—a practical choice that combines professional engineering with genuine portability for working rigs.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC16 is a compact 2-way loudspeaker with a 6.5-inch woofer and 1-inch compression driver, delivering professional sound in a 7.2 kg footprint suitable for live monitors, portable PA, or installation work. Its 90×90 coverage pattern, balanced frequency response, and dual Neutrik connectors make it road-ready and easy to integrate into any venue setup. Choose it for dependable, compact reinforcement that doesn't compromise on sonic clarity or build quality.
Frequently Asked Questions
What's the frequency response and coverage pattern?
The AC16 operates from 55 Hz to 20 kHz (–10 dB), with a controlled ±3 dB response between 65 Hz and 18 kHz. Its 90×90 coverage pattern and PT Waveguide design deliver even sound distribution across mid-sized rooms and venue spaces.
Can I use this speaker in both passive and powered setups?
Yes. The AC16 handles 160 W continuous, 320 W program, and 640 W peak power at 16-ohm impedance, and includes dual Neutrik NL4 connectors plus screw terminals for flexible wiring in either configuration.
How portable is it, and does it handle outdoor or damp environments?
At 7.2 kg (15.8 lb) and compact dimensions of 381×199.4×226.1 mm, the AC16 is genuinely portable. Its IPx3 environmental rating provides moisture and dust protection suitable for varied venue conditions.
What are the typical uses for this speaker?
The AC16 excels as a floor monitor for live sound, a nearfield studio reference monitor, or a compact PA speaker for smaller venues and installations where space and portability are priorities.
