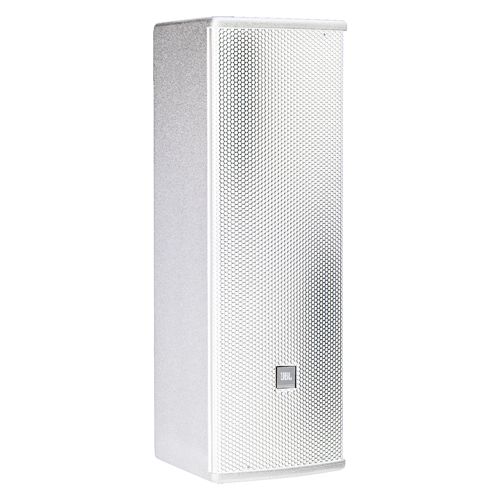

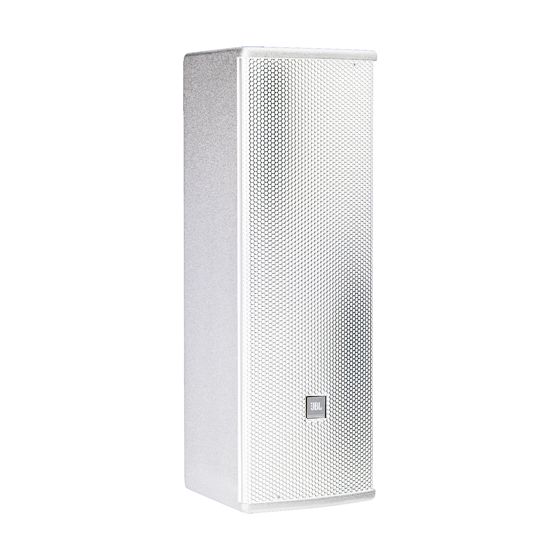

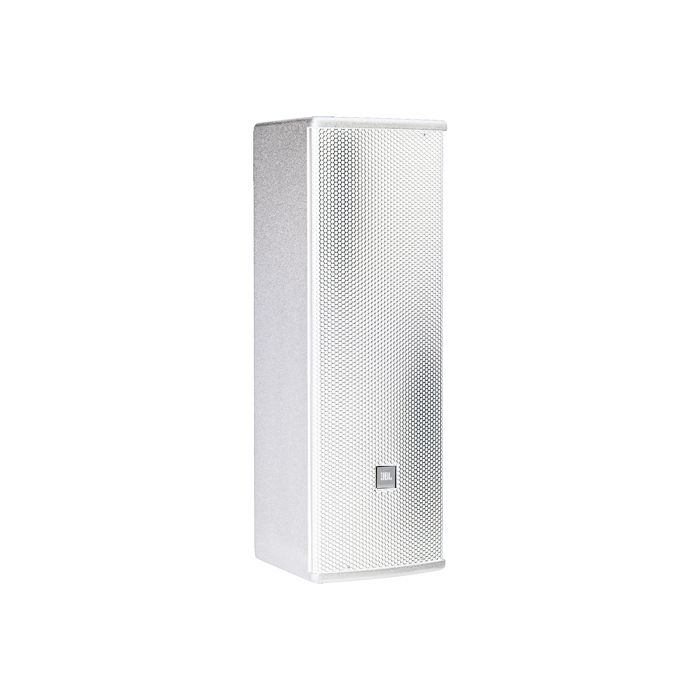

JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF White
Share
In stock
- SKU
- AC26-WH
Description
JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 LF White
The AC26 is a remarkably compact and lightweight two-way speaker that delivers serious stage volume without the bulk. Its portable 11 kg footprint and 539.8 x 199.4 x 226.1 mm dimensions slip into tight venues and club setups, while the robust multi-ply hardwood plywood construction and white finish hold up through touring wear and deliver the aesthetic flexibility to blend into any performance space.
Live Sound & Projection
This speaker couples dual 165 mm low-frequency drivers with a 25 mm compression driver to push 92 dB SPL sensitivity at 1W/1m and a maximum SPL of 117 dB at 1 meter—enough headroom for gigging ensembles and tight rooms. The 2.2 kHz crossover blends the lows and highs seamlessly, while 90° horizontal and vertical coverage patterns maintain even tonal balance across the floor, from front row to back wall.
Built for the Road
Built from 12 mm and 15 mm exterior-grade multi-ply hardwood plywood with a white DuraFlex finish, the AC26 handles the rigors of transport and setup without fatigue. The powder-coated 16 gauge perforated steel grille with acoustically transparent foam backing protects the drivers through repeated gigs while preserving the driver dynamics and tonal character you rely on.
Key Features
- Frequency Range (-10 dB): 55 Hz – 20 kHz
- Frequency Response (+/-3 dB): 70 Hz – 18 kHz
- System Sensitivity: 92 dB SPL/1W/1m
- Rated Maximum SPL (1m): 117 dB
- Long-Term Power Rating: 180 W continuous / 360 W program / 720 W peak
- AES Standard Power Rating: 350 W
- System Nominal Impedance: 8 Ohms
- 2 x JBL 226J 165 mm (6.5 in) low-frequency drivers with 50 mm voice coils
- 1 x 2414H 25 mm (1 in) compression driver
- 2.2 kHz crossover frequency
- Neutrik Speakon NL4 connectors (dual, wired in parallel) plus barrier strip terminals
- 90° horizontal and vertical coverage; Mil-Std 810 and IPx3 environmental ratings
The AC26 punches through with presence and clarity in a package built for the demands of working musicians and touring professionals.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | Mexico |
Reviews
At a Glance
The JBL AC26 is an ultra-compact two-way PA speaker delivering 117 dB SPL in a 11 kg, road-ready package with dual 6.5 inch woofers and a 25 mm compression driver. Built for live performers and sound techs running small venues, portable rigs, and tight installations, it combines professional durability (hardwood plywood, powder-coated steel grille) with smooth 90° coverage and balanced midrange clarity that cuts through live environments. Choose it when you need a lightweight workhorse that doesn't sacrifice output or tonal reliability for portability.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Small venue PA
- ✓ Portable sound reinforcement
Not the best pick for
- – Studio monitoring
- – Home audio
Frequently Asked Questions
What are the power handling and impedance specs?
The AC26 handles 180 W continuous / 360 W program / 720 W peak, with an AES standard power rating of 350 W. It is wired at 8 ohms nominal impedance and includes dual Neutrik Speakon NL4 connectors (wired in parallel) plus barrier strip terminals.
How loud does this speaker get?
It delivers 92 dB SPL at 1W/1m sensitivity and reaches a maximum SPL of 117 dB at 1 meter, making it suitable for small venues, portable PA rigs, and portable sound reinforcement without distortion.
What size is it and how much does it weigh?
The AC26 measures 539.8 x 199.4 x 226.1 mm (roughly 21.3 x 7.8 x 8.9 inches) and weighs 11 kg (approximately 24 lbs), making it practical for installation in tight spaces and transport between venues.
What drivers does it use?
It features dual JBL 226J 165 mm (6.5 inch) low-frequency drivers with 50 mm voice coils and one 2414H 25 mm (1 inch) compression driver, crossed over at 2.2 kHz for smooth tonal integration.
Is it weather-resistant?
Yes—the AC26 is built from 12 mm and 15 mm exterior-grade multi-ply hardwood plywood with a white DuraFlex finish, and it carries Mil-Std 810 and IPx3 environmental ratings for durability in demanding installations.
